Superwinch 5500 LBS 12V DC 7/32in x 60ft Steel Rope S5500 Winch
Superwinch 5500 LBS 12V DC 7/32in x 60ft Steel Rope S5500 Winch
A$1,617.35
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The S5500 Winch continues Superwinch's dominance as the leader in trailer-specific winching. The S5500 trailer winch easily pulls 5,500 lbs powered by its 3.6 hp permanent magnet motor, and its all steel 3-stage planetary gear box. The S5500 includes a safety tinted protective cover which protects the cable, drum and operators fingers. The machined aluminum free-spool lever can also be operated easily by foot.
Product Overview
The S5500 Winch continues Superwinch's dominance as the leader in trailer-specific winching. The S5500 trailer winch easily pulls 5,500 lbs powered by its 3.6 hp permanent magnet motor, and its all steel 3-stage planetary gear box. The S5500 includes a safety tinted protective cover which protects the cable, drum and operators fingers. The machined aluminum free-spool lever can also be operated easily by foot.
Features and Benefits
- Rated Line Pull Of 5500 Lbs
- 5,500 lbs. capacity
- 3.6 Hp Permanent Magnet Motor Provides Dynamic Braking
- 3-Stage Planetary Gearing With 159:1 Ratio
- Sealed Solenoid

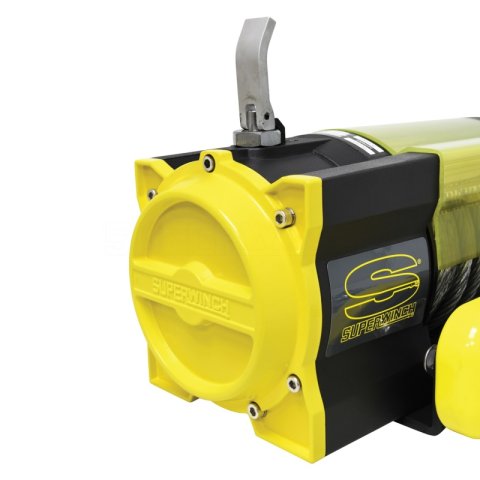

- Lever Style Freespool Allows Hand Or Foot Operation
- Steel Cut Gears For Better Engagement And Longevity
- Automatic load holding brake
- Stainless steel 2-way roller fairlead
- Wire Rope Measures 1/4 In. X 40 Ft.
- 30 ft. wire remote
Product Details
| Brake System: | Mechanical, Automatic Load Holding, Outside Drum |
|---|---|
| Can Ship By Ground Delivery: | Yes |
| Clutch: | Kick-n-flip |
| Color: | Yellow |
| Description: | S5500 Winch |

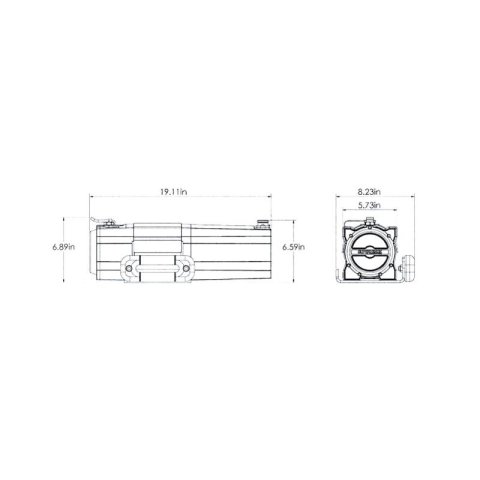

| Dimensions: | 19.1in L x 6.6in D x 8.2in H (485mm L x 167mm D x 208mm H) |
| Drum Diameter (in.): | 1.25 |
| Drum Length (in.): | 2.83 |
| EN Compliant: | No |
| Fairlead: | Strong roller-coaster fairlead/hawse hybrid |
| Finish: | Powder Coated |
| Gear Ratio: | 153:1 |
| Gear System: | 3-stage planetary |
| Line Speed: | 80 Amps Motor Draw/19 FPM (5.8 MPM) |
| Material: | Steel |
| Motor: | 3.6 HP, pemanent magnet motor, 12V DC |
| Mounting Bolt Pattern: | 4 bolt |
| Net. Weight: | 51 lbs (23.1kgs) |
| Part Number: | suw1455200 |
| Prop 65: | Yes |
| Rated Single Line Pull (Lbs): | 5500 |
| Rated Single Line Pull (lbs.): | 5500 |
| Remote Control: | 12 ft Rubber Sealed Hand-held |
| Remote Type: | Wire |
| Rope Length: | 9/32 in x 60 ft (7.14mm x 18.3m) |
| Rope Material: | Steel Wire |
| Solenoid: | VS4 (sealed submersible vented) |
| Title: | Superwinch S5500 Winch 1455200 |
| Type: | Automotive |
| Voltage: | 12V DC |
| WARNING CA Proposition 65 Message: | Cancer and Birth Defect |
| WARNING CA Proposition 65: | Yes |
| Warranty: | 2 Year Limited Manufacturer |
| Winch Hook: | Heavy-Duty, Clevis Pinned Latched |
| Winch Model: | S5500 |
| Winch Series: | S Series |
Application Summary
5;500 lbs; 12 VDC; 7/32 in x 60 ft steel rope; 30.5 ft handheld remote control; 3.6 Hp; mechanical brake; 3-stage planetary; 185:1 gear ratio; 2-way fairlead
Part Type
S5500-5500# Winch Discont. 2017 Wed Apr 04
Features
- 3-Stage Planetary Gearing With 159:1 Ratio
- 3.6 Hp Permanent Magnet Motor Provides Dynamic Braking
- 30 ft. wire remote
- 5,500 lbs. capacity
- Automatic load holding brake
- Lever Style Freespool Allows Hand Or Foot Operation
- Rated Line Pull Of 5500 Lbs
- Sealed Solenoid
- Stainless steel 2-way roller fairlead
- Steel Cut Gears For Better Engagement And Longevity
- Wire Rope Measures 1/4 In. X 40 Ft.
Specifications
- Product Attributes - UPC
- 22705006002
- Product Attributes - Brake
- Yes
- Product Attributes - Brand
- Superwinch
- Product Attributes - Notes
- Winch can be mounted with the 2-bolt or 4-bolt pattern.
- Product Attributes - Volts
- 12 V
- Product Attributes - Weight
- 51.000 lbs.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Winches
- Product Attributes - Power Out
- Yes
- Product Attributes - Drive Gear
- 3-stage planetary
- Product Attributes - Remote Type
- Wired
- Product Attributes - Winch Style
- Electric
- Product Attributes - Product Line
- Superwinch S Series Trailer Winches
- Product Attributes - Remote Style
- Hand-held
- Product Attributes - Free-Spooling
- Yes
- Product Attributes - Remote Included
- Yes
- Product Attributes - Winch Line Type
- Cable
- Product Attributes - Motor Horsepower
- 3.60 hp
- Product Attributes - Pull Rating (lbs.)
- 5,500 lbs.
- Product Attributes - Winch Fairlead Type
- Roller
- Product Attributes - Winch Line Included
- Yes
- Product Attributes - Winch Line Material
- Steel
- Product Attributes - Gear Reduction Ratio
- 185:1
- Product Attributes - Mounting Hole Quantity
- 6 holes
- Product Attributes - Winch Line Length (ft.)
- 60.00 ft.
- Product Attributes - Remote Cord Length (ft.)
- 30.00 ft.
- Product Attributes - Winch Line Diameter (in.)
- 9/32 in.
- Product Attributes - Conforms to J706 Standards
- No
- Product Attributes - Manufacturer's Part Number
- 1455200
- Product Attributes - Mounting Pattern Width (in.)
- 4.490 in.
- Product Attributes - Mounting Pattern Length (in.)
- 6.000 in.
Reference Information
| Brand Name/s | Superwinch |
|---|---|
| StreetFX SKU | suw1455200 |
| SFX Item ID | 4298257 |
| Supplier Item Code | 4298257 |
| Manufacturer SKU | 1455200 |
| Manufacturer UPC | 22705006002 |
| Alternative References | s5500, spw-1455200, SUP1455200, 12V, 7/32in, 60ft |
Brochures
Compatibility
5;500 lbs; 12 VDC; 7/32 in x 60 ft steel rope; 30.5 ft handheld remote control; 3.6 Hp; mechanical brake; 3-stage planetary; 185:1 gear ratio; 2-way fairlead
