Superwinch 4000 LBS 12V DC 3/16in x 50ft Steel Rope Winch2Go Steel Rope
Superwinch 4000 LBS 12V DC 3/16in x 50ft Steel Rope Winch2Go Steel Rope
A$1,029.77
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

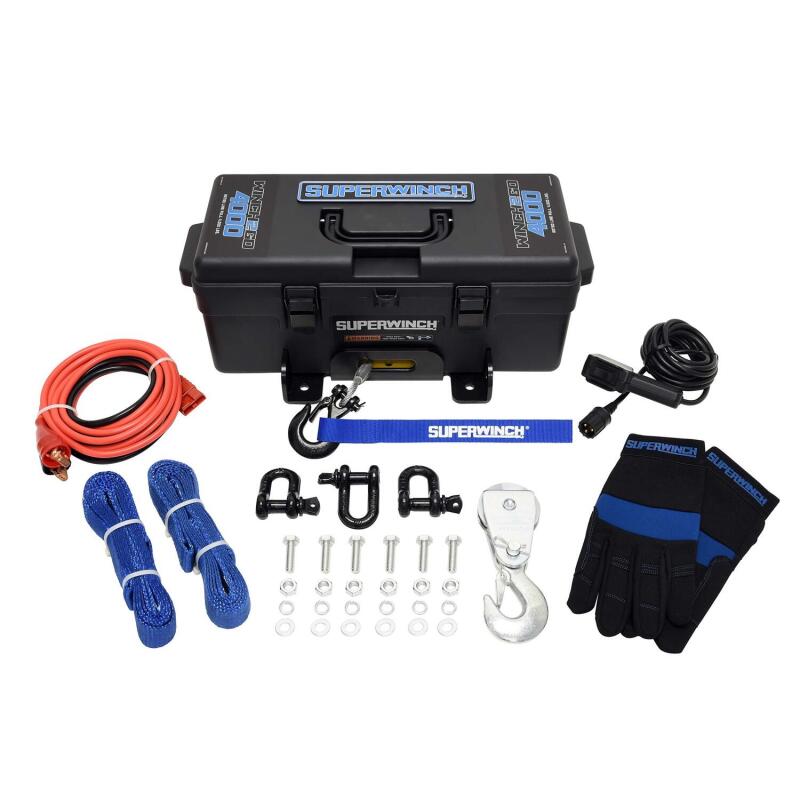

This "winch in a box" offers a variety of uses for home, work, road or play. Winch2Go comes complete with all the gear and accessories you need from snatch block, straps, shackles and even a pair of winch gloves. Never get stranded again, regardless of weather or terrain Winch2Go only needs a basic anchor point for recovery, if there is a rock, or tree, or vehicle to tie to, Winch2Go can do the rest. Features a quick connect power cord and an 8,000 lbs snatch block.
Product Overview
This "winch in a box" offers a variety of uses for home, work, road or play. Winch2Go comes complete with all the gear and accessories you need from snatch block, straps, shackles and even a pair of winch gloves. Never get stranded again, regardless of weather or terrain Winch2Go only needs a basic anchor point for recovery, if there is a rock, or tree, or vehicle to tie to, Winch2Go can do the rest. Features a quick connect power cord and an 8,000 lbs snatch block.
Features and Benefits
- Rated Line Pull Of 4000 Lbs
- 4,000 lbs. capacity
- 1.4 Hp Permanent Magnet Motor
- Cam-style clutch control knob
- Steel base plate with integrated hawse
- 1/4 in. clevis hook
- 12 ft. handheld remote control
- (2) heavy duty 8 ft. straps rated at 4,000 lbs
- (3) 4,000 lbs D-shackles
- 8,000 lbs snatch block
- 10 ft. quick connect battery cables
- Pair Of Heavy Duty Winch Gloves
- Weighs 43 lbs (wire rope)
- Cam Action Knob Freespool Clutch
- Wire Rope Measures 7/32 In. X 40 Ft.
- Sealed Handheld Wired Remote
- 1/4 In. Clevis Pinned Latched Hook
- 12 In. Handheld Remote Control
- 8000 Lbs Snatch Block
- 10 Ft.Quick Connect Battery Cables
- Weighs 43 Lbs
- Reinforced metal front latches
- Double sheer top handle
- Full length 1pc rear hinge
Product Details
| Brake System: | Automatic mechanical plus dynamic |
|---|---|
| Can Ship By Ground Delivery: | Yes |
| Clutch: | Cam Action Knob |
| Color: | Black |
| Description: | Winch2Go Winch |
| Diameter (in.): | 7/32 |

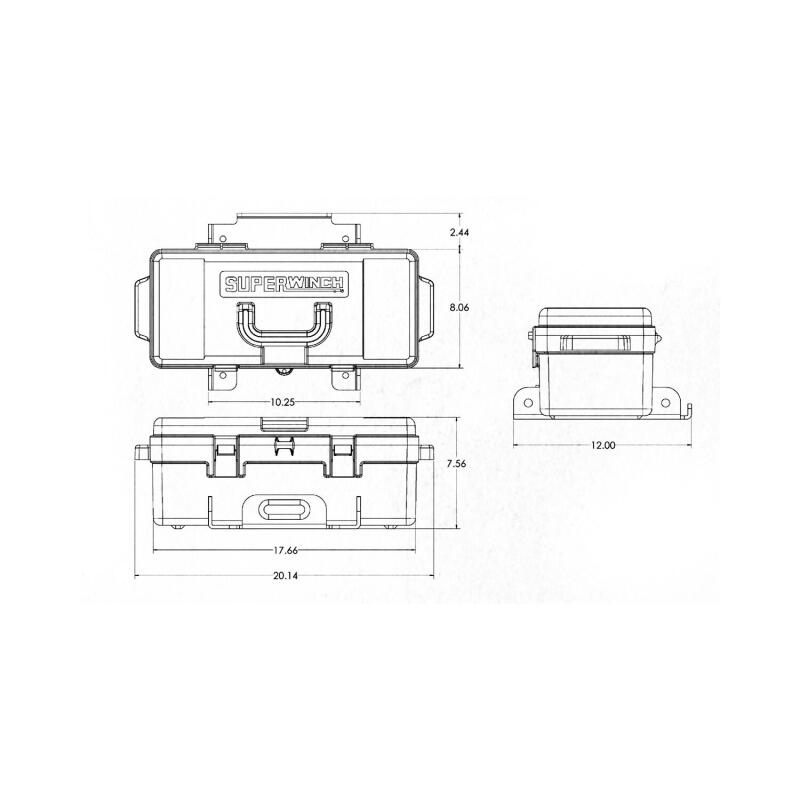

| Dimensions: | 20.1in L x 7.6in D x 12in H (510mm L x 193mm D x 305mm H) |
| Drum Diameter (in.): | 2.0 |
| Drum Length (in.): | 3.03 |
| EN Compliant: | No |
| Fairlead: | Hawse Fairlead in Baseplate |
| Finish: | Powder Coated |
| Gear Ratio: | 166:1 |
| Gear System: | 3-stage planetary |
| Line Speed: | 20 Amps Motor Draw/20.0 FPM (6.0 MPM) |
| Material: | Steel |
| Motor: | 1.4 HP/1.0KW, 12V DC |
| Net. Weight: | 43 lbs (19.5kgs) |
| Part Number: | suw1140222 |
| Prop 65: | Yes |
| Rated Single Line Pull (Lbs): | 4000 |
| Rated Single Line Pull (lbs.): | 4000 |
| Remote Control: | 12 ft Rubber Sealed Hand-held |
| Remote Type: | Wire |
| Rope Diameter: | 7/32 in. |
| Rope Length: | 7/32 in x 40 ft (5.5mm x 12.2m) |
| Rope Material: | Steel Wire |
| Title: | Superwinch Winch2Go Steel Rope 1140222 |
| Type: | Automotive |
| Voltage: | 12V DC |
| WARNING CA Proposition 65 Message: | Cancer and Birth Defect |
| WARNING CA Proposition 65: | Yes |
| Warranty: | Limited Lifetime Mechanical/2 Year Limited Electrical |
| Winch Hook: | Heavy-Duty, Clevis Pinned Latched |
| Winch Model: | Winch2Go |
| Winch Series: | Winch2Go Series |
Application Summary
4;000 lbs; 12 VDC; 7/32 in x 40 ft steel rope; sealed handheld rocker swith; 1.4 Hp; 166:01 gear ratio; hawse fairlead in baseplate
Part Type
Winch2Go 4000lb Winch Steel Rope
Features
- (2) heavy duty 8 ft. straps rated at 4,000 lbs
- (3) 4,000 lbs D-shackles
- 1.4 Hp Permanent Magnet Motor
- 1/4 in. clevis hook
- 1/4 In. Clevis Pinned Latched Hook
- 10 ft. quick connect battery cables
- 10 Ft.Quick Connect Battery Cables
- 12 ft. handheld remote control
- 12 In. Handheld Remote Control
- 4,000 lbs. capacity
- 8,000 lbs snatch block
- 8000 Lbs Snatch Block
- Cam Action Knob Freespool Clutch
- Cam-style clutch control knob
- Double sheer top handle
- Full length 1pc rear hinge
- Pair Of Heavy Duty Winch Gloves
- Rated Line Pull Of 4000 Lbs
- Reinforced metal front latches
- Sealed Handheld Wired Remote
- Steel base plate with integrated hawse
- Weighs 43 Lbs
- Weighs 43 lbs (wire rope)
- Wire Rope Measures 7/32 In. X 40 Ft.
Specifications
- Product Attributes - Brand
- Superwinch
- Product Attributes - Manufacturer's Part Number
- 1140222
- Product Attributes - Part Type
- Winches
- Product Attributes - Product Line
- Superwinch Winch2Go Utility Winches
- Product Attributes - UPC
- 22705003360
- Product Attributes - Winch Style
- Electric
- Product Attributes - Pull Rating (lbs.)
- 4,000 lbs.
- Product Attributes - Volts
- 12 V
- Product Attributes - Winch Fairlead Type
- Hawse
- Product Attributes - Remote Included
- Yes
- Product Attributes - Remote Type
- Wired
- Product Attributes - Remote Style
- Hand-held
- Product Attributes - Free-Spooling
- Yes
- Product Attributes - Brake
- No
- Product Attributes - Power Out
- No
- Product Attributes - Drive Gear
- Planetary
- Product Attributes - Winch Line Included
- Yes
- Product Attributes - Winch Line Type
- Cable
- Product Attributes - Winch Line Diameter
- 3/16 in.
- Product Attributes - Winch Line Material
- Steel
- Product Attributes - Winch Line Length (ft.)
- 50.00 ft.
- Product Attributes - No Load Line Speed
- 20.00 fpm
- Product Attributes - Conforms to J706 Standards
- No
- Product Attributes - Mounting Hole Quantity
- 4 holes
- Product Attributes - Mounting Pattern Length (in.)
- 9.25
- Product Attributes - Mounting Pattern Width (in.)
- 6.25
- Product Attributes - Weight
- 43.000 lbs.
- Product Attributes - Motor Horsepower
- 1.40 hp
- Product Attributes - Speed
- 1
- Product Attributes - Gear Reduction Ratio
- 166:1
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Superwinch |
|---|---|
| StreetFX SKU | suw1140222 |
| SFX Item ID | 4298254 |
| Supplier Item Code | 4298254 |
| Manufacturer SKU | 1140222 |
| Manufacturer UPC | 22705003360 |
| Alternative References | winches2go, spw-1140222, SUP1140222, 12V, 3/16in, 50ft |
Brochures
Compatibility
4;000 lbs; 12 VDC; 7/32 in x 40 ft steel rope; sealed handheld rocker swith; 1.4 Hp; 166:01 gear ratio; hawse fairlead in baseplate
