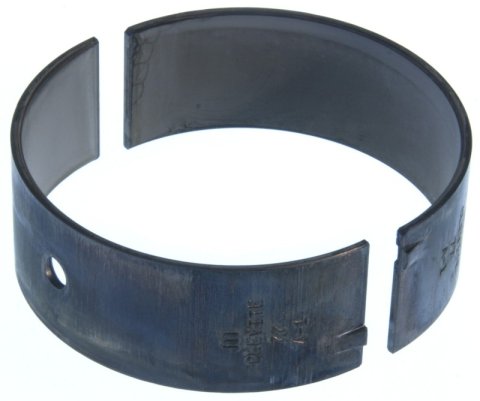

Clevite CHEV V8 396 427 454 Eng 1965-93 Con Rod Bearing Set
Clevite CHEV V8 396 427 454 Eng 1965-93 Con Rod Bearing Set
A$45.37
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
Product Overview
Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
Product Details
| Bearing Item Grade: | High Performance |
|---|---|
| Bearing Material: | TM-77 |
| Bearing Note: | For Doweled Connecting Rod |
| Bearing O.D. or Housing Bore (max.): | 2.3252 |
| Bearing O.D. or Housing Bore (min.): | 2.3247 |
| Bearing Series: | H |
| Description: | Engine Connecting Rod Bearing Pair |
| Max. Length: | 0.842 |
| Max. Wall: | 0.0614 |
| Part Number: | cleCB743HXND |
| Size: | Standard |
| Standard Shaft Diameter (max.): | 2.2000 |
| Standard Shaft Diameter (min.): | 2.1990 |
| Unit of Measure: | Inches |
| Vertical Oil Clearance (max.): | 0.0041 |
| Vertical Oil Clearance (min.): | 0.002 |
Part Type
Engine Connecting Rod Bearing Pair
Specifications
- Bearing Item Grade:
- High Performance
- Bearing Material:
- TM-77
- Bearing Note:
- For Doweled Connecting Rod
- Bearing O.D. or Housing Bore (max.):
- 2.3252
- Bearing O.D. or Housing Bore (min.):
- 2.3247
- Bearing Series:
- H
- Description:
- Engine Connecting Rod Bearing Pair
- Max. Length:
- 0.842
- Max. Wall:
- 0.0614
- Part Number:
- cleCB743HXND
- Size:
- Standard
- Standard Shaft Diameter (max.):
- 2.2000
- Standard Shaft Diameter (min.):
- 2.1990
- Unit of Measure:
- Inches
- Vertical Oil Clearance (max.):
- 0.0041
- Vertical Oil Clearance (min.):
- 0.002
Reference Information
| Brand Name/s | Clevite |
|---|---|
| StreetFX SKU | cleCB743HXND |
| SFX Item ID | 4248136 |
| Supplier Item Code | 4248136 |
| Manufacturer SKU | CB743HXND |
| Manufacturer UPC | 27067538642 |
