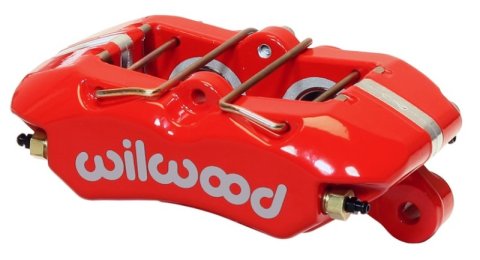

Wilwood Caliper-Forged Dynapro 4 5.25in Mount-Red-Universal 1.38/1.38in Pistons .81in Disc

SKU: WIL120-16190-RD

Brake Calipers

WIL Dynapro Caliper...

Wilwood

Wilwood Caliper-Forged Dynapro 4 5.25in Mount-Red-Universal 1.38/1.38in Pistons .81in Disc

SKU: WIL120-16190-RD

Brake Calipers

WIL Dynapro Caliper...

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Wilwood DynaPro Narrow Lug-Mount forged billet calipers represent the newest generation of brake calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a forged machined finish provide the performance and looks for competition or show. They're especially designed for limited outboard rotor hat clearance and narrow swept area rotors.

The strength of forged DynaPro low-profile calipers is a combination of process and design. This series is designed using stress-flow forged from premium grade billet aluminum. Stress-flow forging realigns the grain structure of the metal within the contour of the body design. This process produces a part with superior strength over parts simply machined from straight grained blocks of billet. The FEA generated body design incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper body separation under load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power.

These brake calipers are loaded with other enhancements for performance and wider application. They feature Quick-E-Clip pad retainers that support a new design 4812 type brake pad from the top. Not only do they allow for fast pad service without caliper removal, the bottom pad supports have been removed to create a slimmer profile that can be more easily fitted into tight clearance applications. Order the calipers recommended for your vehicle.

Part Type

Brake Calipers

Data: v4.2 - Upd: 2026-10-21 19:34:42

Specifications

Product Attributes - UPC: 889545098433
Product Attributes - Brand: Wilwood Disc Brakes
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Brake Calipers
Product Attributes - Thread Size: 1/8 in. NPT
Product Attributes - Caliper Logo: Wilwood
Product Attributes - Product Line: Wilwood DynaPro Narrow Lug-Mount Calipers
Product Attributes - Caliper Color: Red
Product Attributes - Caliper Series: Forged Dynapro Low-Profile Lug Mount
Product Attributes - Remanufactured: No
Product Attributes - Caliper Material: Aluminum
Product Attributes - Brackets Included: No
Product Attributes - Fittings Included: Yes
Product Attributes - Brake Pads Included: No
Product Attributes - Fitting Attachment 1: Male threads
Product Attributes - Piston Diameter (in.): 1.380
Product Attributes - Rotor Thickness (in.): 0.810 in.
Product Attributes - Caliper Piston Quantity: Four
Product Attributes - Parking Brake Provision: No
Product Attributes - Manufacturer's Part Number: 120-16190-RD

Reference Information

Brand Name/s	Wilwood
StreetFX SKU	wil120-16190-RD
SFX Item ID	4407984
Supplier Item Code	4407984
Manufacturer SKU	120-16190-RD
Manufacturer UPC	889545098433
Alternative References	5.25in, 1.38/1.38in, .81in
