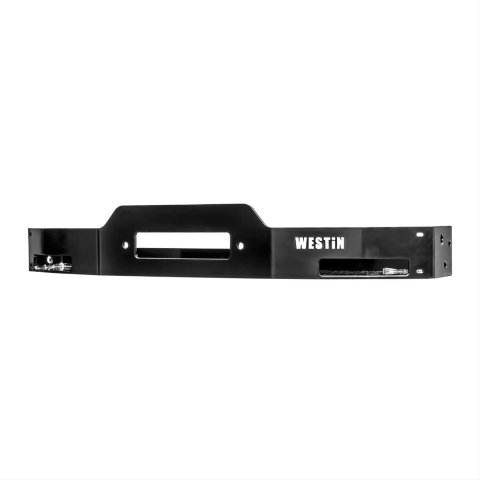

Westin 2015-2018 Ford F-150/F-150 XL SSV MAX Winch Tray - Black

SKU: WES46-23835

Winch Mounts

WES MAX Winch System...

Westin 2015-2018 Ford F-150/F-150 XL SSV MAX Winch Tray - Black

SKU: WES46-23835

Winch Mounts

WES MAX Winch System...

LAST ONE! Est Ship 3-5 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Mounts directly to frame. Max grill guards bolt directly to the tray. Accommodates up to 12000 pound winches. No drill installation.

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	wes57-93835	Westin Ford F-150/F-150 XL SSV 15-20 HDX Winch Mount Grille Guard (1x wes46-23835, 1x wes57-93835A)
	wes57-924065	Westin 21-23 Ford F-150 (Excl. Plat/Raptor/Lightng.) HDX Winch Mount Modular Grille Guard Kit w/Tray (1x wes46-23835, 1x wes57-924065A)

Application Summary

2015-2023 Ford F-150 King Ranch, 2015-2023 Ford F-150 Lariat, 2016-2023 Ford F-150 Limited, 2015-2023 Ford F-150 Platinum, 2018-2023 Ford F-150 Police Responder, 2016-2023 Ford F-150 SSV, 2021-2023 Ford F-150 Tremor, 2015-2023 Ford F-150 XL, 2015-2023 Ford F-150 XLT

Part Type

Winch Mount Plate

Data: v4.2 - Upd: 2026-10-14 17:07:59

Features

Accommodates Up To 12000 lb. Winches
Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall
HD brackets mount directly to vehicle frame
MAX Grill Guards Bolt Directly To Tray
Mounts Directly To Frame
No Drill Installation
Optional MAX Bull Bar/Light Bar
Optional MAX Faceplate
Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)
Pre-drilled for quick mounting of hawse or roller fairlead
Winch tray tested to a maximum straight line pull of 16,500 lbs

Specifications

Product Attributes - Brand: Westin Automotive
Product Attributes - Manufacturer's Part Number: 46-23835
Product Attributes - Part Type: Winch Mounts
Product Attributes - Product Line: Westin T-Max Winch Trays
Product Attributes - UPC: 707742063101
Product Attributes - Winch Mount Style: Channel
Product Attributes - Winch Mount Material: Steel
Product Attributes - Winch Mount Finish: Black powdercoated
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Westin
StreetFX SKU	wes46-23835
SFX Item ID	4151642
Supplier Item Code	4151642
Manufacturer SKU	46-23835
Manufacturer UPC	707742063101
Alternative References	wsa-46-23835, F-150/F-150
