SPC Performance 09-17 Audi A4/RS4/S4 / 09-16 Audi A5/S5 Front Adj Upper Multi Link Control Arm Kit
SPC Performance 09-17 Audi A4/RS4/S4 / 09-16 Audi A5/S5 Front Adj Upper Multi Link Control Arm Kit
Description

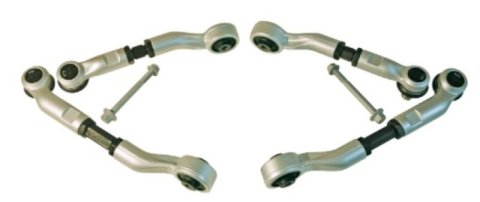

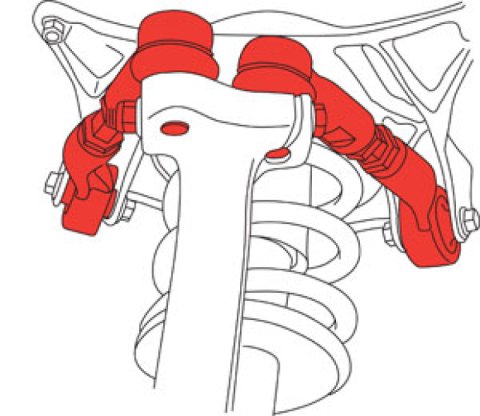

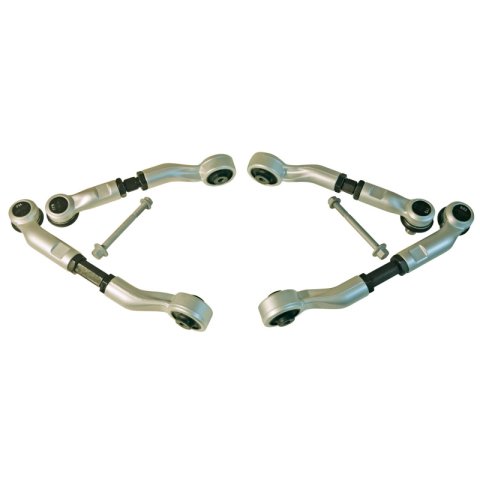

Adjust front camber and caster 1.5 on the Audi B8 and C7 platforms with these forged aluminum adjustable control arms from SPC. OE style booted ball joints and bonded rubber bushings maintain factory ride, handling and noise, vibration, and harshness (NVH) parameters. Audi's unique multi-link suspension creates a 'Virtual' SAI. The factory does not publish a specification for caster, but SPC recommends 5 to 6 of caster as a preferred angle for tracking and return to center on these cars. This kit includes four arms to replace both upper links on both sides of the vehicle. For the left hand (LH) side, use #81361. For the right hand (RH) side, use part number #81362. SPC Arms Feature: Forged 6061-T6 Aluminum construction for maximized strength at a minimum weight OE style, maintenance free, booted ball joints Large 18mm threaded adjuster links Replacement pinch bolts included Need to replace the ball joint boots on these arms? We have replacement kits available! Part No. 81354.
Product Overview
Adjust front camber and caster +-1.5deg on the Audi B8 and C7 platforms with these forged aluminum adjustable control arms from SPC. OE style booted ball joints and bonded rubber bushings maintain factory ride, handling and noise, vibration, and harshness (NVH) parameters. Audi's unique multi-link suspension creates a 'Virtual' SAI. The factory does not publish a specification for caster, but SPC recommends 5deg to 6deg of caster as a preferred angle for tracking and return to center on these cars. This kit includes four arms to replace both upper links on both sides of the vehicle. For the left hand (LH) side, use #81361. For the right hand (RH) side, use part number #81362. SPC Arms Feature: Forged 6061-T6 Aluminum construction for maximized strength at a minimum weight OE style, maintenance free, booted ball joints Large 18mm threaded adjuster links Replacement pinch bolts included Need to replace the ball joint boots on these arms? We have replacement kits available! Part No. 81354. California Residents WARNING
Features and Benefits
- Forged 6051-T6 aluminum for strength and weight reduction
- Comes with pinch bolt hardware
- OE style bushing and ball joint maintain factory feel and noise reduction
- Kit includes both arms for both sides of the vehicle, order one kit per vehicle
- Adjusts camber and caster plus or minus 1.5 degrees
Product Details
| Year | Make |
|---|---|
| Add-On: | 81361, 81362, 21040 |
| Adjustable: | Yes |
| Adjustment: | CAMBER ±1.50, CASTER ±1.50 |
| Ball Joint Included: | Yes |
| Ball Joint Mounting Type: | Welded |
| Ball Joint Stud Type: | Grooved |
| Bushing Color: | Black |
| Bushing Material: | Rubber |
| Bushing(s) Included: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. |
| Color: | Silver |
| Construction: | Casting/Forged |
| Description: | AUDI ADJUSTABLE UCA - KIT |
| Grade Type: | Performance |
| Grease Fitting Included: | No |
| Greaseable: | No |
| Material: | Aluminum |
| Part Number: | spc81363 |
| Prop 65: | Y |
| Suspension Grade Type: | Performance |
Part Type
Alignment Caster / Camber Control Arm
Features
- Adjusts camber and caster plus or minus 1.5 degrees
- Comes with pinch bolt hardware
- Forged 6051-T6 aluminum for strength and weight reduction
- Kit includes both arms for both sides of the vehicle, order one kit per vehicle
- OE style bushing and ball joint maintain factory feel and noise reduction
Specifications
- Product Attributes - Brand
- SPC Performance
- Product Attributes - Manufacturer's Part Number
- 81363
- Product Attributes - Part Type
- Control Arms
- Product Attributes - UPC
- 082642813637
Reference Information
| Brand Name/s | Spc Performance |
|---|---|
| StreetFX SKU | spc81363 |
| SFX Item ID | 4178037 |
| Supplier Item Code | 4178037 |
| Manufacturer SKU | 81363 |
| Manufacturer UPC | 82642813637 |
| Alternative References | sps-81363, A4/RS4/S4, A5/S5 |
