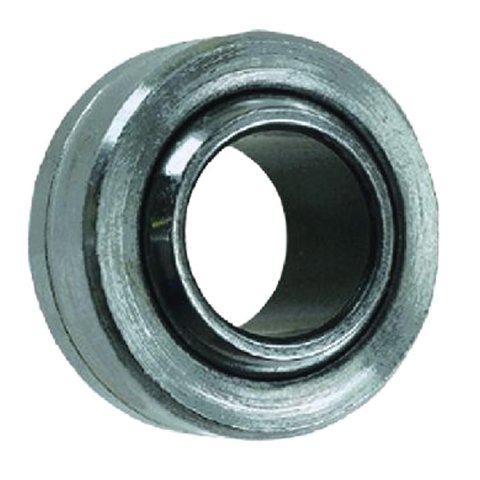

QA1 MIB-T Series Bearing - 1/2in Bore - Heat Treated Chrome Plated Low Carbon Steel w/PTFE
QA1 MIB-T Series Bearing - 1/2in Bore - Heat Treated Chrome Plated Low Carbon Steel w/PTFE
A$45.37
IN STOCK! Est Ship 3-7 Days days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Get more wear surface with QA1 MIB-T Series spherical bearings! These affordable MIB-T bearings offer extended life due to their increased race width and diameter. They are built with quality oil-coated, low-carbon steel races and heat-treated, hard chrome plated steel balls that are precision-ground for smoother operation. Sandwiched in between is a self-lubricating PTFE liner. Keep the joints of your suspension in motion with QA1 and their MIB-T spherical bearings.
Product Overview
QA1's MIB and MIB-T Low Carbon Steel Series spherical bearings offer more wear surface than a traditional COM bearing, extending the life due to the increased race width and diameter. An optional self-lubricating PTFE liner is also available with these spherical bearings (MIB-T Series). BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (MIB-T), PTFE, Self-Lubricating, , RACE, Low Carbon Steel, I.D. Protective Coated for Corrosion Resistance, Oil Coated, Mfr.'s Option - Heat Treated Stainless Steel.
Features and Benefits
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 MIB-T Series Bearing - 1/2in Bore - Heat Treated Chrome Plated Low Carbon Steel w/PTFE |
| Inside Diameter: | 0.5 |
| Manufacturer Part Number: | MIB8T |
| Outside Diameter: | 1.0937 |
| Part Number: | qapMIB8T |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Suspension Bearing MIB8T |
| UPC: | 806990009821 |
Part Type
Suspension Bearing
Features
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
- Wide selection for a variety of uses
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- MIB8T
- Product Attributes - Part Type
- Rod End Receiver Bearings
- Product Attributes - Product Line
- QA1 MIB-T Series Spherical Bearings
- Product Attributes - UPC
- 806990009821
- Product Attributes - Receiver Race Diameter
- 1.0937 in.
- Product Attributes - Race Width
- 0.500 in.
- Product Attributes - Inner Ball Width
- 0.625 in.
- Product Attributes - Inner Ball Diameter
- 0.5000 in.
- Product Attributes - Rod End Ball Diameter
- 0.937 in.
- Product Attributes - Chamfer Reference
- 0.020 in.
- Product Attributes - Rod End Misalign Angle
- 9.5 degrees
- Product Attributes - ULT. Static Radial Load (lbs.)
- 18,740 lbs.
- Product Attributes - Rod End Bearing Material
- Steel
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- The bearing is alloy steel and the race is low-carbon steel. This is a PTFE lined self lubricating bearing.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapMIB8T |
| SFX Item ID | 4094875 |
| Supplier Item Code | 4094875 |
| Manufacturer SKU | MIB8T |
| Manufacturer UPC | 806990009821 |
| Alternative References | qa1, QA1-MIB8T, 1/2in |
