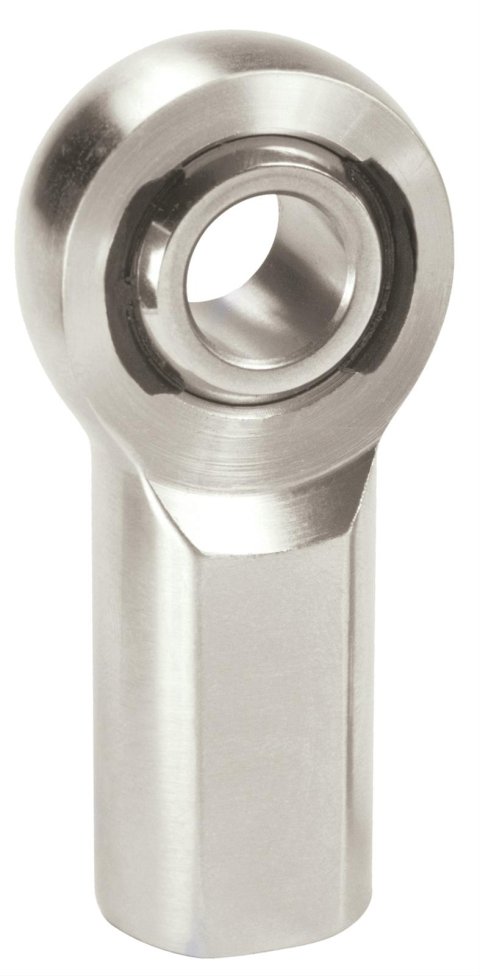

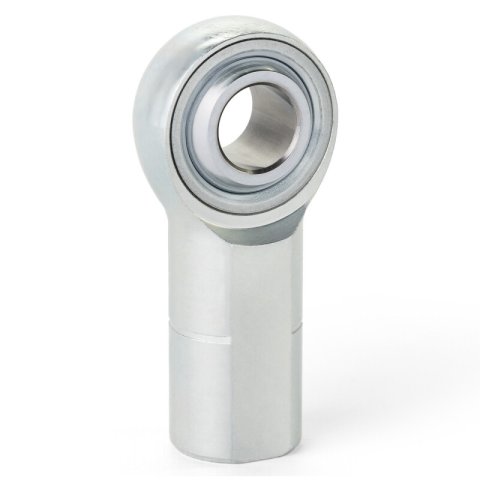

QA1 H Series 3-Pc Rod End - Female/Right Hand - 14mm Bore x M14x1.5 - Alloy Steel
QA1 H Series 3-Pc Rod End - Female/Right Hand - 14mm Bore x M14x1.5 - Alloy Steel
A$80.51
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
QA1 MH Series rod ends are traditional 3-piece alloy steel rod ends. These precision metric components are heat-treated and available in multiple sizes, with left and right hand thread options. Order the rod end to fit your application needs.
Key features include:
* Body made from alloy steel; heat-treated and are protective coated for corrosion-resistance
* Ball is made from 51200 bearing steel that has been heat-treated, hard chrome-plated and precision ground
* Alloy steel race is treated for corrosion and wear resistance
Product Overview
QA1 H Series 3-Pc Rod End - Female/Right Hand - 14mm Bore x M14x1.5 - Alloy Steel
Product Details
| Description: | QA1 H Series 3-Pc Rod End - Female/Right Hand - 14mm Bore x M14x1.5 - Alloy Steel |
|---|---|
| Part Number: | qapMHFR14-1 |
Part Type
Rod Ends
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- MHFR14-1
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 MH Series Rod Ends
- Product Attributes - UPC
- 806990134059
- Product Attributes - Rod End Thread Size
- M14 x 1.5
- Product Attributes - Rod End Attachment
- Female threads
- Product Attributes - Rod End Head Bore Size
- 14.000mm
- Product Attributes - Rod End Construction
- 3-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- Metal to metal
- Product Attributes - Thread Length
- 27.000mm
- Product Attributes - Rod End Head Diameter
- 34.750mm
- Product Attributes - Rod End Head Width
- 19.000mm
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 57.000mm
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 19.000mm
- Product Attributes - Rod End Misalign Angle
- 21 degrees
- Product Attributes - Rod End Static Load Capacity
- 52,913 lbs.
- Product Attributes - Rod End Material
- Alloy steel
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapMHFR14-1 |
| SFX Item ID | 4094750 |
| Supplier Item Code | 4094750 |
| Manufacturer SKU | MHFR14-1 |
| Manufacturer UPC | 806990134059 |
| Alternative References | qa1, QA1-MHFR14-1, 3-Pc, 14mm, M14x1.5 |
