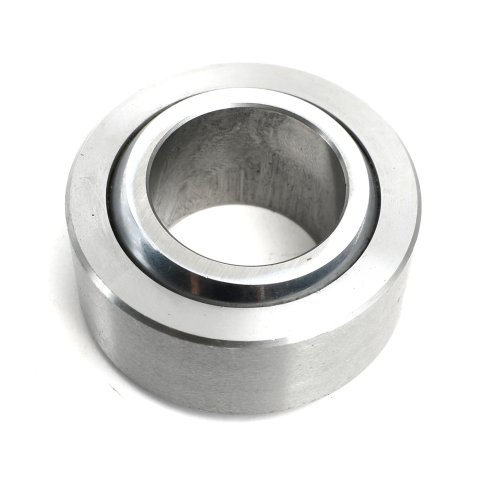

QA1 HCOM-T Series Bearing - 1-1/2in Bore - Heat Treated Chrome Plated Chromoly Steel w/PTFE
QA1 HCOM-T Series Bearing - 1-1/2in Bore - Heat Treated Chrome Plated Chromoly Steel w/PTFE
A$200.93
IN STOCK! Est Ship 3-7 Days days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
QA1 HCOM-T Large Bore series spherical bearings are great solutions for your special applications! These spherical bearings feature self-lubricating PTFE liners for smooth operation, and each bearing is made from heat-treated chromoly steel and coated for corrosion resistance. The bearing balls of these QA1 HCOM-T Large Bore series are hard chrome plated and precision-ground. Choose bore sizes from 1 in. to 2 in. to fit your large applications. QA1 HCOM-T Large Bore series spherical bearings offer the quality and affordability that make your project #1!
Product Overview
For those special applications, QA1's HCOM and HCOM-T Large Bore Series spherical bearings are a great solution. With bore sizes from one to two inches, these spherical bearings are ideal for large applications. Each bearing is made from chromoly steel with an optional self-lubricating PTFE liner. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (HCOM-T), PTFE, Self-Lubricating, , RACE, Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.
Features and Benefits
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 HCOM-T Series Bearing - 1-1/2in Bore - Heat Treated Chrome Plated Chromoly Steel w/PTFE |
| Inside Diameter: | 1.5 |
| Manufacturer Part Number: | HCOM24T |
| Outside Diameter: | 2.75 |
| Part Number: | qapHCOM24T |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Suspension Bearing HCOM24T |
| UPC: | 806990008978 |
Part Type
Suspension Bearing
Features
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
- Wide selection for a variety of uses
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- HCOM24T
- Product Attributes - Part Type
- Rod End Receiver Bearings
- Product Attributes - Product Line
- QA1 HCOM-T Large Bore Series Spherical Bearings
- Product Attributes - UPC
- 806990008978
- Product Attributes - Receiver Race Diameter
- 2.7500 in.
- Product Attributes - Race Width
- 1.094 in.
- Product Attributes - Inner Ball Width
- 1.375 in.
- Product Attributes - Inner Ball Diameter
- 1.5000 in.
- Product Attributes - Rod End Ball Diameter
- 2.312 in.
- Product Attributes - Chamfer Reference
- 0.032 in.
- Product Attributes - Rod End Misalign Angle
- 8.5 degrees
- Product Attributes - ULT. Static Radial Load (lbs.)
- 203,925 lbs.
- Product Attributes - Rod End Bearing Material
- Steel
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- The bearing is steel and the race is alloy steel. This is a PTFE lined self lubricating bearing.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapHCOM24T |
| SFX Item ID | 4093709 |
| Supplier Item Code | 4093709 |
| Manufacturer SKU | HCOM24T |
| Manufacturer UPC | 806990008978 |
| Alternative References | qa1, QA1-HCOM24T, 1-1/2in |
