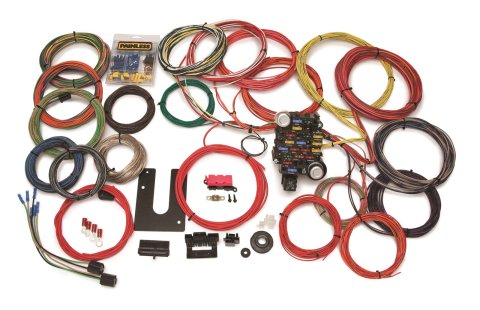

Painless Performance 28-Circuit Trunk-Mount Chassis Harnesses 10220 Wiring Harness, 28-Circuit, Dash Ignition, Rear Mount Fuse Block, Spade Fuse, Universal, Kit
Painless Performance 28-Circuit Trunk-Mount Chassis Harnesses 10220 Wiring Harness, 28-Circuit, Dash Ignition, Rear Mount Fuse Block, Spade Fuse, Universal, Kit
A$1,414.89
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Painless Performance 28-circuit trunk-mount chassis harnesses allow you to remote mount your fuse block and have full power options. They will provide you with power accessory circuits, as well as extra-long wires allowing you to mount the fuse block in a remote location such as in the trunk or behind the rear seat. Like all Painless kits, these fuse blocks come completely pre-wired and terminated for a simple, painless installation. They come with GM column mounted plugs.
Includes circuits for:
* Air conditioning/heat
* Accessory (relayed)
* Backup lights
* Brake lights
* Charging
* Dome light
* Electric choke
* Emergency flashers
* Fan relay activation power
* Fused power source
* Headlights
* Horn
* Ignition coil
* Instrument panel lighting and gauges (see notes above)
* Parking lights
* Radio (constant/ignition hot)
* Starting
* Taillights and license plate light
* Third brake light
* Turn signals
* Wipers
Part Type
Trunk Mount 28 Circuit Wiring Harness
Specifications
- Product Attributes - Brand
- Painless Performance
- Product Attributes - Manufacturer's Part Number
- 10220
- Product Attributes - Part Type
- Wiring Harnesses
- Product Attributes - Product Line
- Painless Performance 28-Circuit Trunk-Mount Chassis Harnesses
- Product Attributes - UPC
- 749823102200
- Product Attributes - Circuit Quantity
- 28
- Product Attributes - Ignition Key Location
- Dash
- Product Attributes - Harness Length
- Extra-long
- Product Attributes - Fuse Block Included
- Yes
- Product Attributes - Fuse Block Location
- Rear
- Product Attributes - Fuse Style
- ATO/ATC
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes wires for fuel gauge, oil gauge, speakers, tachometer, temperature gauge, and voltmeter. The number of circuits does not reflect the number of fuses; some circuits share the same fuse.
Reference Information
| Brand Name/s | Painless Performance |
|---|---|
| StreetFX SKU | prf10220 |
| SFX Item ID | 5074563 |
| Supplier Item Code | 5074563 |
| Manufacturer SKU | 10220 |
| Manufacturer UPC | 749823102200 |
| Alternative References | PWI10220, 28-Circuit |
