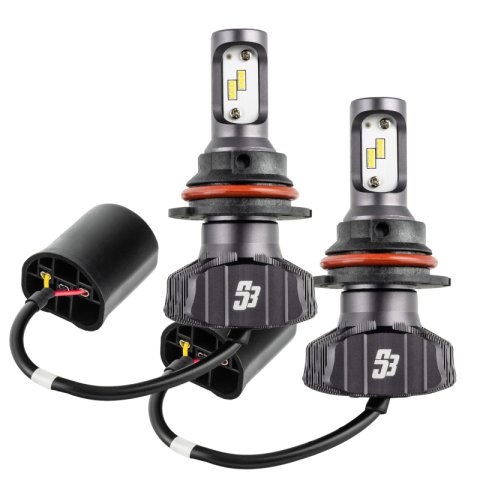

Oracle 9004 - S3 LED Headlight Bulb Conversion Kit - 6000K
Oracle 9004 - S3 LED Headlight Bulb Conversion Kit - 6000K
A$197.79
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
These new high-output LED Headlight bulbs create a 4,000+ Lm blanket of light for the driver to increase safety and nighttime visibility. Philips Luxeon ZES chips allow for the increased Lumen output while still drawing less than half the power of the factory headlight bulb. These smaller chips also have excellent heat dissipation characteristics, making them extremely reliable even in harsh environments. The new internal driver components were designed by Samsung and offer excellent performance in a smaller package. The new adjustable heat sink makes fitment issues a thing of the past since it is removable to reverse install or mount outside the headlight back-cap for added adaptability. More illumination, increased reliability, and easier installation, all for LESS than before!
Product Overview
These new high-output LED Headlight bulbs create a 4,000+ Lm blanket of light for the driver to increase safety and nighttime visibility. Philips Luxeon ZES chips allow for the increased Lumen output while still drawing less than half the power of the factory headlight bulb. These smaller chips also have excellent heat dissipation characteristics, making them extremely reliable even in harsh environments. The new internal driver components were designed by Samsung and offer excellent performance in a smaller package. The new adjustable heat sink makes fitment issues a thing of the past since it is removable to reverse install or mount outside the headlight back-cap for added adaptability. More illumination, increased reliability, and easier installation, all for LESS than before!
Features and Benefits
- S3 Headlight Bulbs are housed in a sealed waterproof heat-sink design
Product Details
| Add-On: | N/A |
|---|---|
| Amperage Rating: | 1 |
| Average Rated Life: | 60000 |
| Beam Type: | Dual Beam |
| Brightness: | 3200 |
| Bulb Base Type: | HB1 |
| Bulb Color: | Silver |
| Bulb Finish: | Clear |
| Bulb Material: | Plastic |
| Bulb Technology: | LED |
| Bulb Type: | 9004 |
| Contents: | (2x) ORACLE 9004 4,000+ Lumen LED Headlight Bulbs, (2x) 9004 Connectors, (2x)9004 Compact LED Drivers |
| DOT Approved: | No |
| Description: | Oracle 9004 - S3 LED Headlight Bulb Conversion Kit - 6000K |
| Diameter: | No |
| Filament Quantity: | 2 |
| Filament Type: | Dual Filament |
| Kelvin Temperature: | 6000K |
| LED Type: | CSP |
| Light Color Temperature: | 6000 |
| Part Number: | orlS5238-001 |
| Power Draw: | 12W/Bulb |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Long Label: | Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 - Warning: | Warning - Both Cancer and Reproduction.JPG |
| Prop 65 Yes/No: | Yes |
| Secondary Amperage Rating: | 1 |
| Secondary Average Rated Life: | 60000 |
| Secondary Brightness: | 3200 |
| Secondary Filament Type: | Dual Filament |
| Secondary Voltage: | 24 |
| Secondary Wattage: | 12 |
| Title: | S5238-001 - Headlight Bulb Set |
| Voltage: | 12 |
| Warranty: | 1 Year |
| Wattage: | 12 |
| max output: | 6000 Lumens |
| min output: | 4000+ Lumens |
Application Summary
Universal
Part Type
Headlight Bulb Set
Features
- S3 Headlight Bulbs are housed in a sealed waterproof heat-sink design
Specifications
- Add-On:
- N/A
- Amperage Rating:
- 1
- Average Rated Life:
- 60000
- Beam Type:
- Dual Beam
- Brightness:
- 3200
- Bulb Base Type:
- HB1
- Bulb Color:
- Silver
- Bulb Finish:
- Clear
- Bulb Material:
- Plastic
- Bulb Technology:
- LED
- Bulb Type:
- 9004
- Contents:
- (2x) ORACLE 9004 4,000+ Lumen LED Headlight Bulbs, (2x) 9004 Connectors, (2x)9004 Compact LED Drivers
- DOT Approved:
- No
- Description:
- Oracle 9004 - S3 LED Headlight Bulb Conversion Kit - 6000K
- Diameter:
- No
- Filament Quantity:
- 2
- Filament Type:
- Dual Filament
- Kelvin Temperature:
- 6000K
- LED Type:
- CSP
- Light Color Temperature:
- 6000
- Part Number:
- orlS5238-001
- Power Draw:
- 12W/Bulb
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Long Label:
- Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
- Prop 65 - Short Label:
- WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 - Warning:
- Warning - Both Cancer and Reproduction.JPG
- Prop 65 Yes/No:
- Yes
- Secondary Amperage Rating:
- 1
- Secondary Average Rated Life:
- 60000
- Secondary Brightness:
- 3200
- Secondary Filament Type:
- Dual Filament
- Secondary Voltage:
- 24
- Secondary Wattage:
- 12
- Title:
- S5238-001 - Headlight Bulb Set
- Voltage:
- 12
- Warranty:
- 1 Year
- Wattage:
- 12
- max output:
- 6000 Lumens
- min output:
- 4000+ Lumens
Reference Information
| Brand Name/s | Oracle Lighting |
|---|---|
| StreetFX SKU | orlS5238-001 |
| SFX Item ID | 4580278 |
| Supplier Item Code | 4580278 |
| Manufacturer SKU | S5238-001 |
| Manufacturer UPC | 195238020194 |
| Alternative References | OCLS5238-001, 6000K |
