Oracle In-Line LED Amplifier

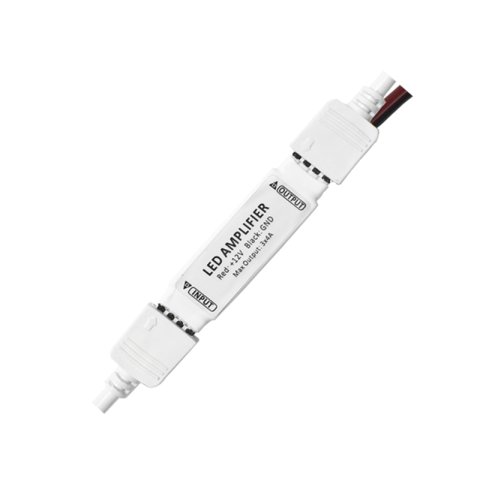

Oracle In-Line LED Amplifier
A$63.55
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. 2 x 4-pin RGB pigtail connectors included. With supplied RGB pigtail connectors, bridge 2 segments of LED RGB Strip with the LED amplifier in between. Connect RED and BLACK wires to 12 Volt power source. Product Specifications: - Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F- Static power consumption:
Product Overview
In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. 2 x 4-pin RGB pigtail connectors included. With supplied RGB pigtail connectors, bridge 2 segments of LED RGB Strip with the LED amplifier in between. Connect RED and BLACK wires to 12 Volt power source. Product Specifications: - Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F- Static power consumption: < 1 Watt - Output Power: 144 Watts - RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty
Features and Benefits
- Increases the load capability and extends the signal of any universal RGB controller.
Product Details
| Add-On: | N/A |
|---|---|
| Color: | White |
| Description: | Oracle In-Line LED Amplifier |
| Dimensions: | Length: 1.6 in., Width: 0.4 in., Height: 0.1 in. |
| Gender: | Female |
| Length: | 4 |
| Outputs: | 3 channels |
| Part Number: | orl1615-504 |
| Power Output: | 12A |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Long Label: | Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 - Warning: | Warning - Both Cancer and Reproduction.JPG |
| Prop 65 Yes/No: | Yes |
| Terminal Gender: | Female |
| Terminal Material: | Copper |
| Terminal Quantity: | 4 |
| Terminal Type: | Blade Pin |
| Title: | 1615-504 - ORACLE In-Line LED Amplifier |
| Voltage: | 8 16V |
| Warranty: | 2 Year |
| Wattage: | 144W |
| Wire Gauge Measurement: | 20 |
| Wire Quantity: | 2 |
| Wiring Harness Included: | Yes |
Application Summary
Universal
Part Type
Accessory Power Module Connector
Features
- Increases the load capability and extends the signal of any universal RGB controller.
Specifications
- Add-On:
- N/A
- Color:
- White
- Description:
- Oracle In-Line LED Amplifier
- Dimensions:
- Length: 1.6 in., Width: 0.4 in., Height: 0.1 in.
- Gender:
- Female
- Length:
- 4
- Outputs:
- 3 channels
- Part Number:
- orl1615-504
- Power Output:
- 12A
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Long Label:
- Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
- Prop 65 - Short Label:
- WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 - Warning:
- Warning - Both Cancer and Reproduction.JPG
- Prop 65 Yes/No:
- Yes
- Terminal Gender:
- Female
- Terminal Material:
- Copper
- Terminal Quantity:
- 4
- Terminal Type:
- Blade Pin
- Title:
- 1615-504 - ORACLE In-Line LED Amplifier
- Voltage:
- 8 16V
- Warranty:
- 2 Year
- Wattage:
- 144W
- Wire Gauge Measurement:
- 20
- Wire Quantity:
- 2
- Wiring Harness Included:
- Yes
Reference Information
| Brand Name/s | Oracle Lighting |
|---|---|
| StreetFX SKU | orl1615-504 |
| SFX Item ID | 4580650 |
| Supplier Item Code | 4580650 |
| Manufacturer SKU | 1615-504 |
| Manufacturer UPC | 161550420134 |
| Alternative References | OCL1615-504 |
Compatibility
Universal
