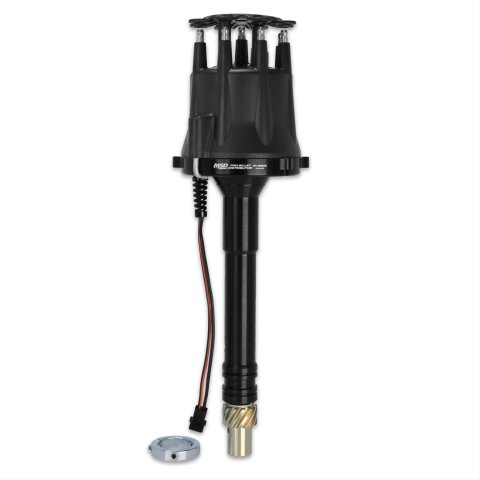

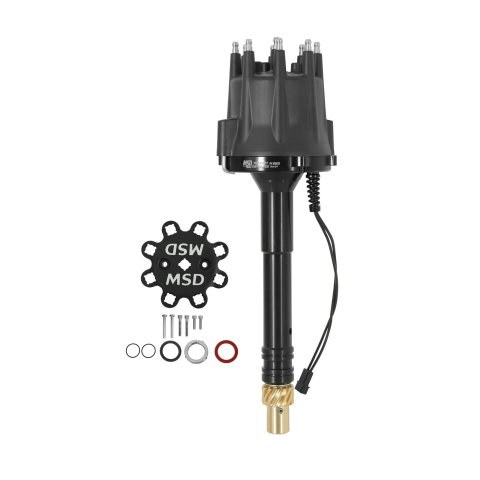

MSD Pro-Billet Locked-Out Distributors 85505 Distributor, Pro-Billet, Magnetic Trigger, Locked Advance, Chevy, Big/Small Block, Each
MSD Pro-Billet Locked-Out Distributors 85505 Distributor, Pro-Billet, Magnetic Trigger, Locked Advance, Chevy, Big/Small Block, Each
A$1,098.65
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MSD Pro-Billet locked-out distributors are built from strong billet aluminum for engines that run locked-out timing or an MSD timing computer. With no advance assembly, the rotor plate is welded directly to the oversized shaft. A sealed ball bearing guides the top of the shaft, while an extra-long sintered bushing stabilizes the lower portion. This extra support ensures stable and accurate timing signals throughout your engine's entire rpm range. Trigger signals are produced via a high-output magnetic pickup. This pickup is extremely accurate and never requires adjustment. A precision-manufactured reluctor is responsible for triggering the pickup. Since these distributors are designed primarily for race engines, an oversized (+.006 in.) bronze gear is installed, along with an adjustable slip collar for modified blocks, heads, or intake manifolds.
Part Type
Chevy V8 Pro Billet Distributor Black Finish
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 85505
- Product Attributes - Part Type
- Distributors
- Product Attributes - Product Line
- MSD Pro-Billet Locked-Out Distributors
- Product Attributes - UPC
- 085132855056
- Product Attributes - Distributor Cap Included
- Yes
- Product Attributes - Distributor Cap Style
- Male/HEI
- Product Attributes - Distributor Cap Type
- Small cap
- Product Attributes - Ignition Coil Included
- No
- Product Attributes - Ignition Module Included
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Trigger Style
- Magnetic
- Product Attributes - Advance Type
- Locked
- Product Attributes - Ignition Box Required
- Yes
- Product Attributes - Mechanical Tach Drive
- No
- Product Attributes - Slip Collar
- Yes
- Product Attributes - Distributor Gear Material
- Bronze
- Product Attributes - Distributor Gear Rotation
- Standard
- Product Attributes - Distributor Cap Color
- Black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Housing Finish
- Black
- Product Attributes - Marine Use
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Distributor is 6.875 - 7.375 in. tall from engine to top of distributor cap.
- Product Attributes - CARB EO Number(s)
- D-40-39
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd85505 |
| SFX Item ID | 4974340 |
| Supplier Item Code | 4974340 |
| Manufacturer SKU | 85505 |
| Manufacturer UPC | 85132855056 |
