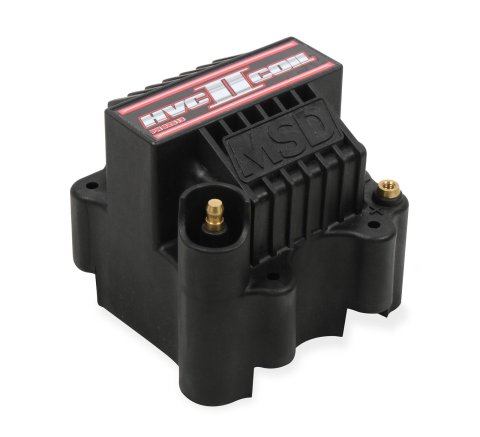

MSD HVC-2 Coils 82613 Ignition Coil, HVC-2, U-core, Square, Epoxy, Black, 45,000 V, Each
MSD HVC-2 Coils 82613 Ignition Coil, HVC-2, U-core, Square, Epoxy, Black, 45,000 V, Each
A$753.44
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MSD HVC-2 coils utilize an iron U-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material. That means it has incredible dielectric capabilities at high temperatures. The housing features far-spaced brass primary terminals, and a well-protected secondary tower for increased spark isolation. HVC-2 coils are designed for use with MSD 7 Series ignitions.
Part Type
Ignition Coil HVC 27 Series - Black
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 82613
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- MSD HVC-2 Coils
- Product Attributes - UPC
- 085132826131
- Product Attributes - Coil Style
- Remote mount
- Product Attributes - Primary Resistance
- 0.016 ohms
- Product Attributes - Coil Internal Construction
- Epoxy
- Product Attributes - Coil Wire Attachment
- Male/HEI
- Product Attributes - Coil Color
- Black
- Product Attributes - Maximum Voltage
- 45,000 V
- Product Attributes - Turns Ratio
- 70:1
- Product Attributes - Secondary Resistance
- 30.00K ohms
- Product Attributes - Inductance
- 0.25 mH
- Product Attributes - Peak Current
- 2 amps
- Product Attributes - Spark Duration
- 150 uS
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Coil Shape
- Square
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Special Attention
- Coil is for drag racing applications only. For use with MSD 7 or 8 Series ignition controls.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd82613 |
| SFX Item ID | 4974284 |
| Supplier Item Code | 4974284 |
| Manufacturer SKU | 82613 |
| Manufacturer UPC | 85132826131 |
| Alternative References | HVC-2 |
