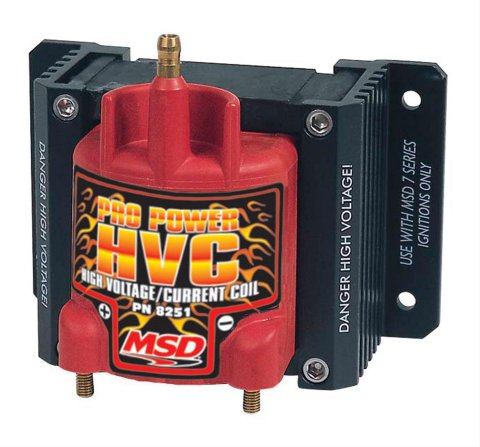

MSD Pro Power HVC Coils 8251 Ignition Coil, HVC, E-Core, Square, Epoxy, Black, 45,000 V, Each
MSD Pro Power HVC Coils 8251 Ignition Coil, HVC, E-Core, Square, Epoxy, Black, 45,000 V, Each
A$552.43
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MSD HVC coils are designed for racing applications using an MSD 7, 8, or 10 series ignition. Due to their unique design, the Pro Power HVC coils are perfect for long duration racing events or on the street. A spark plug-style terminal is used to grip the secondary wire, and a Weathertight connector is supplied for a positive connection.
Part Type
Pro Power HVC Coil
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 8251
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- MSD Pro Power HVC Coils
- Product Attributes - UPC
- 085132082513
- Product Attributes - Coil Style
- Remote mount
- Product Attributes - Primary Resistance
- 0.040 ohms
- Product Attributes - Coil Internal Construction
- Epoxy
- Product Attributes - Coil Wire Attachment
- Male/HEI
- Product Attributes - Coil Color
- Red
- Product Attributes - Maximum Voltage
- 45,000 V
- Product Attributes - Turns Ratio
- 85:1
- Product Attributes - Secondary Resistance
- 86.00K ohms
- Product Attributes - Inductance
- 1.00 mH
- Product Attributes - Peak Current
- 1.1 amps
- Product Attributes - Spark Duration
- 150 uS
- Product Attributes - Mounting Bracket Included
- Yes
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Coil Shape
- Square
- Product Attributes - Height (in.)
- 5.000 in.
- Product Attributes - Length (in.)
- 5.000 in.
- Product Attributes - Width (in.)
- 5.000 in.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- For use with MSD 7, 8, or 10 Plus ignition systems only.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd8251 |
| SFX Item ID | 4973976 |
| Supplier Item Code | 4973976 |
| Manufacturer SKU | 8251 |
| Manufacturer UPC | N/A |
