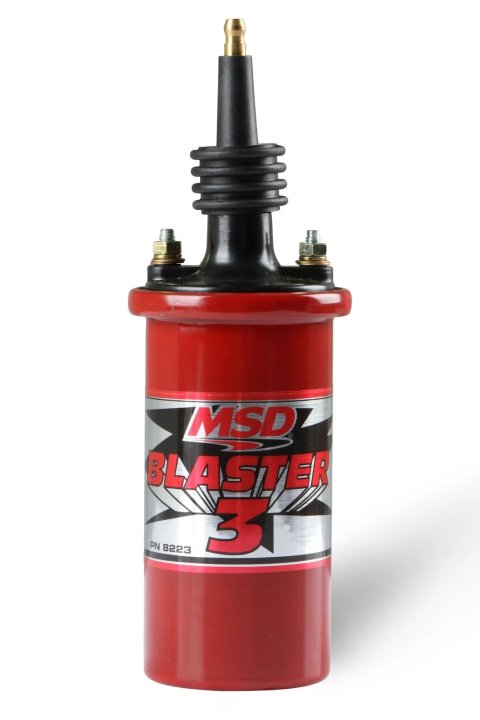

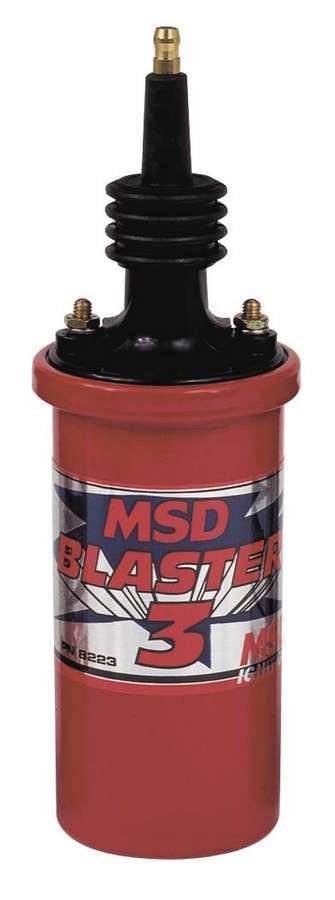

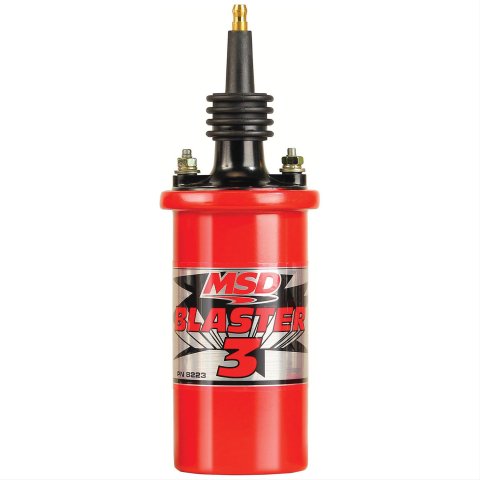

MSD Blaster 3 Ignition Coils 8223 Coil, 3, Canister, Round, Oil Filled, Red, 45,000 V, Each
MSD Blaster 3 Ignition Coils 8223 Coil, 3, Canister, Round, Oil Filled, Red, 45,000 V, Each
A$189.33
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MSD Blaster 3 coils put out 45,000 V, which are 15,000 more than stock. They also have an oil-filled metal canister and will fit stock mounting brackets. The coils have a unique Power Tower that is twice as high as a standard tower. The extra distance prevents secondary arcing between the primary terminals and the coil center. The HEI-style boot and terminal keep the coil wire secure.
Part Type
Blaster 3 Coil
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 8223
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- MSD Blaster 3 Ignition Coils
- Product Attributes - UPC
- 085132082230
- Product Attributes - Coil Style
- Remote mount
- Product Attributes - Primary Resistance
- 0.700 ohms
- Product Attributes - Coil Internal Construction
- Oil-filled
- Product Attributes - Coil Wire Attachment
- Male/HEI
- Product Attributes - Coil Color
- Red
- Product Attributes - Maximum Voltage
- 45,000 V
- Product Attributes - Turns Ratio
- 100:1
- Product Attributes - Secondary Resistance
- 4.50K ohms
- Product Attributes - Inductance
- 8.00 mH
- Product Attributes - Peak Current
- 140 mA
- Product Attributes - Spark Duration
- 350 uS
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Coil Shape
- Round
- Product Attributes - Diameter (in.)
- 2.125 in.
- Product Attributes - Height (in.)
- 7.500 in.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Due to its "oil filled" design, this coil should only be mounted in a vertical (upright) position.
- Product Attributes - CARB EO Number(s)
- D-40-37
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd8223 |
| SFX Item ID | 4974258 |
| Supplier Item Code | 4974258 |
| Manufacturer SKU | 8223 |
| Manufacturer UPC | 85132082230 |
