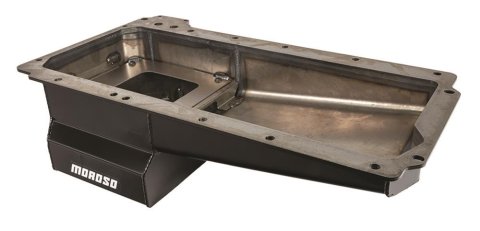

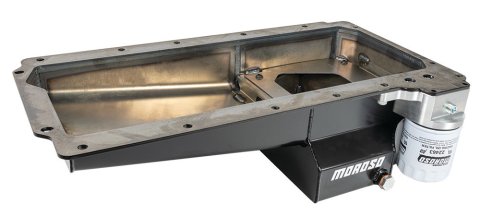

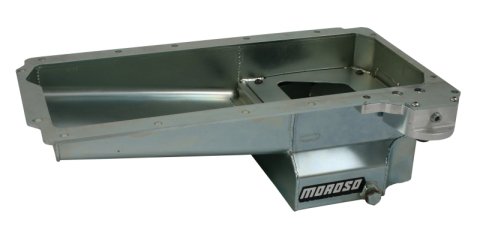

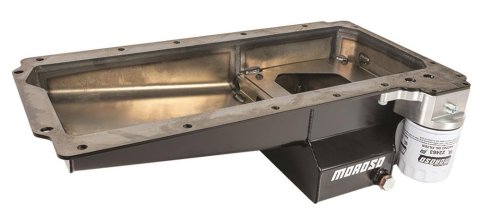

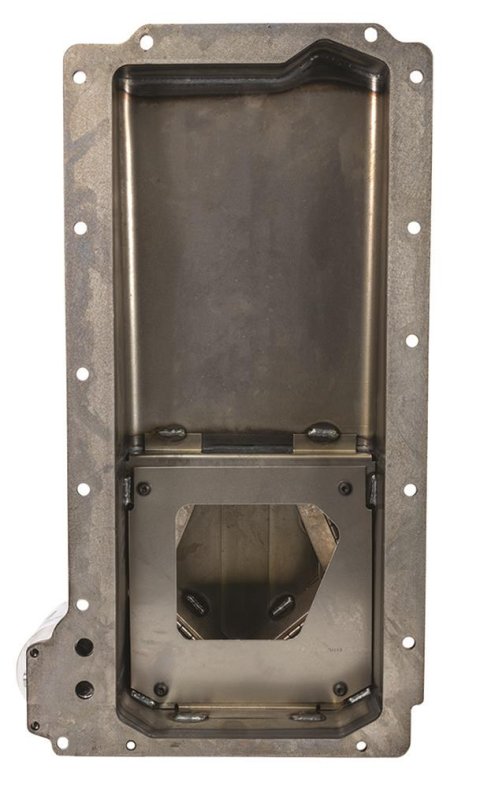

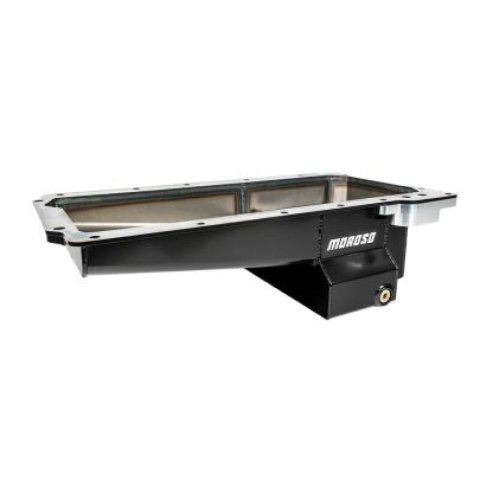

Moroso GM LS Swap (w/Rear Sump/Spin-On Filter Adapter) Wet Sump 7qt 6in Angled Steel Oil Pan - Black
Moroso GM LS Swap (w/Rear Sump/Spin-On Filter Adapter) Wet Sump 7qt 6in Angled Steel Oil Pan - Black
A$1,239.97
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Moroso drag/road racing oil pans are made with thick, precision laser-cut steel rails, and feature a 7 quart capacity that moves oil away from your rotating assembly, offering excellent oil control and horsepower savings. The pans' race-proven diamond shape, four trap door assembly, and anti-slosh baffles keep your oil contained in the oil pump pickup area during road and drag racing. Moroso drag/road race oil pans have a billet aluminum adapter with a 1/4 in. NPT sensor port that allows a 13/16th thread Moroso or OEM filter to be mounted in the stock location--no need to run a remote oil filter. These pans use a stock dipstick.
Product Overview
Moroso GM LS Swap (w/Rear Sump/Spin-On Filter Adapter) Wet Sump 7qt 6in Angled Steel Oil Pan - Black
Product Details
| Description: | Moroso GM LS Swap (w/Rear Sump/Spin-On Filter Adapter) Wet Sump 7qt 6in Angled Steel Oil Pan - Black |
|---|---|
| Part Number: | mor20143 |
Part Type
GM LS Oil Pan w/Billet Oil Filter Adapter 7qts.
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 20143
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Drag/Road Race Oil Pans
- Product Attributes - UPC
- 084663201431
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Road Race
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 7.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 4.250 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes

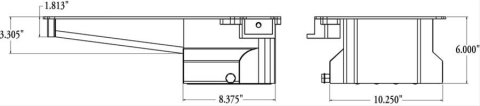

- The sump is 8.375 in. long and 10.250 in. wide. Clears 4.250 in. stroke with most steel rods. Features a billet aluminum spin-on oil filter adapter that accepts a 22mm thread Moroso 22463 or O.E.M. oil filter to be mounted in the stock location.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor20143 |
| SFX Item ID | 4103336 |
| Supplier Item Code | 4103336 |
| Manufacturer SKU | 20143 |
| Manufacturer UPC | 84663201431 |
| Alternative References | 7qt, 6in |
