Moroso Dart/Rocket Spread Rail Dirt Late Model (w/Three Pick Ups) Dry Sump 6.5in Aluminum Oil Pan

SKU: MOR21564

Oil Pans

MOR Oil Pans...

Moroso Dart/Rocket Spread Rail Dirt Late Model (w/Three Pick Ups) Dry Sump 6.5in Aluminum Oil Pan

Moroso

Moroso

Moroso Dart/Rocket Spread Rail Dirt Late Model (w/Three Pick Ups) Dry Sump 6.5in Aluminum Oil Pan

SKU: MOR21564

Oil Pans

MOR Oil Pans...

A$2,690.00
LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

Moroso circle track oil pans pans are manufactured in wet and dry sump configurations and include various levels of horsepower gain, ranging from Hobby Stock to NASCAR Winston Cup. They are available in a selection of quality materials and are a great economical choice for your performance engine.

Product Overview

Moroso Dart/Rocket Spread Rail Dirt Late Model (w/Three Pick Ups) Dry Sump 6.5in Aluminum Oil Pan

Product Details

Description:Moroso Dart/Rocket Spread Rail Dirt Late Model (w/Three Pick Ups) Dry Sump 6.5in Aluminum Oil Pan
Part Number:mor21564

Part Type

SBC Oil Pan Dart Spread Rail DLM 3 P/U Dry Sump

Data: v4.2 - Upd: 2026-10-24 03:14:23

Specifications

Product Attributes - Brand
Moroso
Product Attributes - Manufacturer's Part Number
21564
Product Attributes - Part Type
Oil Pans
Product Attributes - Product Line
Moroso Circle Track Oil Pans
Product Attributes - UPC
084663215643
Product Attributes - Sump Style
Dry
Product Attributes - Oil Pan Style
Circle Track
Product Attributes - Rear Main Seal Style
2-piece
Product Attributes - Sump Location
Full
Product Attributes - Stroker Clearanced
Yes
Product Attributes - Maximum Stroke with OE Rod
4.250 in.
Product Attributes - Dipstick Provision
No
Product Attributes - Dipstick Included
No
Product Attributes - Oil Pan Depth (in.)
5.500-6.500
Product Attributes - Oil Pan Material
Aluminum
Product Attributes - Oil Pan Color
Natural
Product Attributes - Baffled
Yes
Product Attributes - Kicked Out
Yes
Product Attributes - Kickout Position
Passenger side
Product Attributes - Windage Tray Included
No
Product Attributes - Pickup Included
Yes
Product Attributes - Oil Pump Included
No
Product Attributes - Oil Pump Driveshaft Included
No
Product Attributes - Crank Scraper Included
No
Product Attributes - Drain Plug Thread Size
3/4 in.-16
Product Attributes - Gaskets Included
No
Product Attributes - Hardware Included
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes

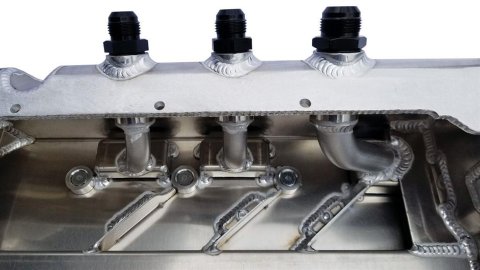

Fits dirt late model and others, check measurements for fit. Large kick-out design for maximum horsepower and oil temperature reduction. Two -12 AN and one -16 AN female pickups. Oil collection trough with internal runners to direct oil to the pickups. Internal rear baffle that prevents oil from climbing up the back of the oil pan.

Reference Information

Brand Name/s Moroso
StreetFX SKU mor21564
SFX Item ID 4103509
Supplier Item Code 4103509
Manufacturer SKU 21564
Manufacturer UPC 84663215643
Alternative References 6.5in

Compatibility

Application Data
  • MakeCHEVROLET
    Beginning Year1967
    Ending Year2002
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesFits dirt late model and others, check measurements for fit. Large kick-out design for maximum horsepower and oil temperature reduction. Two -12 AN and one -16 AN female pickups. Oil collection trough with internal runners to direct oil to the pickups. Internal rear baffle that prevents oil from climbing up the back of the oil pan.
  • MakeCHEVROLET
    Beginning Year1970
    Ending Year1980
    Engine TypeV8
    Engine Size6.6L/400
    Engine FamilyChevy small block Gen I
    Application NotesFits dirt late model and others, check measurements for fit. Large kick-out design for maximum horsepower and oil temperature reduction. Two -12 AN and one -16 AN female pickups. Oil collection trough with internal runners to direct oil to the pickups. Internal rear baffle that prevents oil from climbing up the back of the oil pan.
  • MakeCHEVROLET
    Beginning Year1997
    Ending Year2004
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Application NotesFits dirt late model and others, check measurements for fit. Large kick-out design for maximum horsepower and oil temperature reduction. Two -12 AN and one -16 AN female pickups. Oil collection trough with internal runners to direct oil to the pickups. Internal rear baffle that prevents oil from climbing up the back of the oil pan.
  • MakeCHEVROLET
    Beginning Year1999
    Ending Year2019
    Engine TypeV8
    Engine Size6.0L/364
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Application NotesFits dirt late model and others, check measurements for fit. Large kick-out design for maximum horsepower and oil temperature reduction. Two -12 AN and one -16 AN female pickups. Oil collection trough with internal runners to direct oil to the pickups. Internal rear baffle that prevents oil from climbing up the back of the oil pan.
  • MakeCHEVROLET
    Beginning Year2006
    Ending Year2015
    Engine TypeV8
    Engine Size7.0L/427
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Application NotesFits dirt late model and others, check measurements for fit. Large kick-out design for maximum horsepower and oil temperature reduction. Two -12 AN and one -16 AN female pickups. Oil collection trough with internal runners to direct oil to the pickups. Internal rear baffle that prevents oil from climbing up the back of the oil pan.
  • MakeCHEVROLET
    Beginning Year2008
    Ending Year2017
    Engine TypeV8
    Engine Size6.2L/376
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Application NotesFits dirt late model and others, check measurements for fit. Large kick-out design for maximum horsepower and oil temperature reduction. Two -12 AN and one -16 AN female pickups. Oil collection trough with internal runners to direct oil to the pickups. Internal rear baffle that prevents oil from climbing up the back of the oil pan.
