Moroso GM BBC Stroker Straight Box Sump Oil Pan

SKU: MOR20025

Oil Pans

MOR Oil Pans...

Moroso

Moroso GM BBC Stroker Straight Box Sump Oil Pan

SKU: MOR20025

Oil Pans

MOR Oil Pans...

Sale ends in Calculating... Fri 30 Oct, 1:52 am AEST

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

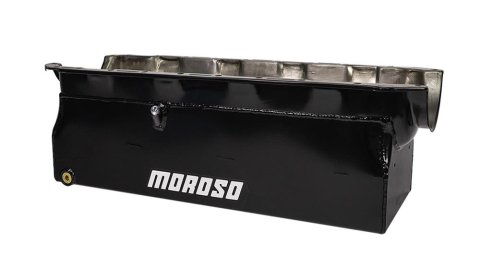

Moroso straight box sump oil pans clear 4.75 in. stroke with most steel rods, 4.5 in. stroke with most aluminum rods. The core-based pans use the stock bolt pattern—and feature dual trap doors, rear anti-climb baffle, and removable anti-slosh baffle for improved oil control. The replacement units are constructed of steel with a clear zinc finish for protection. They're designed for use with 168 and 153-tooth flywheel combinations.

Product Overview

Moroso GM BBC Stroker Straight Box Sump Oil Pan

Product Details

Description:	Moroso GM BBC Stroker Straight Box Sump Oil Pan
Part Number:	mor20025

Part Type

BBC 11qt Wet Sump Oil Pan Straight Box Sump

Data: v4.2 - Upd: 2026-10-28 23:35:37

Specifications

Product Attributes - Brand: Moroso
Product Attributes - Manufacturer's Part Number: 20025
Product Attributes - Part Type: Oil Pans
Product Attributes - Product Line: Moroso Straight Box Sump Oil Pans
Product Attributes - UPC: 084663200250
Product Attributes - Sump Style: Wet
Product Attributes - Oil Pan Style: Street/Strip
Product Attributes - Rear Main Seal Style: 2-piece
Product Attributes - Sump Location: Rear
Product Attributes - Dipstick Location: Passenger side
Product Attributes - Oil Pan Capacity: 11.00 quarts
Product Attributes - Stroker Clearanced: Yes
Product Attributes - Maximum Stroke with OE Rod: 4.750 in.
Product Attributes - Dipstick Provision: Yes
Product Attributes - Dipstick Included: No
Product Attributes - Oil Pan Depth (in.): 8.000
Product Attributes - Oil Pan Material: Steel
Product Attributes - Oil Pan Color: Black
Product Attributes - Baffled: Yes
Product Attributes - Kicked Out: No
Product Attributes - Windage Tray Included: No
Product Attributes - Pickup Included: No
Product Attributes - Oil Pump Included: No
Product Attributes - Oil Pump Driveshaft Included: No
Product Attributes - Crank Scraper Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Hardware Included: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Can be used in Drag race, Mud Truck, and Marine applications. Check clearance for your application.

Reference Information

Brand Name/s	Moroso
StreetFX SKU	mor20025
SFX Item ID	4105883
Supplier Item Code	4105883
Manufacturer SKU	20025
Manufacturer UPC	84663200250

Compatibility

Application Data

Make	CHEVROLET
Beginning Year	1965
Ending Year	1970
Engine Type	V8
Engine Size	6.5L/396
Engine Family	Chevy big block Mark IV
Application Notes	Can be used in Drag race, Mud Truck, and Marine applications. Check clearance for your application.

Make	CHEVROLET
Beginning Year	1967
Ending Year	1969
Engine Type	V8
Engine Size	7.0L/427
Engine Family	Chevy big block Mark IV
Application Notes	Can be used in Drag race, Mud Truck, and Marine applications. Check clearance for your application.

Make	CHEVROLET
Beginning Year	1970
Ending Year	1972
Engine Type	V8
Engine Size	6.6L/402
Engine Family	Chevy big block Mark IV
Application Notes	Can be used in Drag race, Mud Truck, and Marine applications. Check clearance for your application.

Make	CHEVROLET
Beginning Year	1970
Ending Year	1990
Engine Type	V8
Engine Size	7.4L/454
Engine Family	Chevy big block Mark IV
Application Notes	Can be used in Drag race, Mud Truck, and Marine applications. Check clearance for your application.
