Blueprint Engines

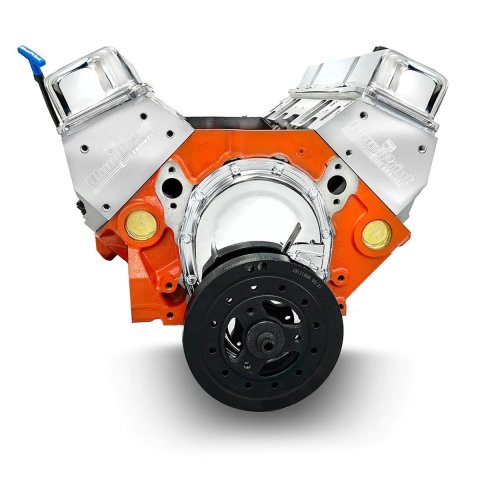

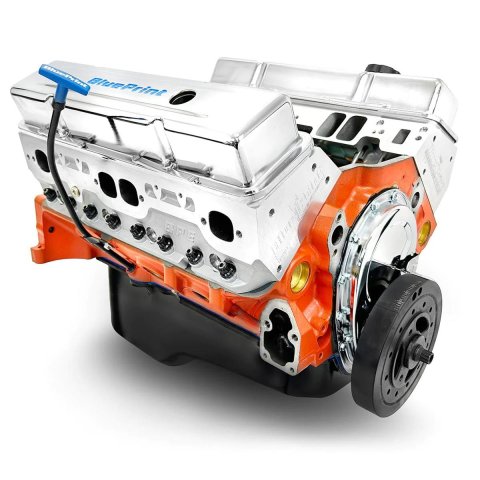

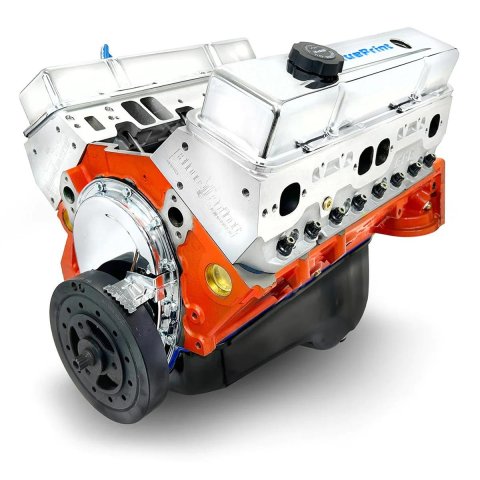

BluePrint Engines Pro Series Chevy 427 C.I.D. 540 HP Base Long Block Crate PS4272CT1 Engine, Block, Stroker, HP, 535 TQ, New Block, Aluminum Heads, 4-Bolt Mains, Chevrolet, Small Block, Each

SKU: MLLPS4272CT1

Crate Engines
BluePrint Engines Pro Series Chevy 427 C.I.D. 540 HP Base Long Block Crate PS4272CT1 Engine, Block, Stroker, HP, 535 TQ, New Block, Aluminum Heads, 4-Bolt Mains, Chevrolet, Small Block, Each

Blueprint Engines

BluePrint Engines Pro Series Chevy 427 C.I.D. 540 HP Base Long Block Crate PS4272CT1 Engine, Block, Stroker, HP, 535 TQ, New Block, Aluminum Heads, 4-Bolt Mains, Chevrolet, Small Block, Each

SKU: MLLPS4272CT1

Crate Engines
A$24,354.91
IN STOCK! Est Ship 3-7 Days days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

BluePrint Pro Series 427 c.i.d. base long block crate engines have the muscle that you need to impress. These powerhouses feature a 30-month/50,000-mile warranty and are the perfect choice for drivable and reliable high-end performance. Additionally, the BluePrint Pro Series Chevy 427 c.i.d. base crate engine assemblies are dyno-tested and include the dyno sheets.

Pro Series 427 base long blocks feature:

* 540 hp, 535 ft.-lb., compression ratio 10.0:1
* BluePrint cast iron block with 4-bolt main
--4.125 in. bore
--Mechanical fuel pump provision
--Passenger side dipstick
--Drilled and tapped for clutch linkage
* Forged crankshaft and connecting rods
* Forged pistons with rings
* Internal front/internal rear balanced rotating assembly
* BluePrint aluminum cylinder heads
--64cc chamber
--2.08 in. intake/1.60 in. exhaust valves
--220cc intake/67cc exhaust runners
* Hydraulic roller cam
--.577 intake/.577 exhaust lift
--240 intake/248 exhaust duration @ .050
--112 degree lobe separation
* Ignition timing
--- Initial timing 10 to16 degrees and total timing 32 to 34 degrees
* Valve covers, oil pan, and timing cover
* Harmonic balancer

Part Type

Crate Engines

Data: v4.2 - Upd: 2026-10-22 02:10:57

Specifications

Product Attributes - Brand
BluePrint Engines
Product Attributes - Manufacturer's Part Number
PS4272CT1
Product Attributes - Part Type
Crate Engines
Product Attributes - Product Line
BluePrint Engines Pro Series Chevy 427 C.I.D. 540 HP Base Long Block Crate Engines
Product Attributes - UPC
00887753744340
Product Attributes - Crate Engine Family
Chevy Small Block
Product Attributes - Actual Engine Displacement
7.0L/427
Product Attributes - Crate Engine Cylinder Head Material
Aluminum
Product Attributes - Engine Block Material
Cast iron
Product Attributes - Advertised Compression Ratio
10.0:1
Product Attributes - Assembled
Yes
Product Attributes - Engine Balance
Internal
Product Attributes - Cam Style
Hydraulic roller, OE roller
Product Attributes - Rear Main Seal Style
1-piece
Product Attributes - Intake Manifold Included
No
Product Attributes - Cylinder Heads Included
Yes
Product Attributes - Carburetor Included
No
Product Attributes - Throttle Body Included
No
Product Attributes - Distributor Included
No
Product Attributes - Oil Pan Included
Yes
Product Attributes - Valve Covers Included
Yes
Product Attributes - Timing Cover Included
Yes
Product Attributes - Water Pump Included
No
Product Attributes - Harmonic Balancer Included
Yes
Product Attributes - Flexplate Included
No
Product Attributes - Flywheel Included
No
Product Attributes - Air Cleaner Included
No
Product Attributes - Spark Plugs Included
No
Product Attributes - Spark Plug Wires Included
No
Product Attributes - Computer Included
No
Product Attributes - Wiring Harness Included
No
Product Attributes - Stall Speed Rating RPM Range
2,200-3,200
Product Attributes - Supercharger Included
No
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Features a 4-bolt main block and a forged rotating assembly.

Reference Information

Brand Name/s Blueprint Engines
StreetFX SKU mllPS4272CT1
SFX Item ID 5182871
Supplier Item Code 5182871
Manufacturer SKU PS4272CT1
Manufacturer UPC N/A
Alternative References 4-Bolt

Compatibility

Application Data
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size4.3L/262
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size4.3L/265
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size4.4L/267
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size4.6L/283
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size4.9L/302
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size5.0L/307
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size5.3L/327
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size5.4L/327
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size6.6L/400
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size7.0L/427
    Engine FamilyChevy small block Gen I
    Cylinder Head TypeBluePrint Engines Muscle Series
    Valves Per Engine16
    Application NotesFeatures a 4-bolt main block and a forged rotating assembly.
