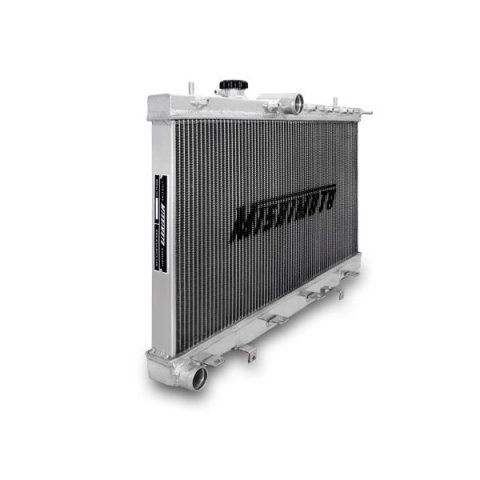

Mishimoto 01-07 Subaru WRX and STi Manual X-LINE (Thicker Core) Aluminum Radiator
Mishimoto 01-07 Subaru WRX and STi Manual X-LINE (Thicker Core) Aluminum Radiator
Sale ends in Calculating...
A$882.83 A$900.67
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
When properly maintained, the Subaru flat-four is well known for its substantial power and impressive reliability. Proper regulation of coolant temperature is key to extending the life of your EJ-powered Subaru. Highly modified turbocharger setups and aggressive driving can result in high temperatures, which increases wear on internal engine components. The X-Line Performance Aluminum Radiator is engineered specifically for the 2001-2007 Subaru WRX and STI and features a large three-row core and full aluminum construction. This design yields optimal temperatures even in the most demanding environments.--This radiator also features a 100% brazed aluminum core with TIG-welded end tanks for increased durability, longevity, and a substantial increase in coolant capacity. The large three-row core enhances surface contact, resulting in improved efficiency, improved heat transfer, and lower engine coolant temperatures for your Subaru. The Mishimoto Subaru WRX and STI radiator includes a high-pressure 1.3 bar radiator cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. Additionally, a second radiator cap is included for use on the expansion tank. Included with this radiator is a Mishimoto magnetic drain plug that removes metal fragments circulating in the coolant system, thus further protecting your engine. Whether you are looking for a reliable stock replacement radiator or a heat exchanger efficient enough for track abuse, the Mishimoto Subaru WRX and STI X-Line Performance Aluminum Radiator is an ideal choice. As with all our products, this radiator is backed by the Mishimoto Lifetime Warranty.
Product Overview
When properly maintained, the Subaru flat-four is well known for its substantial power and impressive reliability. Proper regulation of coolant temperature is key to extending the life of your EJ-powered Subaru. Highly modified turbocharger setups and aggressive driving can result in high temperatures, which increases wear on internal engine components. The X-Line Performance Aluminum Radiator is engineered specifically for the 2001-2007 Subaru WRX and STI and features a large three-row core and full aluminum construction. This design yields optimal temperatures even in the most demanding environments.--This radiator also features a 100% brazed aluminum core with TIG-welded end tanks for increased durability, longevity, and a substantial increase in coolant capacity. The large three-row core enhances surface contact, resulting in improved efficiency, improved heat transfer, and lower engine coolant temperatures for your Subaru. The Mishimoto Subaru WRX and STI radiator includes a high-pressure 1.3 bar radiator cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. Additionally, a second radiator cap is included for use on the expansion tank. Included with this radiator is a Mishimoto magnetic drain plug that removes metal fragments circulating in the coolant system, thus further protecting your engine. Whether you are looking for a reliable stock replacement radiator or a heat exchanger efficient enough for track abuse, the Mishimoto Subaru WRX and STI X-Line Performance Aluminum Radiator is an ideal choice. As with all our products, this radiator is backed by the Mishimoto Lifetime Warranty.
Features and Benefits
- Large three-row aluminum core provides additional coolant capacity, substantial coolant surface contact, and optimal coolant temperatures even in the most demanding environments
- Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
- Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
Product Details
| Year | Make |
|---|---|
| Alternate Part Number: | MMRADWRX01X |
| Core Finish: | Uncoated |
| Core Height: | 27.24 |
| Core Length: | 13.54 |
| Core Material: | Aluminum |
| Core Row Quantity: | 3 |
| Core Thickness: | 2 |
| Description: | Subaru WRX and STI X-Line Performance Aluminum Radiator |
| Dimensions: | 28.4" x 17.2" x 2.5" |
| Down Flow Or Cross Flow Type: | Down Flow |
| Drain Plug Included: | Yes |
| Drain Plug Thread Size: | M12 - 1.5 |
| Fluid Capacity: | 0 |
| Inlet Diameter: | 1.5 |
| Inlet Location: | Top Left |
| Install Difficulty: | 3 |
| Installation Difficulty: | 3 |
| Material: | Aluminum |
| Outlet Diameter: | 1.5 |
| Outlet Location: | Bottom Left |
| Overall Height: | 28.4 |
| Overall Length: | 17.2 |
| Overall Width: | 2.5 |
| Part Number: | misMMRAD-WRX-01X |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Y/N: | Y |
| Radiator Cap Included: | Yes |
| SellingPoint01: | Large three-row aluminum core provides additional coolant capacity, substantial coolant surface contact, and optimal coolant temperatures even in the most demanding environments |
| SellingPoint02: | Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency |
| SellingPoint03: | Manufactured with robust TIG-welded end tanks for improved strength and extended longevity |
| SellingPoint04: | Increased coolant capacity directly results in improved cooling efficiency |
| SellingPoint05: | Now includes two 1.3 bar high-pressure caps, raising the boiling point of engine coolant to provide a safer, more efficient system |
| SellingPoint06: | Two-way expansion tank cap and one-way radiator cap ensure proper flow and function of cooling system to avoid overheating |
| SellingPoint07: | Includes magnetic drain plug to prevent metal fragments and debris from circulating in coolant system |
| SellingPoint08: | Mishimoto Lifetime Warranty |
| SellingPoint09: | N/A |
| SellingPoint10: | N/A |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| Size: | 28.4in x 17.2in x 2.5in |
| TechSpec Applications: | Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007 |
| TechSpec Chassis Codes: | GD |
| TechSpec Core Height (in): | 27.24 |
| TechSpec Core Length (in): | 13.54 |
| TechSpec Core Thickness (in): | 2 |
| TechSpec DPI: | 2703 |
| TechSpec Drain Plug Thread Size: | M12 x 1.5 |
| TechSpec Engine Codes: | EJ205--EJ255--EJ257 |
| TechSpec Fluid Capacity (gal): | N/A |
| TechSpec Includes: | (1) Mishimoto Radiator--(1) Mishimoto Two-Way Radiator Cap--(1) Mishimoto One-Way Radiator Cap--(1)1/16-inch NPT Plug--(1) Magnetic Drain Plug--Fan Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in): | 1.5 |
| TechSpec Material: | N/A |
| TechSpec Note: | This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.--Caution--The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).--It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and |
| TechSpec Outlet (in): | 1.5 |
| TechSpec Overall Height (in): | 28.4 |
| TechSpec Overall Length (in): | 17.2 |
| TechSpec Overall Width (in): | 2.5 |
| TechSpec Rows: | 3 |
| Transmission Oil Cooler Fitting Type: | N/A |
| Transmission Oil Cooler Included: | No |
Application Summary
2006 Saab 9-2X 2.5i 2.5 Liter TY754, 2005 Saab 9-2X Aero 2.0 Liter TY754, 2006 Saab 9-2X Aero 2.5 Liter TY754, 2005 Saab 9-2X Linear 2.5 Liter TY754, 2002-2005 Subaru Impreza WRX 2.0 Liter TY754, 2006-2007 Subaru Impreza WRX 2.5 Liter TY754, 2006-2007 Subaru Impreza WRX Limited 2.5 Liter TY754, 2004-2007 Subaru Impreza WRX STI 2.5 Liter TY856, 2007 Subaru Impreza WRX STI Limited 2.5 Liter TY856, 2006-2007 Subaru Impreza WRX TR 2.5 Liter TY754
Part Type
Radiator
Features
- Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
- Large three-row aluminum core provides additional coolant capacity, substantial coolant surface contact, and optimal coolant temperatures even in the most demanding environments
- Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
Specifications
- Product Attributes - UPC
- 748354803297
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Notes
- Upper radiator hose trimming may be necessary.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Radiators
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Performance Radiators
- Product Attributes - Row Quantity
- 3
- Product Attributes - Inlet Location
- Center upper
- Product Attributes - Radiator Style
- Downflow
- Product Attributes - Outlet Location
- Lower driver side
- Product Attributes - Radiator Finish
- Natural
- Product Attributes - Core Width (in.)
- 27.24 in.
- Product Attributes - Core Height (in.)
- 13.54 in.
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Overall Width (in.)
- 28.40 in.
- Product Attributes - Radiator Inlet Size
- 1.500 in.
- Product Attributes - Transmission Cooler
- No
- Product Attributes - Core Thickness (in.)
- 2.00 in.
- Product Attributes - Overall Height (in.)
- 17.20 in.
- Product Attributes - Radiator Outlet Size
- 1.500 in.
- Product Attributes - Radiator Cap Included
- No
- Product Attributes - Overall Thickness (in.)
- 2.50
- Product Attributes - Manufacturer's Part Number
- MMRAD-WRX-01X
- Product Attributes - Trans Cooler Adapter Fittings Included
- No
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMRAD-WRX-01X |
| SFX Item ID | 4048838 |
| Supplier Item Code | 4048838 |
| Manufacturer SKU | MMRAD-WRX-01X |
| Manufacturer UPC | 748354803297 |
| Alternative References | mio-mmradwrx01x, MIMMMRAD-WRX-01X |
Brochures
Compatibility
2006 Saab 9-2X 2.5i 2.5 Liter TY754, 2005 Saab 9-2X Aero 2.0 Liter TY754, 2006 Saab 9-2X Aero 2.5 Liter TY754, 2005 Saab 9-2X Linear 2.5 Liter TY754, 2002-2005 Subaru Impreza WRX 2.0 Liter TY754, 2006-2007 Subaru Impreza WRX 2.5 Liter TY754, 2006-2007 Subaru Impreza WRX Limited 2.5 Liter TY754, 2004-2007 Subaru Impreza WRX STI 2.5 Liter TY856, 2007 Subaru Impreza WRX STI Limited 2.5 Liter TY856, 2006-2007 Subaru Impreza WRX TR 2.5 Liter TY754
