Manley Performance
Manley Ford XR6 4.0L Barra 240T Piston - 3.633 in. Bore 1.215 in. CH -10.00 CC
man628100C-1
A$493.35

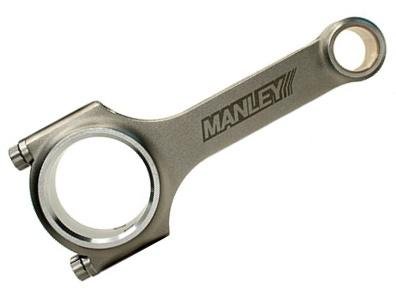

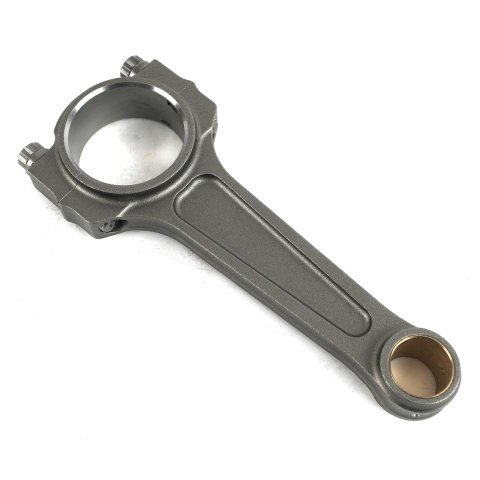

Manley Mitsubishi Eclipse 2.0L 4G63 Turbo Tuff Pro Series I Beam Connecting Rod (Single Rod)
Manley Mitsubishi Eclipse 2.0L 4G63 Turbo Tuff Pro Series I Beam Connecting Rod (Single Rod)
A$503.03
IN STOCK! Est Ship 3-5 Days days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Manley Turbo Tuff® I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.
Part Type
Engine Connecting Rod
Features
- Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
- NHRA Legal Certification for some SKUs - Stock and Super Stock
- Versatile Weight Options: Tour Lites, Light, Standard, Heavy
Specifications
- Product Attributes - Brand
- Manley
- Product Attributes - Manufacturer's Part Number
- 14400-1
- Product Attributes - Part Type
- Connecting Rods
- Product Attributes - Product Line
- Manley Pro Series I-Beam Turbo Tuff Connecting Rods
- Product Attributes - UPC
- 807298009933
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 5.905 in.
- Product Attributes - Connecting Rod Beam Style
- I-beam
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Pin End Bore Diameter
- 0.867 in.
- Product Attributes - Big End Bore Diameter (in.)
- 1.8900
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Cap Retention Style
- Cap screw
- Product Attributes - Big End Width (in.)
- 1.038
- Product Attributes - Clearanced for Stroker
- Yes
- Product Attributes - Connecting Rod Bolt Brand
- ARP
- Product Attributes - Connecting Rod Bolt Diameter
- 3/8 in.
- Product Attributes - Connecting Rod Bolt Material
- ARP2000 alloy
- Product Attributes - Fastener Tensile Strength (psi)
- 200,000 psi
- Product Attributes - Connecting Rod Bolt Head Style
- 12-point
- Product Attributes - Approximate Connecting Rod Weight (g)
- 637
- Product Attributes - Advertised Horsepower Rating
- 1,000 hp
- Product Attributes - Weight Matched Set
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Magnafluxed
- Yes
- Product Attributes - Connecting Rod Color
- Shot-peened
Reference Information
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man14400-1 |
| SFX Item ID | 4060143 |
| Supplier Item Code | 4060143 |
| Manufacturer SKU | 14400-1 |
| Manufacturer UPC | 807298009933 |
| Alternative References | 2.0L, 4G63 |
