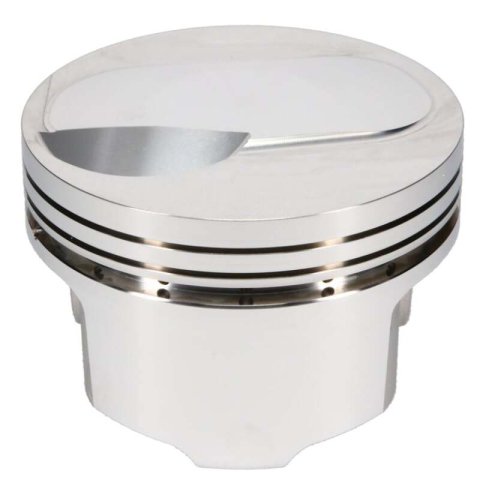

JE Pistons Chevrolet Big Block 4.500in Bore 1.645in CH 1.00 CC Piston Kit
JE Pistons Chevrolet Big Block 4.500in Bore 1.645in CH 1.00 CC Piston Kit
A$1,418.45
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
SRP forged pistons are born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. SRP Pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. SRP pistons are made 100% in the USA. Available for GM Big Block Chevy Engines. Pistons include
Application Summary
Chevrolet Big Block 502
Part Type
Engine Piston Kit
Features
- Designed specifically for GM Big Block Chevy Engines. to provide optimized performance durability
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion, SRP Pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics.
- Includes high-quality wrist pins, forced wrist pin oiling and locks
- Made 100% in the USA
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 281919
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons Big Block Open Chamber Dome Top Pistons
- Product Attributes - UPC
- 193564249845
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.500 in.
- Product Attributes - Bore (mm)
- 114.300mm
- Product Attributes - Stroke
- 4.000 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Actual Engine Displacement
- 8.2L/502
- Product Attributes - Rod Length
- 6.135 in.
- Product Attributes - Piston Style
- Dome, with single valve relief
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.645 in.
- Product Attributes - Piston Head Volume (cc)
- -1.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- No
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.990 in.
- Product Attributes - Piston Ring Thickness
- 0.064 in. x 0.064 in. x 0.188 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.064 in.
- Product Attributes - Second Ring Thickness
- 0.064 in.
- Product Attributes - Oil Ring Thickness
- 0.188 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep281919 |
| SFX Item ID | 4361469 |
| Supplier Item Code | 4361469 |
| Manufacturer SKU | 281919 |
| Manufacturer UPC | 193564249845 |
| Alternative References | 4.500in, 1.645in |
Compatibility
Chevrolet Big Block 502
