Product Overview

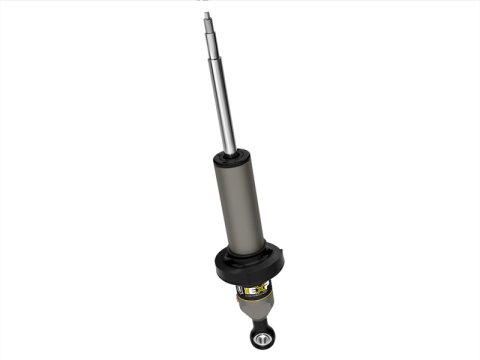

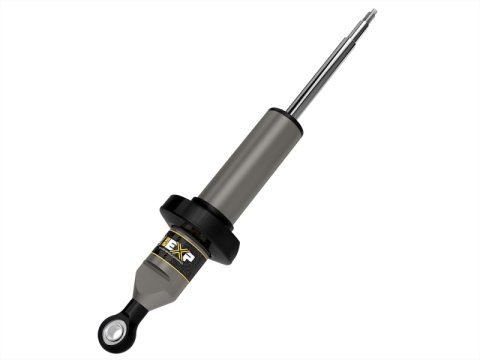

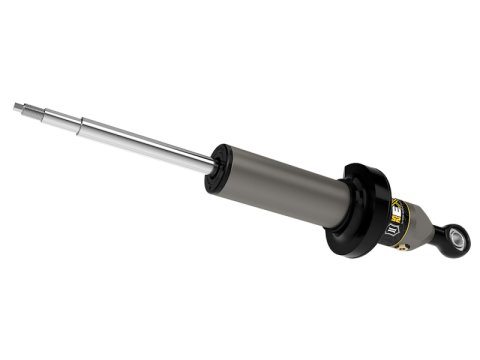

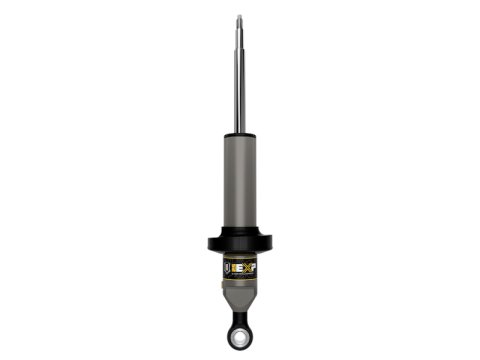

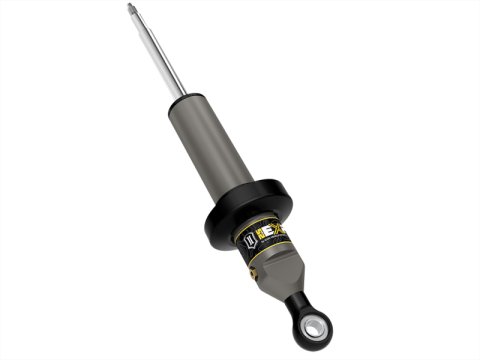

The 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra’s OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicle’s OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3” of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

Features and Benefits

• Vehicle specific design for 2022-2025 Toyota Tundra and 2023-2025 Sequoia
• Fully rebuildable and re-tunable
• PTFE lined spherical bearing for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-3” of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offers excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish

Product Details

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53192	ICON 2022+ Toyota Tundra 0-3in Stage 2 Suspension System Billet (2x ico58671, 1x ico55154, 2x ico56516, 1x ico58561DJ)
	icoK53191	ICON 2022+ Toyota Tundra 0-2.25in Stage 2 Suspension System (2x ico58671, 1x ico55154, 2x ico56516)
	icoK53192T	ICON 2022+ Toyota Tundra 2-3in Stage 2 Tubular Suspension System (2x ico58671, 1x ico55154, 2x ico56516, 1x ico58461DJ)
	icoK53231	ICON 2023 Toyota Sequoia 1.75-4in Stage 1 Suspension System (2x ico58671, 1x ico55154, 2x ico56516, 1x ico51212)
	icoK53232	ICON Vehicle Dynamics Suspension Leveling & Lift Kits K53232 23-24 SEQUOIA 0-2.13" STAGE 2 SUSPENSION SYSTEM BILLET
	icoK53232T	ICON Vehicle Dynamics Suspension Leveling & Lift Kits K53232T 23-24 SEQUOIA 0-2.13" STAGE 2 SUSPENSION SYSTEM TUBULAR
