Description

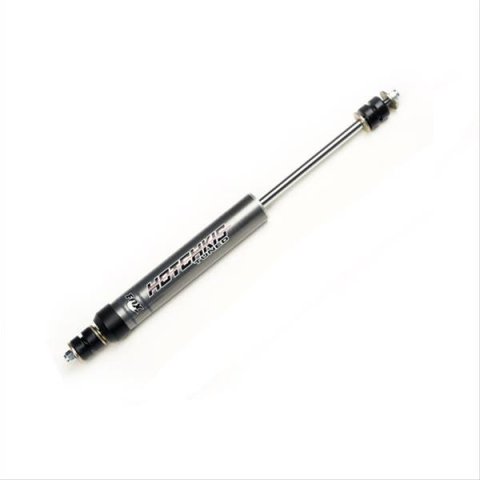

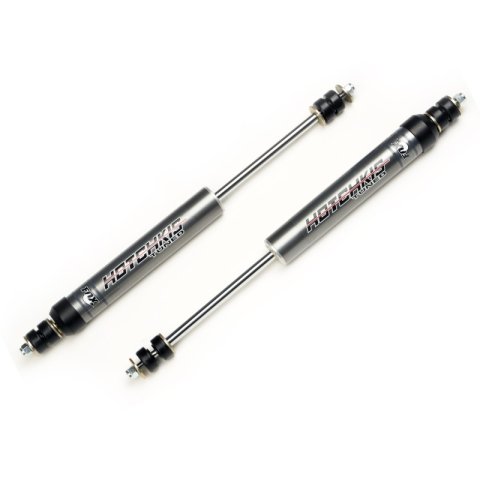

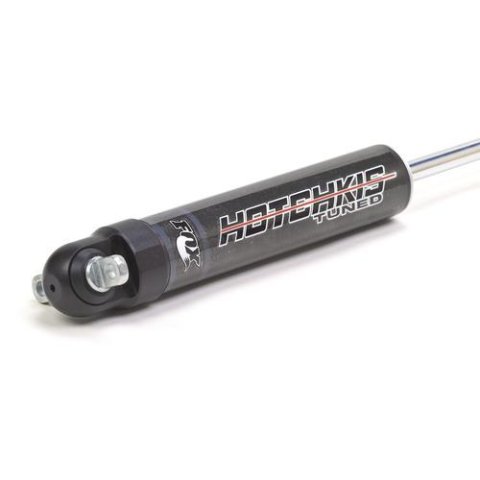

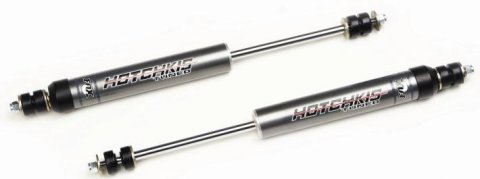

The Hotchkis Tuned, 1.5 Street Performance Series shock absorbers manufactured by Fox, have been specifically tuned by Hotchkis ride engineers bringing a smooth ride and exceptional control to your muscle car. The Hotchkis 1.5 Street Performance Series shock absorbers feature the latest, cutting edge mono tube shock technology in a lightweight, smooth-bore, Type III hard anodized aluminum body. The shocks feature, smooth riding, digressive disc technology, a high-flow piston, specially formulated oil, and high pressure nitrogen for consistent performance under varying conditions and temperatures. Each shock is application tuned to offer superior ride comfort as well as vehicle control. For years of durability the 1.5 SPS shock features 1/2 in. hard chrome plated, heat treated alloy shaft, subjected to 100 hour salt spray testing. To prevent contaminants from entering the shock, the rod guide employs a wiper/scraper dual seal which cleans the shaft before reaching the main seal. End caps are black anodized 6061-T6 billet aluminum, and feature polyurethane bushings. CNC machined cross bars, and vehicle specific mounting hardware makes these shocks a direct replacement for OE. Bolt some on today and feel the difference.

Product Overview

The Hotchkis Sport Suspension Tuned 71020016 Rear 1.5 Street Performance Series shock absorbers manufactured by Fox have been specifically tuned by Hotchkis ride engineers to provide smooth ride and exceptional control for your 1964 ?-1970 Ford Mustang Coupe Fastback or Convertible. The Hotchkis 1.5 Street Performance Series shock absorbers feature the latest cutting edge lightweight smooth-bore Type 3 hard anodized seamless aluminum mono tube body. Application-tuned smooth riding digressive disc technology specially formulated oil and high pressure nitrogen provides consistent performance. Black anodized 6061-T6 billet aluminum end caps ? hard chrome plated heat treated alloy shafts are subjected to 100 hour salt spray testing. These shocks feature a duel sealing pack system wiper seal and scraper seal which cleans the shaft before reaching the main seal and preventing contaminants from entering the shock. End caps are black anodized 6061-T6 billet aluminum and feature polyurethane bushings. CNC machined cross bars and vehicle specific mounting hardware makes these shocks a direct replacement for OE. Take your 1964 ?-1966 Mustang to the next level of performance for autocross and track days. Hotchkis-Tuned 1.5 Street Performance Series Shocks are one of the fastest easiest and most dramatic modifications you can make to the first generation Mustang improving grip steering response and control. Developed as part of a balanced system Hotchkis Sport Rear Shocks give your 1964 ? - 1966 Mustang balanced handling especially when combined with Hotchkis Front Sport Coil Springs Front Sport Shocks Rear Sport Leaf Springs and Sport Sway Bars. These shocks are made in the USA and are built with heavy duty billet aluminum end caps polyurethane bushings and ? hard chrome plated heat treated alloy shafts ensuring years of trouble free operation. Lifetime Warranty and made in the USA. Bolt a pair on today and feel the difference.

Features and Benefits

• Proudly Made In The USA With A Lifetime Warranty

Product Details

Year	Make
Collapsed Length (in.):	OEM
Collapsed Length:	OEM
Description:	1.5 Street Performance Shock
Extended Length (in.):	OEM
Extended Length:	OEM
Part Number:	hot71020016
Position:	Rear
Shock Stroke (in.):	OEM
Shock Stroke:	OEM
Title:	Hotchkis Performance 1.5 SPS AL R. Shock, Mustang - 71020016

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	hot80041-2	Hotchkis 67-70 Ford Mustang Stage 2 TVS Kit (1x hot2431, 1x hot14416, 1x hot1614, 2x hot71020016, 1x hot4017, 1x hot22115, 1x hot1118L-A, 1x hot1118U, 1x hot1930F, 2x hot70020017)
	hot80040-2	Hotchkis 1964 1/2-66 Ford Mustang Stage 2 TVS Kit *For Use with Rear Ends with 2.8in OD Axle Tubes* (1x hot1614, 1x hot14414, 2x hot70020016, 2x hot71020016, 1x hot2430, 1x hot4017, 1x hot1117U, 1x hot1117L-A, 1x hot22114, 1x hot1930F)

Data: v4.2 - Upd: 2026-10-23 00:33:43

Features

Specifications

Product Attributes - Brand

Hotchkis Sport Suspension

Product Attributes - Manufacturer's Part Number

71020016

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Product Line

Hotchkis Sport Suspension 1.5 Street Performance Series Shocks by FOX

Product Attributes - UPC

00810361037894

Product Attributes - Ride Height

Stock

Product Attributes - Internal Design

Monotube

Product Attributes - Adjustable Valving

No

Product Attributes - Gas Charged

Yes

Product Attributes - Bushing Material

Polyurethane

Product Attributes - Bushing Color

Black

Product Attributes - Boot Included

No

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold individually.
