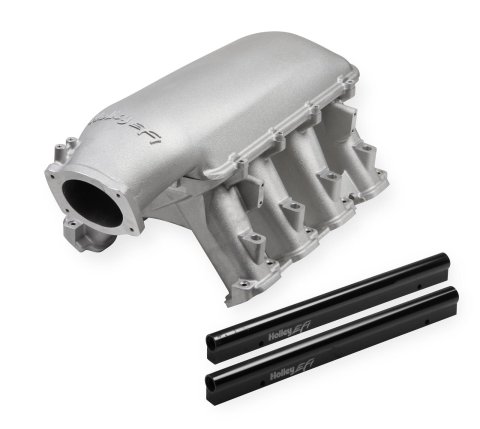

Holley EFI LT1 Gen V Hi-Ram Intake Manifolds 300-140 Manifolds, LT1, V, Hi-Ram, Direct Injection, 3,500-8,000 RPM, 105mm Bore, Standard Deck, Aluminum, Satin Finish, Chevy, 6.2L, Each
Holley EFI LT1 Gen V Hi-Ram Intake Manifolds 300-140 Manifolds, LT1, V, Hi-Ram, Direct Injection, 3,500-8,000 RPM, 105mm Bore, Standard Deck, Aluminum, Satin Finish, Chevy, 6.2L, Each
A$3,022.30
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley EFI LT1 Gen V Hi-Ram intake manifolds provide the ultimate performance with GM direct-injected Gen V 6.2L LT1 engines. The modular design allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper and cross-sectional area to perform in a wide variety of engine configurations. When you look for the pinnacle of performance, price, and quality, look to Holley Hi-Ram intake manifolds for your LT1 application.
Features include:
* Available with injector bosses on the intake runners that provide increased performance potential by using additional injectors and the factory direct injection
* Removable top
* Large plenum volume
* Intakes with injector ports include fuel rails with dual mounting
* Fuel rails are anodized, laser-etched, and machined for -8 AN O-ring fittings at each end
* Rear of plenum machined for MAP sensor and three vacuum ports
* Head flange has clearance for fuel supply to a high-pressure pump
* Increased runner wall thickness for custom porting at the plenum to runner entry on each runner
* O-ring seals at cylinder heads and plenum top
* Easy assembly with top-mounted screws on plenum top (except front two screws)
* Several top options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or blank flange for custom throttle bodies
* 3,500 to 8,000-plus rpm power band
Part Type
6.2L LT1 Hi-Ram Intake Manifold 1x105mm TB
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 300-140
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Holley EFI LT1 Gen V Hi-Ram Intake Manifolds
- Product Attributes - UPC
- 090127730515
- Product Attributes - Fuel Injection Style
- Direct injection
- Product Attributes - Basic Operating RPM Range
- 3,500-8,000
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Throttle Body Bore Size
- 105mm
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- No
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- Yes
- Product Attributes - Supplemental Bosses Machined
- No
- Product Attributes - Supplemental Boss Quantity
- Eight
- Product Attributes - Runners Included
- Yes
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Natural
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- The fuel rails and the ports on this manifold are designed to accept Bosch-style EV-1 or GM LS7 fuel injectors. Kit includes mounting hardware and gaskets.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly300-140 |
| SFX Item ID | 4784155 |
| Supplier Item Code | 4784155 |
| Manufacturer SKU | 300-140 |
| Manufacturer UPC | N/A |
| Alternative References | HOL300-140, LT1, 105mm, 6.2L |
