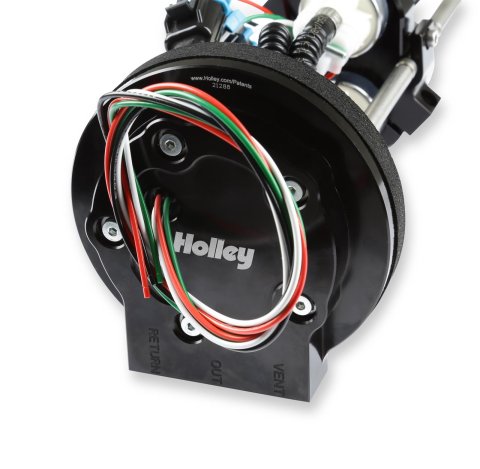

Holley In-Tank Retrofit Fuel Pump Modules 12-173 Pumps, In-Tank, Module, Electric, Return Style, Dual 450 lph, 60 psi, 12V, -8 AN Female, Both Ends, for 7-12 in. Deep Tank, Each
Holley In-Tank Retrofit Fuel Pump Modules 12-173 Pumps, In-Tank, Module, Electric, Return Style, Dual 450 lph, 60 psi, 12V, -8 AN Female, Both Ends, for 7-12 in. Deep Tank, Each
A$2,001.35
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Works on a 7.00 in. to 12.000 in. deep tank. Must be used with a return-style system. Listed 900LPH is for the dual 450LPH pumps. Supports up to 1,750 EFI or 2,200 carbureted hp.
Holley in-tank retrofit fuel modules are the easiest way to convert your vehicle's factory tank or fuel cell to an in-tank, EFI fuel system—and gain all the benefits of a Holley Hydramat reservoir, as well. This conversion requires only basic tools, no welding or fabrication. The low-profile, aluminum module design includes a billet pump hanger bracket to control vibration; Holley's innovative clamping system and integrated fuel pump allow you to locate the module anywhere in the tank beside your existing sending unit. Once installed, simply hook up your fuel lines and your power source/ground, and you're ready to roll. Holley in-tank retrofit modules are available with fuel pumps for both return and returnless-style systems—and models to support various liters per hour (LPH).
Additional details:
* Installs in any fuel tank to fit a wide range of applications
* The low-profile design is only 1.275 in. thick above the tank mounting surface for added clearance
* Clamping system allows you to rotate the unit 360 degrees for easier clocking of plumbing and wiring
* Hydramat fuel reservoir's 3 x 15 in. mounting flange has six clocking pin locations for 360 degree adjustment
* Black anodized aluminum construction to resist corrosion
* 1/4 in. NPT ports available for numerous plumbing options
* Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI, or any TBI or EFI conversion
* Optional rollover valve available
Part Type
Dual In-Tank Fuel Pump Module 450LPH w/Return
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 12-173
- Product Attributes - Part Type
- Fuel Pumps
- Product Attributes - Product Line
- Holley In-Tank Retrofit Fuel Pump Modules
- Product Attributes - UPC
- 090127129357
- Product Attributes - Fuel Pump Type
- Electric In-tank
- Product Attributes - Flow Rate
- 238 gph/900 lph
- Product Attributes - Fuel Pressure (psi)
- 60 psi
- Product Attributes - Fuel Pump Voltage
- 12 V
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - Sending Unit Included
- No
- Product Attributes - Fuel Pump Inlet Size
- -8 AN
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Attachment
- Female threads
- Product Attributes - Fuel Pump Outlet Size
- -8 AN
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Attachment
- Female threads
- Product Attributes - Gasket Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Pulley Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Works on a 7.00 in. to 12.000 in. deep tank. Must be used with a return-style system. Listed 900LPH is for the dual 450LPH pumps. Supports up to 1,750 EFI or 2,200 carbureted hp.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly12-173 |
| SFX Item ID | 4782280 |
| Supplier Item Code | 4782280 |
| Manufacturer SKU | 12-173 |
| Manufacturer UPC | 90127129357 |
| Alternative References | HOL12-173, 12V |
