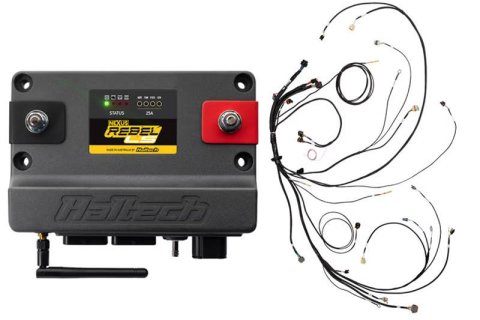

Haltech NEXUS Rebel LS Gen IV 6-Pin DBW Throttle/EV6 Injectors/Manual Transmission
Haltech NEXUS Rebel LS Gen IV 6-Pin DBW Throttle/EV6 Injectors/Manual Transmission
A$3,525.31
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Haltech's Rebel LS ECU kits provide the most cost-effective, easy-to-install, start-up and drive aftermarket ECU experience. Designed for Gen 3 or 4 LS engines, the all-in-one kit concept simplifies your purchase decision, eliminating the need for costly additional accessory purchases. Each kit arrives with a Rebel ECU, main engine harness and adapter harnesses for throttle, injectors, T56 transmission, (DBW -Gen 4) or (cable throttle and IAC – Gen 3) alternator, knock sensor, existing GM MAP, oil pressure sensors, along with a Bosch O2 and air temp sensor with weld bungs. Installation is a breeze, using a labeled and pre-terminated drop-in harness, which easily connects to existing factory LS sensors. Engine start-up is made easy through the Setup Wizard in the Haltech NSP software and the soon-to-be-released Haltech Connect app. Answer six questions – LS Engine type, cam, throttle body, MAP, injectors and coils with the Wizard prompting a throttle calibration and system check, ensuring an engine that will quickly start, idle and drive. Drivability is continually improved with Haltech's advanced self-learning while additional tuning for your N/A, turbocharged, supercharged or nitrous LS is achieved through Haltech's NSP software. Finally, the Rebel LS ECU kit is compatible with Haltech's plug-and-play CAN accessories, such as the iC-7 dash, keypads, PDM, EGT, wideband and flex-fuel sensors.
Part Type
Engine Control Module (ECM)
Specifications
- Product Attributes - Brand
- Haltech
- Product Attributes - Manufacturer's Part Number
- HT-220204
- Product Attributes - Part Type
- Engine Management Systems
- Product Attributes - Product Line
- Haltech Rebel LS Gen 3 and 4 ECU Kits
- Product Attributes - UPC
- 9356450014809
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Boost Control
- Yes
- Product Attributes - Traction Control
- Yes
- Product Attributes - High Impedence Injectors
- Up to 8
- Product Attributes - Fuel Injector Connector Style
- USCAR/EV6
- Product Attributes - Coils
- Up to 8
- Product Attributes - Ignition Coil Connector
- GM LS/LT 4-pin
- Product Attributes - Digital Inputs
- 4
- Product Attributes - Analog Inputs
- 2
- Product Attributes - Wideband Controller
- Yes
- Product Attributes - Wideband Channels
- 1
- Product Attributes - CANBUS Enabled
- Yes
- Product Attributes - CANBUS Networks
- 1
- Product Attributes - Knock Control
- Yes
- Product Attributes - Knock Channels
- 2
- Product Attributes - Drive-By-Wire Capable
- Yes
- Product Attributes - VVT Control
- No
- Product Attributes - Nitrous Control
- Yes
- Product Attributes - Launch Control
- Yes
- Product Attributes - Engine Protection
- Yes
- Product Attributes - Flex Fuel Compatible
- Yes
- Product Attributes - Multi-fuel Capable
- Yes
- Product Attributes - Data Logger
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Reluctor Wheel Tooth Quantity
- 24/58
- Product Attributes - Display Included
- No
- Product Attributes - Handheld Controller Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Kit is to be used with 6-pin DBW throttle bodies, EV6 fuel injectors and manual transmission.
Reference Information
| Brand Name/s | Haltech |
|---|---|
| StreetFX SKU | halHT-220204 |
| SFX Item ID | 4401461 |
| Supplier Item Code | 4401461 |
| Manufacturer SKU | HT-220204 |
| Manufacturer UPC | 9356450014809 |
| Alternative References | HTHHT-220204, 6-Pin, Throttle/EV6 |
