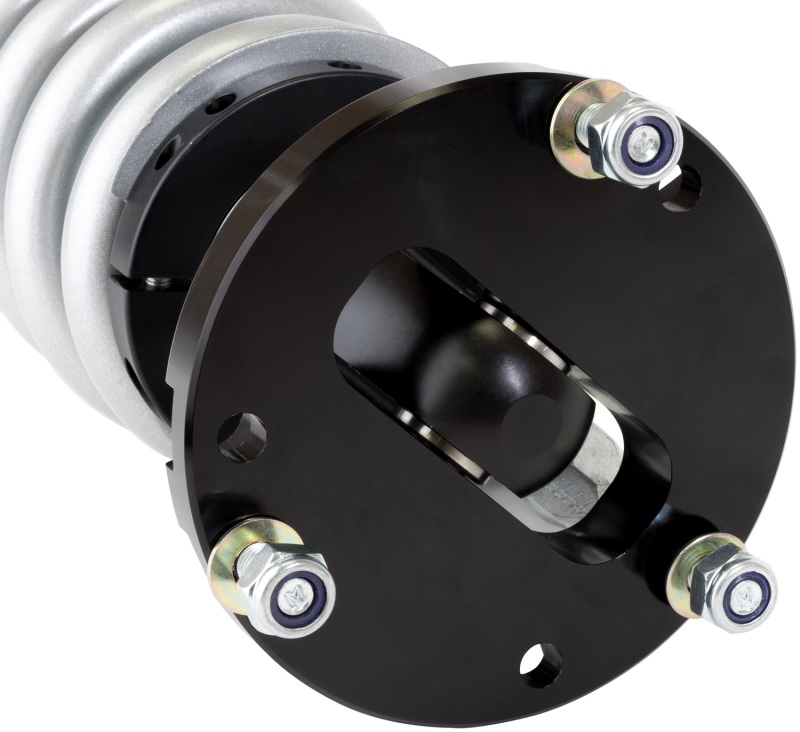

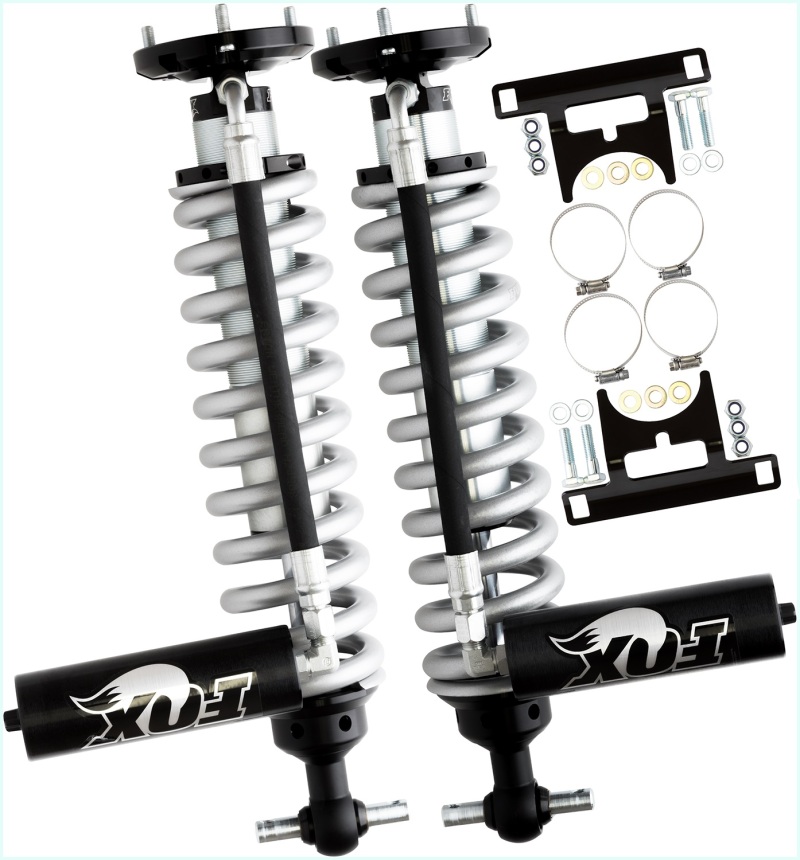

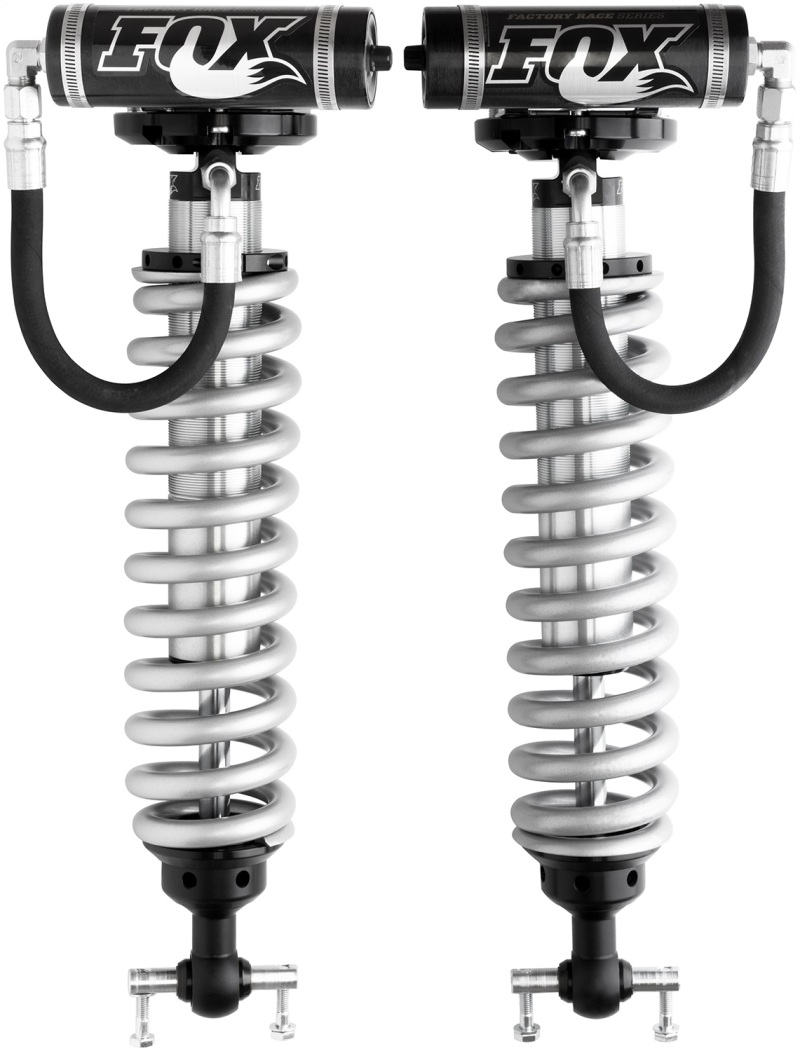

Fox 2007+ Chevy 1500 Front 2.5 Factory Series 5.8in. R/R Coilover Set / 4-6.5in. Lift *BDS Lift Only
Fox 2007+ Chevy 1500 Front 2.5 Factory Series 5.8in. R/R Coilover Set / 4-6.5in. Lift *BDS Lift Only
A$3,374.25
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Product Overview
Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.
Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.
Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8†shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Features and Benefits
- Black Anodized CNC Machined Aluminum Components
- Performance Tuned For Vehicle Specific Application
- Durable Zinc Plated Seamless Alloy Body
- External Reservoir System Dissipates Heat Fast
Product Details
| Body Diameter (in): | 2.5 |
|---|---|
| Body Material: | Steel |
| Bottom Mount: | Eyelet |
| California Proposition 65: | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length: | 18.350 in. |
| Color: | Steel |
| Compressed Length (in): | 17.55 |
| Description: | FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR) |
| Extended Length (in): | 23.41 |
| Extended Length: | 24.290 in. |
| FOX CATALOG: | TRUCK |
| Label Name: | Kit: 07-ON Chevy 1500 Front Coilover, 2.5 Series, R/R, 5.8", 4-6.5" Lift |
| Part Number: | fox883-02-059 |
| Prop 65 Y/N: | Y |
| Reservoir Type: | Remote |
| Series: | Factory Race |
| Shock Stroke: | 5.940 in. |
| Size: | 2.5 in. |
| Title: | FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR) |
| Top Mount (P/N): | TOP |
| Top Mount: | TM |
| Travel (in): | 5.86 |
| Type: | Coil-Over |
| WARNING CA Proposition 65 Message: | ! Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Part Type
Suspension Shock Absorber Kit
Features
- Black Anodized CNC Machined Aluminum Components
- Durable Zinc Plated Seamless Alloy Body
- External Reservoir System Dissipates Heat Fast
- Performance Tuned For Vehicle Specific Application
Specifications
- Product Attributes - Brand
- Fox Shox
- Product Attributes - Manufacturer's Part Number
- 883-02-059
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Fox Racing Shox 2.5 Factory Race Series Coilover Remote Reservoir Shocks
- Product Attributes - UPC
- 00714686861199
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Suspension Height Adjustment
- 4.0-6.5 in. raised
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Extended Length (in.)
- 24.29
- Product Attributes - Collapsed Length (in.)
- 18.35
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Fox |
|---|---|
| StreetFX SKU | fox883-02-059 |
| SFX Item ID | 4498977 |
| Supplier Item Code | 4498977 |
| Manufacturer SKU | 883-02-059 |
| Manufacturer UPC | 714686861199 |
| Alternative References | frs-883-02-059, 5.8in., 4-6.5in. |
