Edelbrock Manifold Perf RPM for GM LS3 Carbureted w/ Timing Control Module
Edelbrock Manifold Perf RPM for GM LS3 Carbureted w/ Timing Control Module
A$2,495.94
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

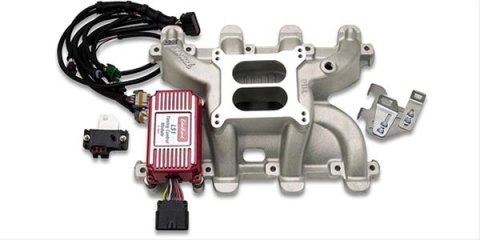

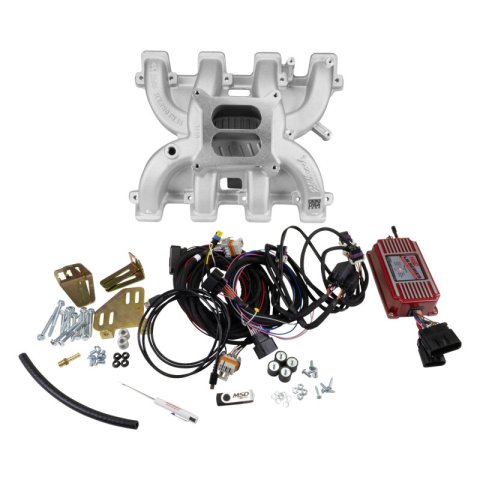

Edelbrock part #71196 Performer RPM LS3 intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Performer RPM LS3 manifold is ideal for anybody looking to build a carbureted LS3 or LS2 engine with an operating range between 1,500 - 6,500 rpm. It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve. It features a high-rise dual-plane design optimized for square-bore carburetors. This manifold kit includes an MSD Ignition Timing Control Module #6014. The ignition module has an internal MAP sensor, and works with either 24x (Gen II) or 58x (Gen IV) OE sensors to fire the Coil-on-Plug ignition system. A rotary dial offers a choice of six timing curves. More extensive programming of rev limits, nitrous retard etc. available via laptop connection. A special throttle and trans bracket that works with 700R-4, 200-4R and Turbo 350 transmissions is also included, making this an easy retro-fit into any muscle car or street rod application. Uses GM individual o-ring gaskets PN 19256623. Manifold hold down bolts included. For LS cathedral port (LS1) applications see PN 7118.
Product Overview
Edelbrock part #71196 Performer RPM LS3 intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Performer RPM LS3 manifold is ideal for anybody looking to build a carbureted LS3 or LS2 engine with an operating range between 1,500 - 6,500 rpm. It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve. It features a high-rise dual-plane design optimized for square-bore carburetors. This manifold kit includes an MSD Ignition Timing Control Module #6014. The ignition module has an internal MAP sensor, and works with either 24x (Gen II) or 58x (Gen IV) OE sensors to fire the Coil-on-Plug ignition system. A rotary dial offers a choice of six timing curves. More extensive programming of rev limits, nitrous retard etc. available via laptop connection. A special throttle and trans bracket that works with 700R-4, 200-4R and Turbo 350 transmissions is also included, making this an easy retro-fit into any muscle car or street rod application. Uses GM individual o-ring gaskets PN 19256623. Manifold hold down bolts included. For LS cathedral port (LS1) applications see PN 7118.
Features and Benefits
- Lightweight Casting
Product Details
| Basic Operating RPM Range: | 1500-6500 |
|---|---|
| CNC Ported: | No |

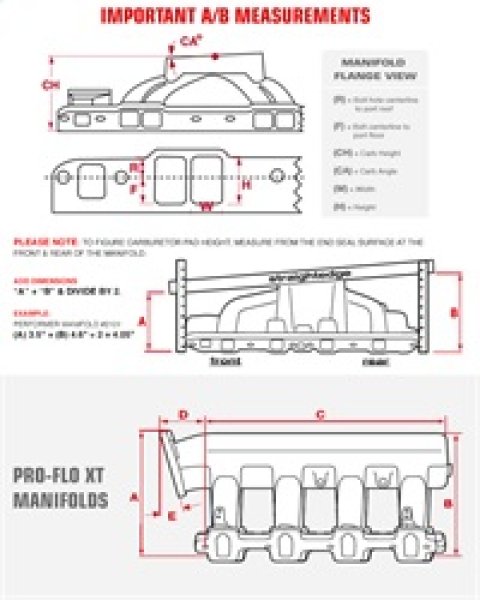

| Center Maximum Height: | 5.110 |
| Color: | Silver |
| Cylinder Head Type: | Rectangular Port |
| Description: | Performer RPM LS3 Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Chevy LS3/L92 |
| Finish: | Satin |
| Flange Type: | 4150 |
| Front Maximum Height: | 4.660 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| New Or Remanufactured: | New |
| Number of Carbs: | One |
| Part Number: | ede71196 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Rear Maximum Height: | 5.560 |
| Series: | Performer RPM |
| Single Or Dual Plane Type: | Dual |
| Usage: | Street/Hi-Performance |
| Vehicle Model: | Chevrolet |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen IV L76:364 (6.0L);Chevrolet:Small-Block Gen IV L77:364 (6.0L);Chevrolet:Small-Block Gen IV L92:376 (6.2L);Chevrolet:Small-Block Gen IV L94:376 (6.2L);Chevrolet:Small-Block Gen IV L99:376 (6.2L);Chevrolet:Small-Block Gen IV L9H:37
Part Type
Engine Intake Manifold
Features
- Lightweight Casting
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 71196
- Product Attributes - Part Type
- Intake Manifolds, Carbureted
- Product Attributes - Product Line
- Edelbrock Performer RPM Intake Manifolds
- Product Attributes - UPC
- 085347711963
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Carburetor Quantity
- One
- Product Attributes - Intake Style
- Dual plane
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Manifold Height
- 5.110 in.
- Product Attributes - Intake Color
- Natural
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - EGR
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes timing control module.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede71196 |
| SFX Item ID | 4236556 |
| Supplier Item Code | 4236556 |
| Manufacturer SKU | 71196 |
| Manufacturer UPC | 85347711963 |
| Alternative References | EDB71196, EDL-71196, LS3 |
Brochures
Compatibility
Chevrolet:Small-Block Gen IV L76:364 (6.0L);Chevrolet:Small-Block Gen IV L77:364 (6.0L);Chevrolet:Small-Block Gen IV L92:376 (6.2L);Chevrolet:Small-Block Gen IV L94:376 (6.2L);Chevrolet:Small-Block Gen IV L99:376 (6.2L);Chevrolet:Small-Block Gen IV L9H:37
