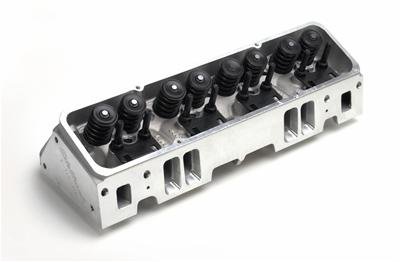

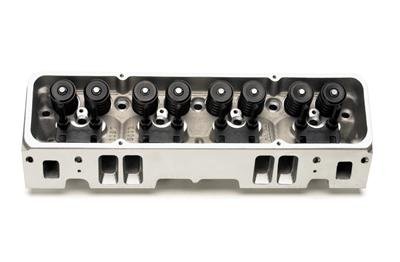

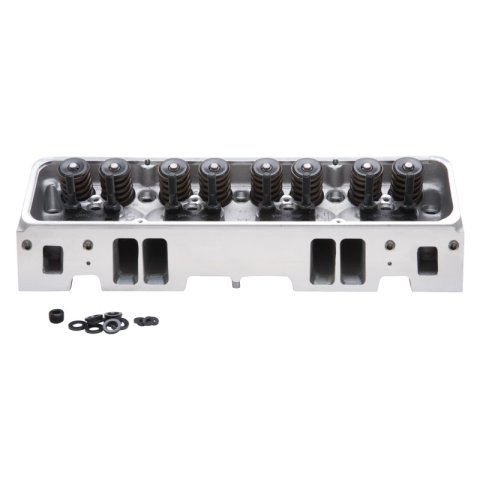

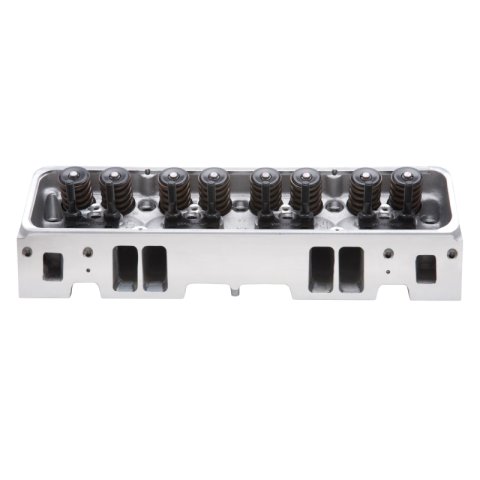

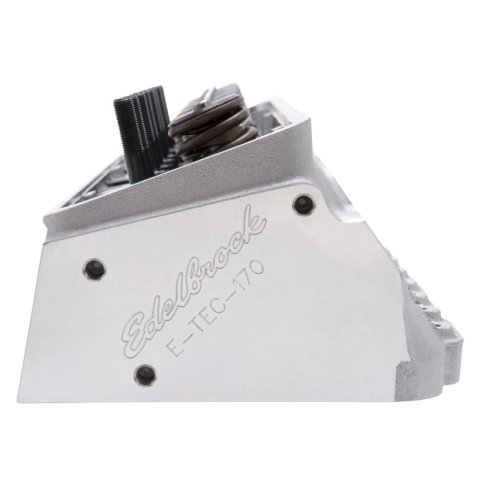

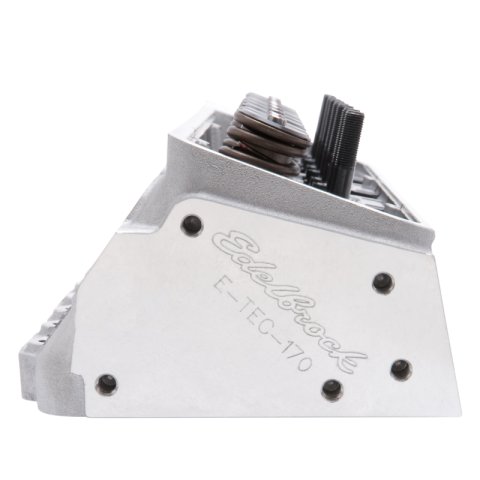

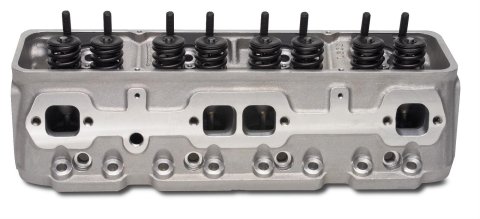

Edelbrock Cylinder Head SB Chevrolet Performer RPM E-Tec 170 for Hydraulic Roller Cam Complete (Ea)
Edelbrock Cylinder Head SB Chevrolet Performer RPM E-Tec 170 for Hydraulic Roller Cam Complete (Ea)
A$2,819.35
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The Edelbrock #60975 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This cylinder head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. E-Tec 170 head is 50-state street legal.
Product Overview
The Edelbrock #60975 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This cylinder head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. E-Tec 170 head is 50-state street legal.
Features and Benefits
- Thicker Deck Surfaces Than Other Brands
Product Details
| 9040: | D-215-94 |
|---|---|
| CNC Ported: | No |
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 64 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | E-Tec 170 Series Cylinder Head |
| EGR Port: | No |
| Emission: | 50 State Legal |
| Engine Make/Size: | Chevy Small Block (262-400) |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 70 |
| Exhaust Valve Diameter: | 1.55 |
| Family: | E-Tec |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plate Material: | Hardened Steel |
| Guide Plates Included: | Yes |
| Head Casting Number: | N/A |
| Horsepower: | 350-450 |
| Intake Runner Volume: | 170 |
| Intake Valve Diameter: | 1.94 |
| Material: | Aluminum |
| Part Number: | ede60975 |
| Preparation: | Bolt On (Not Required) |
| Push Rod Diameter: | (Suggested) 0.3125 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Rocker Arm Stud Diameter: | 0.375 |
| Rotor Center Bore Inside Diameter: | Straight |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Series: | E-Tec |
| Type: | Complete |
| Usage: | Street/Performance |
| Valve Angle: | 23 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.46 |
| Valve Spring Maximum Lift: | 0.575 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Part Type
Engine Cylinder Head
Features
- Thicker Deck Surfaces Than Other Brands
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 60975
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock E-Tec Cylinder Heads
- Product Attributes - UPC
- 085347609758
- Product Attributes - Combustion Chamber Volume (cc)
- 64
- Product Attributes - Intake Runner Volume (cc)
- 170cc
- Product Attributes - Exhaust Runner Volume (cc)
- 70cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 1.940 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Combustion Chamber Style
- Heart
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Square
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Straight
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.550 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.600 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.460 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nut Thread Size
- 3/8 in.-24
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 5/16 in.
- Product Attributes - Valve Cover Mounting Style
- Center and perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 23
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Powdered metal
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - CARB EO Number(s)
- D-215-94
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede60975 |
| SFX Item ID | 4236685 |
| Supplier Item Code | 4236685 |
| Manufacturer SKU | 60975 |
| Manufacturer UPC | 85347609758 |
| Alternative References | e-tec-200;, t-6;, v8;, EDB60975, EDL-60975 |
Brochures
Compatibility
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
