Edelbrock V/S Perf Chev 396-454 Spring Kit

SKU: EDE5895

Valve Springs

EDE Valve Springs...

Edelbrock

Edelbrock V/S Perf Chev 396-454 Spring Kit

SKU: EDE5895

Valve Springs

EDE Valve Springs...

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

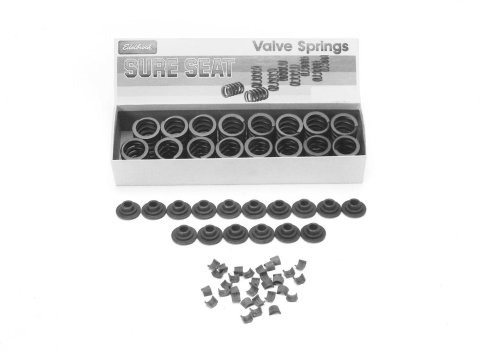

Edelbrock part #5895 Sure Seat Valve Spring Kit is designed for Big-Block Chevy 396-402-427-454 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 90 lbs.Installed Height: 1.880"Open Pressure: 220 lbs. @ 0.420"Outside Diameter: 1.500"Inside Diameter: 1.082"Coil Bind: 1.340"

Product Overview

Edelbrock part #5895 Sure Seat Valve Spring Kit is designed for Big-Block Chevy 396-402-427-454 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 90 lbs. Installed Height: 1.880" Open Pressure: 220 lbs. @ 0.420" Outside Diameter: 1.500" Inside Diameter: 1.082" Coil Bind: 1.340"

Features and Benefits

Great Match to Edelbrock Camshaft Kit

Product Details

Camshaft Type:	Hydraulic Flat Tappet
Coil Bind Height (in.):	1.34
Coil Bind Height:	1.340
Damper Spring Included:	Yes
Description:	Sure Seat Valve Spring Kit
Inside Diameter:	1.082
Installed Height (in.):	1.88
Installed Height:	1.880
Installed Pressure (lbs.):	90
Installed Pressure:	90
Locks Included:	Yes
Material:	Chromium Silicon
Open Height (in.):	1.88
Open Height:	1.880 in.
Open Pressure (lbs.):	220
Open Pressure:	220
Outside Diameter:	1.500
Part Number:	ede5895
Quantity:	Kit
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainers Included:	Yes
Spring Open Height:	0.420
Spring Type:	Cylindrical
Springs Per Valve:	Single
Tubing Length:	220
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

Part Type

Engine Valve Spring Kit

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

Great Match to Edelbrock Camshaft Kit

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 5895
Product Attributes - Part Type: Valve Springs
Product Attributes - Product Line: Edelbrock Sure Seat Valve Spring Kits
Product Attributes - UPC: 085347058952
Product Attributes - Valve Spring Style: Standard
Product Attributes - Number of Springs Per Valve: Single
Product Attributes - Retainers Included: Yes
Product Attributes - Retainer Material: Steel
Product Attributes - Outside Diameter of Outer Spring (in.): 1.500 in.
Product Attributes - Coil Bind Height (in.): 1.340 in.
Product Attributes - Damper Spring Included: Yes
Product Attributes - Inside Diameter of Outer Spring (in.): 1.082 in.
Product Attributes - Locks Included: Yes
Product Attributes - Lock Material: Steel
Product Attributes - Lock Groove Quantity: 1-groove
Product Attributes - Lock Style: 7 degree
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Valve Springs Coated: No
Product Attributes - Valve Stem Diameter (in.): 0.375 in.
Product Attributes - Valve Stem Diameter (mm): 9.53mm
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede5895
SFX Item ID	4237306
Supplier Item Code	4237306
Manufacturer SKU	5895
Manufacturer UPC	85347058952
Alternative References	EDB5895, EDL-5895
