Edelbrock V/S Chev 262-400 Perf RPM and Torker Spring Kit

SKU: EDE5794

Valve Springs

EDE Valve Springs...

Edelbrock

Edelbrock V/S Chev 262-400 Perf RPM and Torker Spring Kit

SKU: EDE5794

Valve Springs

EDE Valve Springs...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

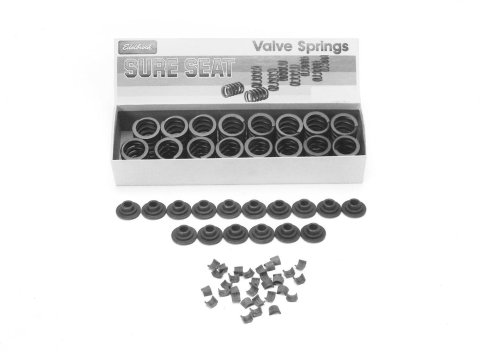

Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 110 lbs.Installed Height: 1.700"Open Pressure: 285 lbs. @ 0.490"Outside Diameter: 1.265"Inside Diameter: 1.060"Coil Bind: 1.160"

Product Overview

Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 110 lbs. Installed Height: 1.700" Open Pressure: 285 lbs. @ 0.490" Outside Diameter: 1.265" Inside Diameter: 1.060" Coil Bind: 1.160"

Features and Benefits

Great Match to Edelbrock Camshaft Kit

Product Details

Camshaft Type:	Hydraulic Flat Tappet
Coil Bind Height (in.):	1.16
Coil Bind Height:	1.160
Damper Spring Included:	Yes
Description:	Sure Seat Valve Spring Kit
Inside Diameter:	0.880
Installed Height (in.):	1.7
Installed Height:	1.700
Installed Pressure (lbs.):	110
Installed Pressure:	110
Locks Included:	Yes
Material:	Chromium Silicon
Open Height (in.):	1.7
Open Height:	1.700 in.
Open Pressure (lbs.):	285
Open Pressure:	285
Outside Diameter:	1.265
Part Number:	ede5794
Quantity:	Kit
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Retainers Included:	Yes
Spring Open Height:	0.490
Spring Type:	Cylindrical
Springs Per Valve:	Single
Tubing Length:	285
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Part Type

Engine Valve Spring Kit

Data: v4.2 - Upd: 2026-10-22 02:07:55

Features

Great Match to Edelbrock Camshaft Kit

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 5794
Product Attributes - Part Type: Valve Springs
Product Attributes - Product Line: Edelbrock Sure Seat Valve Spring Kits
Product Attributes - UPC: 085347057948
Product Attributes - Valve Spring Style: Standard
Product Attributes - Number of Springs Per Valve: Single
Product Attributes - Retainers Included: Yes
Product Attributes - Retainer Material: Steel
Product Attributes - Outside Diameter of Outer Spring (in.): 1.265 in.
Product Attributes - Coil Bind Height (in.): 1.160 in.
Product Attributes - Damper Spring Included: Yes
Product Attributes - Inside Diameter of Outer Spring (in.): 0.880 in.
Product Attributes - Locks Included: Yes
Product Attributes - Lock Material: Steel
Product Attributes - Lock Groove Quantity: 1-groove
Product Attributes - Lock Style: 7 degree
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Valve Springs Coated: No
Product Attributes - Valve Stem Diameter (in.): 0.344 in.
Product Attributes - Valve Stem Diameter (mm): 8.74mm
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede5794
SFX Item ID	4237295
Supplier Item Code	4237295
Manufacturer SKU	5794
Manufacturer UPC	85347057948
Alternative References	EDB5794, EDL-5794
