Home / Shop / Edelbrock Super Victor Intake Manifolds 28235 Manifold, LS-R Heads Only, 2-Piece, Single Plane, Aluminum, Satin, 4500 Flange, EFI, Each

Edelbrock Super Victor Intake Manifolds 28235 Manifold, LS-R Heads Only, 2-Piece, Single Plane, Aluminum, Satin, 4500 Flange, EFI, Each

SKU: EDE28235

Intake Manifolds, Fuel Injected

Edelbrock

Edelbrock Super Victor Intake Manifolds 28235 Manifold, LS-R Heads Only, 2-Piece, Single Plane, Aluminum, Satin, 4500 Flange, EFI, Each

SKU: EDE28235

Intake Manifolds, Fuel Injected

Sale ends in Calculating... Thu 29 Oct, 7:06 pm AEST

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

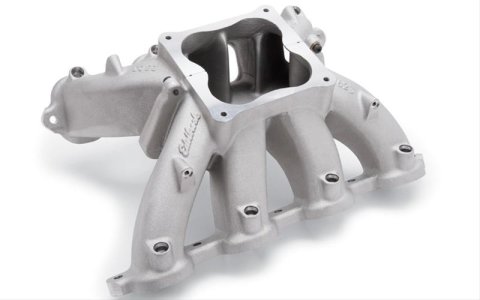

Edelbrock part #28235 Super Victor LS-R EFI two-piece manifold is intended for LS-R high performance race applications operating in the 8,000 rpm range utilizing Edelbrock LS-R CNC cylinder heads #770468. The single plane design features a 4500 series throttle body flange and is capable of producing near 1,000 hp. This Manifold features machined fuel injector bosses for EFI applications. LS-R fuel rail kit, #3510, is available separately. Port exits are tipped 6.5 degrees.

Application Summary

Chevrolet:Small-Block Gen III Race:-;Chevrolet:Gen IV Race:-

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-28 15:13:53

Features

Single-Plane Design

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 28235
Product Attributes - Part Type: Intake Manifolds, Fuel Injected
Product Attributes - Product Line: Edelbrock Super Victor Intake Manifolds
Product Attributes - UPC: 085347282357
Product Attributes - Cylinder Head Configuration: Edelbrock Pro-Port LS-R
Product Attributes - Fuel Injection Style: Multi-port
Product Attributes - Basic Operating RPM Range: 4,000-8,500
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Injectors Included: No
Product Attributes - Multi-Port Fuel Rails Included: No
Product Attributes - EGR: No
Product Attributes - Aftermarket Fuel Rail Required: Yes
Product Attributes - Throttle Body Included: No
Product Attributes - Supplemental Bosses Cast-In: Yes
Product Attributes - Supplemental Bosses Machined: Yes
Product Attributes - Supplemental Boss Quantity: Eight
Product Attributes - Runners Included: Yes
Product Attributes - Runners Removable: No
Product Attributes - Plenum Material: Aluminum
Product Attributes - Plenum Finish: Natural
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: These two-piece manifolds are intended for LSR high performance race applications operating in the 8,000 rpm range utilizing Edelbrock Pro-Port LS-R cylinder heads. Use Edelbrock #3510 fuel rails.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede28235
SFX Item ID	4809912
Supplier Item Code	4809912
Manufacturer SKU	28235
Manufacturer UPC	85347282357
Alternative References	EDB28235, EDL-28235, 2-Piece
