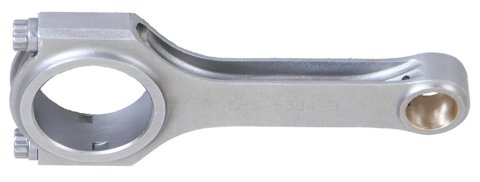

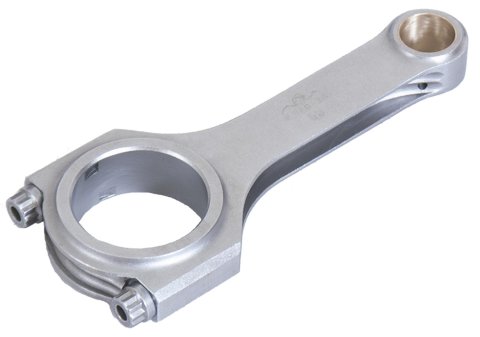

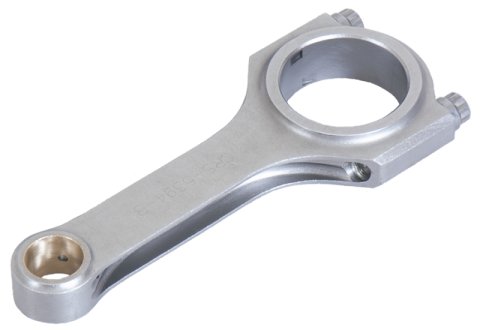

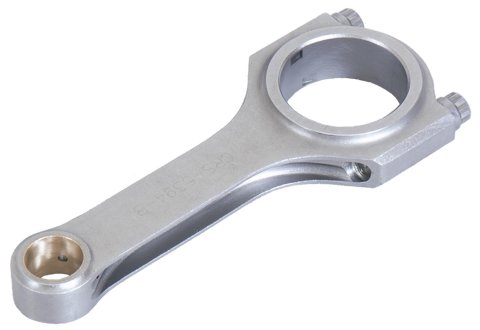

Eagle Acura B18A/B Engine Connecting Rod (Single Rod)

SKU: EAGCRS5394A3D-1

Connecting Rods

EAG Conrods H-Beam -Single...

Eagle

Eagle Acura B18A/B Engine Connecting Rod (Single Rod)

SKU: EAGCRS5394A3D-1

Connecting Rods

EAG Conrods H-Beam -Single...

Sale ends in Calculating... Sat 24 Oct, 12:08 am AEST

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.

Product Overview

Product Details

Big End Width:	0.935 in
Bolts:	3/8 in ARP 2000
Bushed for full-floating piston pin:	Yes
Center to Center Length:	5.394 in
Description:	Eagle Acura B18A/B Engine Connecting Rod (Single Rod)
Housing Bore:	1.89 in
Length Center Bore To Center Bore:	137
Material:	Forged 4340 steel
Part Number:	eagCRS5394A3D-1
Pin End Width:	0.935 in
Pin Size:	0.827 in
Prop 65 (C, R or CR):	C
Prop 65 - Long Label:	This product contains nickel, which is known to the State of California to cause cancer
Prop 65 - Short Label:	prop65_warning.jpg
Prop 65 Long:	This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 Warning Chemical Listing:	Nickel
Prop 65 Yes/No:	Yes
Rod Journal:	1.771 in
Title:	ESP 4340 ROD ACURA B18A/B

Application Summary

Acura B18

Part Type

Engine Connecting Rod

Data: v4.2 - Upd: 2026-10-22 20:11:17

Specifications

Product Attributes - Brand: Eagle Specialty Products
Product Attributes - Manufacturer's Part Number: CRS5394A3D-1
Product Attributes - Part Type: Connecting Rods
Product Attributes - Product Line: Eagle H-Beam Connecting Rods
Product Attributes - UPC: 00793348000329
Product Attributes - Connecting Rod Length Center to Center (in.): 5.394 in.
Product Attributes - Connecting Rod Beam Style: H-beam
Product Attributes - Connecting Rod Material: Forged 4340 steel
Product Attributes - Wrist Pin Style: Floating
Product Attributes - Rod Journal Diameter (in.): 1.771
Product Attributes - Big End Bore Diameter (in.): 1.8900
Product Attributes - Quantity: Sold individually.
Product Attributes - Cap Retention Style: Cap screw
Product Attributes - Big End Width (in.): 0.935
Product Attributes - Clearanced for Stroker: No
Product Attributes - Connecting Rod Bolt Brand: ARP
Product Attributes - Connecting Rod Bolt Diameter: 3/8 in.
Product Attributes - Connecting Rod Bolt Material: ARP2000 alloy
Product Attributes - Connecting Rod Bolt Head Style: 12-point
Product Attributes - Approximate Connecting Rod Weight (g): 535
Product Attributes - Advertised Horsepower Rating: 900 hp
Product Attributes - Pin End Width (in.): 0.935 in.
Product Attributes - Weight Matched Set: No
Product Attributes - Remanufactured: No
Product Attributes - Magnafluxed: No
Product Attributes - Connecting Rod Color: Shot-peened

Reference Information

Brand Name/s	Eagle
StreetFX SKU	eagCRS5394A3D-1
SFX Item ID	4052755
Supplier Item Code	4052755
Manufacturer SKU	CRS5394A3D-1
Manufacturer UPC	793348000329
Alternative References	ESP-CRS5394A3D-1, B18A/B
