Eagle Chevrolet LS2 408 Cid Competition Rotating Assembly
Eagle Chevrolet LS2 408 Cid Competition Rotating Assembly
A$5,815.37
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.
Product Overview

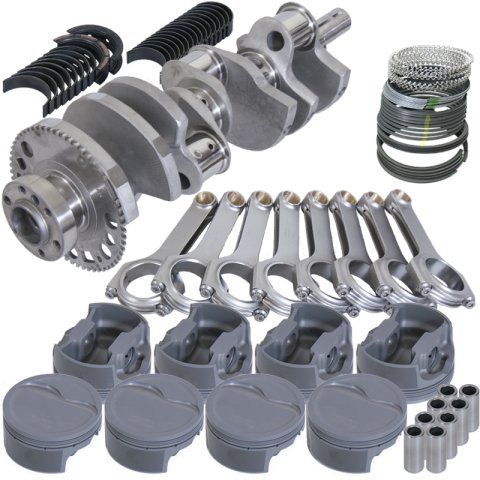

4.000" Forged 4340 LONG SNOUT Crank, 58 TOOTH RELUCTOR,6.125" I-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -12CC INVERTED DOME 4.030" PISTONS,PLASMA-MOLY FILE FIT RINGS,KING XP Rod/MAIN BEARINGS.
Product Details
| Assembly Balanced: | No |
|---|---|
| Assembly Type: | Competition Assembly |
| Balance Type: | internal |
| Bore: | 4.03 |
| Connecting Rod Bolt Diameter: | 7/16 in |
| Connecting Rod Bolt Material: | ARP 8740 |
| Connecting Rod Design: | H-Beam |
| Connecting Rod Length: | 6.125 in |
| Connecting Rod Material: | Forged 4340 Steel |
| Crankshaft Center Counterweights: | No |
| Crankshaft Feature: | long sNout for dry sump oiling system |
| Crankshaft Flange Bolt Holes: | 6 |
| Crankshaft Main Journal Diameter: | 2.559 in |
| Crankshaft Material: | Forged 4340 Steel |
| Crankshaft Reluctor: | 58 tooth |
| Crankshaft Rod Journal Diameter: | 2.100 in |
| Crankshaft Stroke: | 4.000 in |
| Cylinder Bore Diameter: | 4.030 in |
| Damper Included: | No |
| Description: | Eagle Chevrole LS2 408 Cid Competition Rotating Assembly |
| Flexplate/Flywheel Included: | No |
| Main Bearing Type: | hardened, chamfered or narrowed |
| Main Bearings Included: | Yes |
| Oil Rail Support Included: | Yes |
| Part Number: | eag127264030 |
| Piston Brand: | Mahle |
| Piston Dome Volume: | -12cc |
| Piston Face Type: | inverted dome |
| Piston Material: | Forged 4032 Aluminum |
| Piston Pin Diameter: | .927 in |
| Piston Pin Type: | Full Floating |
| Piston Ring Gap: | file fit |
| Piston Ring Thickness: | 1.0mm, 1.0mm, 2.0mm |
| Piston Type: | Inverted Dome Forged |
| Product Line: | Competition |
| Prop 65 (C, R or CR): | C |
| Prop 65 - Long Label: | This product contains nickel, which is known to the State of California to cause cancer |
| Prop 65 - Short Label: | prop65_warning.jpg |
| Prop 65 Yes/No: | Yes |
| Rod Bearing Type: | hardened, chamfered or narrowed |
| Rod Bearings Included: | Yes |
| Second Piston Ring Type: | Reverse Twist Iron |
| Thrust Washer Included: | No |
| Title: | ESP Competition Assembly Chevy LS2 |
| Top Piston Ring Type: | Barrel Faced Plasma-Moly |
Application Summary
CHEVY LS2
Part Type
Engine Crankshaft Rotating Assembly
Specifications
- Product Attributes - Brand
- Eagle Specialty Products
- Product Attributes - Manufacturer's Part Number
- 127264030
- Product Attributes - Part Type
- Engine Rotating Kits
- Product Attributes - Product Line
- Eagle Competition Rotating Assemblies
- Product Attributes - UPC
- 793348803050
- Product Attributes - Actual Engine Displacement
- 6.7L/408
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Bore (in.)
- 4.030 in.
- Product Attributes - Bore (mm)
- 102.362mm
- Product Attributes - Engine Stroke (in.)
- 4.000 in.
- Product Attributes - Balanced
- No
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Piston Style
- Dish, with two valve reliefs
- Product Attributes - Harmonic Balancer Included
- No
- Product Attributes - Flexplate Included
- No
- Product Attributes - Flywheel Included
- No
- Product Attributes - Pistons Included
- Yes
- Product Attributes - Piston Head Volume (cc)
- +12.00cc
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Piston Ring Facing Material
- Plasmamoly
- Product Attributes - Piston and Ring Oversize (in.)
- 0.030 in.
- Product Attributes - Crankshaft Included
- Yes
- Product Attributes - Crankshaft Material
- Forged 4340 steel
- Product Attributes - Engine Balance
- Internal
- Product Attributes - Connecting Rods Included
- Yes
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 6.125 in.
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Connecting Rod Beam Style
- I-beam
- Product Attributes - Rod Bearings Included
- Yes
- Product Attributes - Rod Bearing Undersize (in.)
- Stock
- Product Attributes - Rod Bearing Undersize (mm)
- Stock
- Product Attributes - Main Bearings Included
- Yes
- Product Attributes - Main Bearing Undersize (in.)
- Stock
- Product Attributes - Main Bearing Undersize (mm)
- Stock
- Product Attributes - Cam Bearings Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Camshaft Included
- No
- Product Attributes - Lifters Included
- No
- Product Attributes - Timing Chain and Gears Included
- No
- Product Attributes - Plastigage Included
- No
- Product Attributes - Assembly Lubricant Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- For applications with 58x reluctor.
Reference Information
| Brand Name/s | Eagle |
|---|---|
| StreetFX SKU | eag127264030 |
| SFX Item ID | 4053415 |
| Supplier Item Code | 4053415 |
| Manufacturer SKU | 127264030 |
| Manufacturer UPC | 793348803050 |
| Alternative References | ESP-127264030, LS2 |
Compatibility
CHEVY LS2
