Description

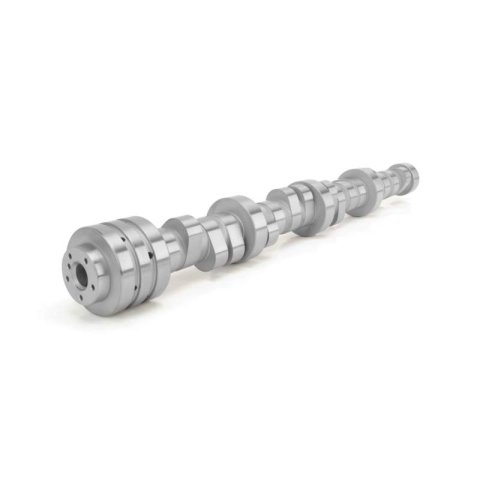

XFI 222/230 Hydraulic Roller Cam
Product Overview
*XFI Camshafts*
* Newest and quickest lobe profiles in the Xtreme family; provide a terrific increase in performance
* Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
* Work well with aftermarket cylinder heads & feature high lift
Product Details
| Advertised Exhaust Duration: | 283 |
|---|---|
| Advertised Intake Duration: | 270 |
| Amazon ASIN: | N/A |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2,100-7,100 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Xtreme Fuel Injection |
| Description: | XFI 222/230 Hydraulic Roller Cam for Dodge 5.7/6.1L HEMI w/ VVT |
| Engine Family: | Dodge 5.7L and 6.4L HEMI w/ VVT (2010+) |
| Exhaust Duration @ .050 in.: | 230 |
| Exhaust Duration at .050 inch Lift: | 230 |
| Exhaust Duration: | 283 |
| Exhaust Valve Lift(in): | 0.609 |
| Exhaust Valve Lift: | 0.609 |
| Grind Number: | 270VVI15 |
| Intake Duration @ .050 in.: | 222 |
| Intake Duration at .050 Inch Lift: | 222 |
| Intake Duration: | 270 |
| Intake Valve Lift(in): | 0.615 |
| Intake Valve Lift: | 0.615 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 115 |
| Part Number: | cca201-426-17 |
| RPM Range: | 2000-7200 |
| Title: | XFI 222/230 Hydraulic Roller Cam for Dodge 5.7/6.1L HEMI w/ VVT |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 201-426-17
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Chrysler Hemi Phaser Camshafts
- Product Attributes - UPC
- 036584248675
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Best all around performance grind for 6.4L applications.
- Product Attributes - Basic Operating RPM Range
- 2,100-7,100
- Product Attributes - Intake Duration at 050 inch Lift
- 222
- Product Attributes - Exhaust Duration at 050 inch Lift
- 230
- Product Attributes - Duration at 050 inch Lift
- 222 int./230 exh.
- Product Attributes - Advertised Intake Duration
- 270
- Product Attributes - Advertised Exhaust Duration
- 278
- Product Attributes - Advertised Duration
- 270 int./278 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.615 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.609 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.615 int./0.609 exh.
- Product Attributes - Lobe Separation (degrees)
- 115
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- 270WI15
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits VVT engines.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca201-426-17 |
| SFX Item ID | 4119311 |
| Supplier Item Code | 4119311 |
| Manufacturer SKU | 201-426-17 |
| Manufacturer UPC | 36584248675 |
| Alternative References | 53022372aa, COM201-426-17 |
