Description

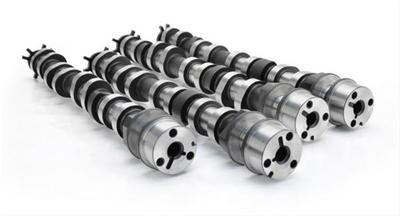

XFI NSR (No Springs Required) Hydraulic Roller Swinging/Finger Follower Camshafts DOHC - Max effort street/strip Cam set. Strong power gains above 5500-7200+. Full length headers and 3.73+ Gear. Requires custom ECU programming. Requires Cam phaser limiter kit Part #5493 or optional Cam phaser lock kit #5492 for Race Applications.
Product Overview
*XFI Camshafts*
* Newest and quickest lobe profiles in the Xtreme family; provide a terrific increase in performance
* Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
* Work well with aftermarket cylinder heads & feature high lift
Product Details
| Advertised Exhaust Duration: | 283 |
|---|---|
| Advertised Intake Duration: | 276 |
| Amazon ASIN: | B004RUZK86 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,900-7,200 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller Finger Follower |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | XFI NSR (No Springs Required) |
| Description: | XFI NSR 236/239 Hydraulic Roller Cams for Ford 5.0L Coyote |
| Engine Family: | Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2011+) |
| Exhaust Duration @ .050 in.: | 239 |
| Exhaust Duration at .050 inch Lift: | 239 |
| Exhaust Duration: | 283 |
| Exhaust Valve Lift(in): | 0.453 |
| Exhaust Valve Lift: | 0.453 |
| Grind Number: | F5.0D NSR-NA3H-126 |
| Intake Duration @ .050 in.: | 236 |
| Intake Duration at .050 Inch Lift: | 236 |
| Intake Duration: | 283 |
| Intake Valve Lift(in): | 0.492 |
| Intake Valve Lift: | 0.492 |
| Lifter Type: | Hydraulic Roller Finger Follower |
| Lifters Included: | No |
| Lobe Separation: | 126 |
| Part Number: | cca191160 |
| RPM Range: | OEM |
| Title: | XFI NSR 236/239 Hydraulic Roller Cams for Ford 5.0L Coyote |
| Usage: | Street/Performance |
| Valve Springs Required: | No |
Application Summary
Ford: Mustang 11 - 14 5 L Engine, Ford: F-150 11 - 14 5 L Engine, Ford: Lobo 11 - 14 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 191160
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams XFI NSR Ford 5.0 Modular 4V Camshafts
- Product Attributes - UPC
- 036584235750
- Product Attributes - Cam Style
- DOHC
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Max effort street/strip cam set. Strong power gains above 5,500-7,200+. Full-length headers and 3.73+ gear. Requires phaser limiter kit and custom ECU programming.
- Product Attributes - Basic Operating RPM Range
- 1,900-7,200
- Product Attributes - Intake Duration at 050 inch Lift
- 236
- Product Attributes - Exhaust Duration at 050 inch Lift
- 239
- Product Attributes - Duration at 050 inch Lift
- 236 int./239 exh.
- Product Attributes - Advertised Intake Duration
- 276
- Product Attributes - Advertised Exhaust Duration
- 283
- Product Attributes - Advertised Duration
- 276 int./283 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.492 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.453 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.492 int./0.453 exh.
- Product Attributes - Lobe Separation (degrees)
- 126
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- F5.0D NSR-NA3H-126
- Product Attributes - Valve Springs Required
- No
- Product Attributes - Quantity
- Sold as a set of 4.
- Product Attributes - Notes
- Requires phaser limiter kit and custom ECU programming. For use with full length headers and 3.73 or larger gear.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca191160 |
| SFX Item ID | 4119301 |
| Supplier Item Code | 4119301 |
| Manufacturer SKU | 191160 |
| Manufacturer UPC | 36584235750 |
| Alternative References | s550;, gt350;, s197, COM191160, F50Cy, Nsr-Na3H-1 |
Brochures
Compatibility
Ford: Mustang 11 - 14 5 L Engine, Ford: F-150 11 - 14 5 L Engine, Ford: Lobo 11 - 14 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine
