Cloyes Street Billet True Roller Timing Sets 9-3508X9 Chain and Gear Set, Roller, Double Roller, Ford, 332-428, FE, Set

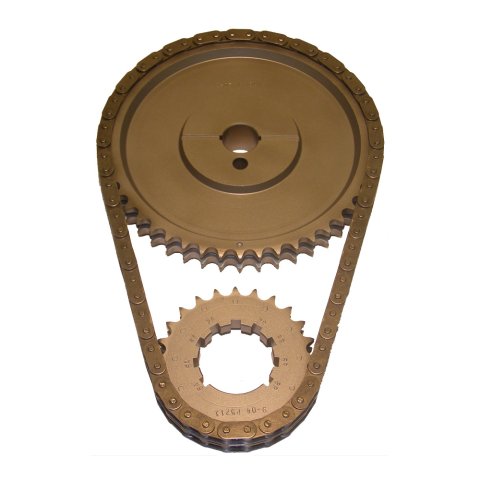

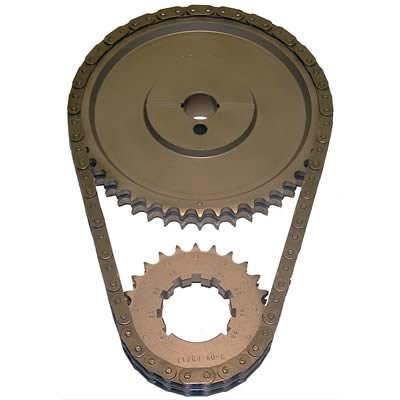

Cloyes Street Billet True Roller Timing Sets 9-3508X9 Chain and Gear Set, Roller, Double Roller, Ford, 332-428, FE, Set
A$361.51
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Offering a level of True Roller advantage for the value-racer, Cloyes upgraded the cam sprockets to feature the strength of billet steel and added critical functioning features. The billet steel durability, 9-keyway induction-hardened crank sprocket, .250 True Roller chain, and precise CNC machining together offer quality and adjustability unmatched in their class.
Features include:
• Billet steel cam sprocket
• Induction heat-treated billet steel crank sprocket
• 9 keyways allow +/- 8 degrees
• Adjustability in 2 crank degree increments
• True Roller chain with .250 in. diameter rollers
Part Type
Street True Roller Timing Set - FE Series
Specifications
- Product Attributes - Brand
- Cloyes Gear
- Product Attributes - Manufacturer's Part Number
- 9-3508X9
- Product Attributes - Part Type
- Timing Chain and Gear Sets
- Product Attributes - Product Line
- Cloyes Street Billet True Roller Timing Sets
- Product Attributes - UPC
- 750385406118
- Product Attributes - Timing Chain Included
- Yes
- Product Attributes - Timing Chain Style
- Double roller
- Product Attributes - Maximum Advance/Retard at Camshaft
- 4 degree
- Product Attributes - Maximum Advance/Retard at Crankshaft
- 8 degree
- Product Attributes - Cam Gear Included
- Yes
- Product Attributes - Cam Gear Material
- Steel
- Product Attributes - Crank Gear Included
- Yes
- Product Attributes - Crank Gear Material
- Steel
- Product Attributes - VVT Gear Included
- No
- Product Attributes - Tensioner Included
- No
- Product Attributes - Thrust Bearing Included
- Yes
- Product Attributes - Bolts/Studs Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Offset Bushings Included
- No
- Product Attributes - Quantity
- Sold as a set.
- Product Attributes - Notes
- Standard center distance of 5.044 in. Different camshaft manufacturers put the camshaft dowel in 2 different locations for these engines. Ford originally required both dots to be placed at the 12 o'clock positions then the camshaft to be rotated to insure the timing was correct. Other manufacturers have compensated for this and switched to the typical arrangement.
Reference Information
| Brand Name/s | Cloyes Gear |
|---|---|
| StreetFX SKU | clo9-3508X9 |
| SFX Item ID | 5093910 |
| Supplier Item Code | 5093910 |
| Manufacturer SKU | 9-3508X9 |
| Manufacturer UPC | 750385406118 |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
