Description

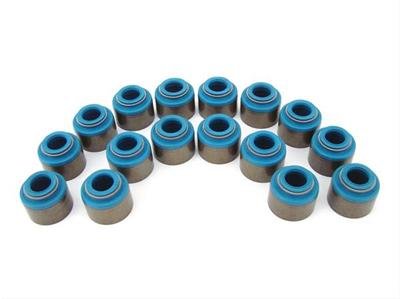

11/32" Viton Metal Body Seal for use with Triple Spring with a Total OD of .546"
Product Overview
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive-stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter, which can also be found on this page.
Product Details
| Amazon ASIN: | B002EE2GDY |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | Set of 8 Metal Body Viton Valve Seals for .500" Guide Size, 11/32" Valve Stem |
| Guide Size: | .500" |
| Part Number: | cca517-8 |
| Seal Outer Diameter: | 0.545 |
| Title: | Set of 8 Metal Body Viton Valve Seals for .500" Guide Size, 11/32" Valve Stem |
| Valve Guide Outer Diameter: | 0.5 |
| Valve Seal Type: | Metal Body Viton |
| Valve Size: | 11/32" / .546" |
| Valve Stem Outer Diameter: | 11/32 |
Application Summary
Engines w/ 0.500" OD Valve Guides and 11/32" Valve Stems
Part Type
Engine Valve Stem Oil Seal Set
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 517-8
- Product Attributes - Part Type
- Engine Valve Stem Oil Seals
- Product Attributes - Product Line
- COMP Cams Valve Seals
- Product Attributes - UPC
- 036584142898
- Product Attributes - Valve Stem Diameter (in.)
- 0.344 in.
- Product Attributes - Valve Stem Diameter (mm)
- 8.74mm
- Product Attributes - Valve Stem Seal Type
- Positive stop
- Product Attributes - Valve Stem Seal Material
- Viton®
- Product Attributes - Machine Work Required
- No
- Product Attributes - Valve Guide Diameter (in.)
- 0.500 in.
- Product Attributes - Valve Stem Seal Outside Diameter (in.)
- 0.546 in.
- Product Attributes - Quantity
- Sold as a set of 8.
- Product Attributes - Notes
- Designed for triple spring. Requires machining the top of the valve guide with a special .500 in. diameter cutter.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca517-8 |
| SFX Item ID | 4120588 |
| Supplier Item Code | 4120588 |
| Manufacturer SKU | 517-8 |
| Manufacturer UPC | 36584142898 |
Brochures
Compatibility
Engines w/ 0.500" OD Valve Guides and 11/32" Valve Stems
