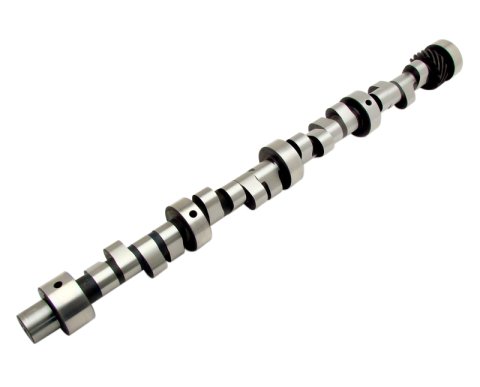

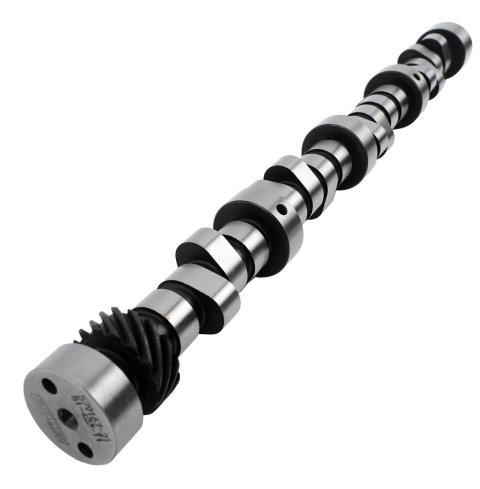

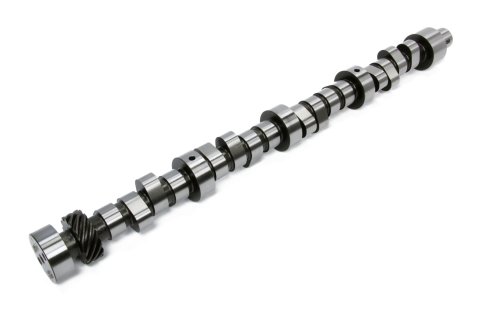

Xtreme Energy 224/230 Hydraulic Roller Cam
Product Overview
Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;
Product Details
| Advertised Exhaust Duration: | 282 |
|---|---|
| Advertised Intake Duration: | 276 |
| Amazon ASIN: | N/A |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,800-5,000 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Cam and Lifter Kit Upgrade: | CL51-423-11 |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy 224/230 Hydraulic Roller Cam for Pontiac 265-455 |
| Engine Family: | Pontiac 265-455 C.I. 8 Cylinder (1955-1981) |
| Exhaust Duration at .050 inch Lift: | 230 |
| Exhaust Valve Lift: | 0.51 |
| Grind Number: | XR276HR |
| Intake Duration at .050 Inch Lift: | 224 |
| Intake Valve Lift: | 0.502 |
| K-Kit Upgrade: | K51-423-11 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca51-423-11 |
| SK-Kit Upgrade: | SK51-423-11 |
| Title: | Xtreme Energy 224/230 Hydraulic Roller Cam for Pontiac 265-455 |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Application Summary
Pontiac 265-455 V8
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 51-423-11
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Camshafts
- Product Attributes - UPC
- 036584313007
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,800-5,600
- Product Attributes - Intake Duration at 050 inch Lift
- 224
- Product Attributes - Exhaust Duration at 050 inch Lift
- 230
- Product Attributes - Duration at 050 inch Lift
- 224 int./230 exh.
- Product Attributes - Advertised Intake Duration
- 276
- Product Attributes - Advertised Exhaust Duration
- 282
- Product Attributes - Advertised Duration
- 276 int./282 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.502 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.510 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.502 int./0.510 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- XR276HR-10
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca51-423-11 |
| SFX Item ID | 4117980 |
| Supplier Item Code | 4117980 |
| Manufacturer SKU | 51-423-11 |
| Manufacturer UPC | 36584313007 |
| Alternative References | sd455;, COM51-423-11, XR276HR-10 |
Brochures
Compatibility
Pontiac 265-455 V8
