Description

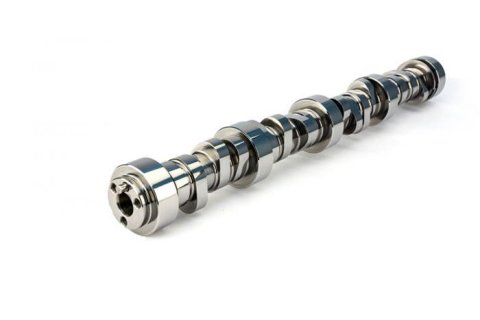

Xtreme Energy 230/236 Hydraulic Roller Cam
Product Overview
*Xtreme Energy Camshafts*
* Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
* More vacuum allows an increase in duration for improved performance and assists power brakes
* Excellent performance in street carbureted applications
* Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Details
| Amazon ASIN: | N/A |
|---|---|
| Assembly Lubricant Included: | No |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy 230/236 Hydraulic Roller Cam for Chevrolet 348-409 |
| Engine Family: | Chevrolet 348-409 c.i. 8 Cylinder (1958-1965) |
| Exhaust Duration @ .050 in.: | 236 |
| Exhaust Duration: | 290 |
| Exhaust Valve Lift(in): | 0.56 |
| Grind Number: | XE284HR-10 |
| Intake Duration @ .050 in.: | 230 |
| Intake Duration: | 284 |
| Intake Valve Lift(in): | 0.555 |
| Lifter Type: | Hydraulic Roller Retrofit |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca48-802-11 |
| RPM Range: | 1800-6200 |
| Title: | Xtreme Energy 230/236 Hydraulic Roller Cam for Chevrolet 348-409 |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 48-802-11
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Retrofit Camshafts
- Product Attributes - UPC
- 036584267850
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,800-6,200
- Product Attributes - Intake Duration at 050 inch Lift
- 230
- Product Attributes - Exhaust Duration at 050 inch Lift
- 236
- Product Attributes - Duration at 050 inch Lift
- 230 int./236 exh.
- Product Attributes - Advertised Intake Duration
- 284
- Product Attributes - Advertised Exhaust Duration
- 290
- Product Attributes - Advertised Duration
- 284 int./290 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.555 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.560 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.555 int./0.560 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Rotation
- Clockwise
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca48-802-11 |
| SFX Item ID | 4120457 |
| Supplier Item Code | 4120457 |
| Manufacturer SKU | 48-802-11 |
| Manufacturer UPC | 36584267850 |
| Alternative References | COM48-802-11, C409, XE284HR10 |
