Description

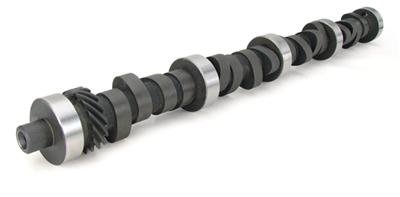

Xtreme Energy 230/236 Hydraulic Roller Cam
Product Overview
*Xtreme Energy Camshafts*
* Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
* More vacuum allows an increase in duration for improved performance and assists power brakes
* Excellent performance in street carbureted applications
* Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Details
| Advertised Exhaust Duration: | 288 |
|---|---|
| Advertised Intake Duration: | 282 |
| Amazon ASIN: | B0046ZJCO0 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2,200-5,800 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Cam and Lifter Kit Upgrade: | CL34-432-9 |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy 230/236 Hydraulic Roller Cam for Ford 429,460 |
| Engine Family: | Ford 429, 460 c.i. 8 Cylinder (1968-1995) |
| Exhaust Duration @ .050 in.: | 236 |
| Exhaust Duration at .050 inch Lift: | 236 |
| Exhaust Duration: | 288 |
| Exhaust Valve Lift(in): | 0.532 |
| Exhaust Valve Lift: | 0.532 |
| Grind Number: | XR280HR |
| Intake Duration @ .050 in.: | 230 |
| Intake Duration at .050 Inch Lift: | 230 |
| Intake Duration: | 282 |
| Intake Valve Lift(in): | 0.521 |
| Intake Valve Lift: | 0.521 |
| K-Kit Upgrade: | K34-432-9 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca34-432-9 |
| RPM Range: | 2200-7000 |
| Title: | Xtreme Energy 230/236 Hydraulic Roller Cam for Ford 429,460 |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Application Summary
Fits Ford Big Block/385 Series 429 and 460
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 34-432-9
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Retrofit Camshafts
- Product Attributes - UPC
- 036584212324
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- High performance for street cars with 2200+ stall, 9:1+ compression, headers.
- Product Attributes - Basic Operating RPM Range
- 2,200-5,800
- Product Attributes - Intake Duration at 050 inch Lift
- 230
- Product Attributes - Exhaust Duration at 050 inch Lift
- 236
- Product Attributes - Duration at 050 inch Lift
- 230 int./236 exh.
- Product Attributes - Advertised Intake Duration
- 282
- Product Attributes - Advertised Exhaust Duration
- 288
- Product Attributes - Advertised Duration
- 282 int./288 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.521 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.532 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.521 int./0.532 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- XR280HR
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca34-432-9 |
| SFX Item ID | 4119842 |
| Supplier Item Code | 4119842 |
| Manufacturer SKU | 34-432-9 |
| Manufacturer UPC | 36584212324 |
| Alternative References | f100;, f150;, f250;, e150;, e250, COM34-432-9 |
Brochures
Compatibility
Fits Ford Big Block/385 Series 429 and 460
