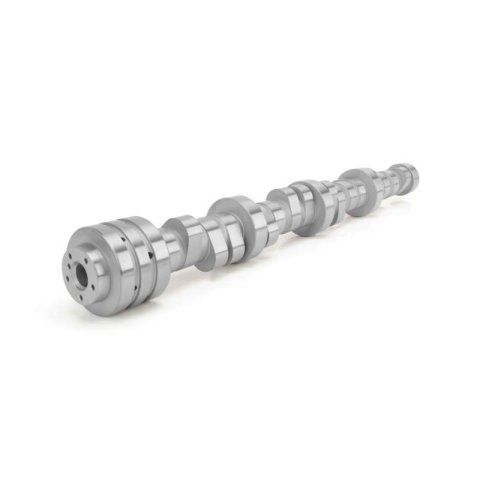

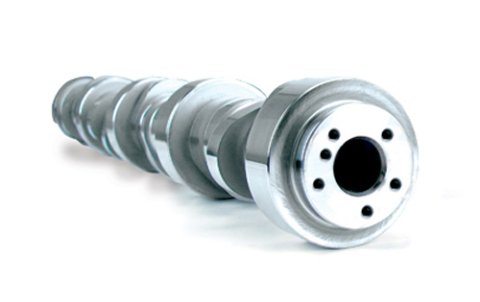

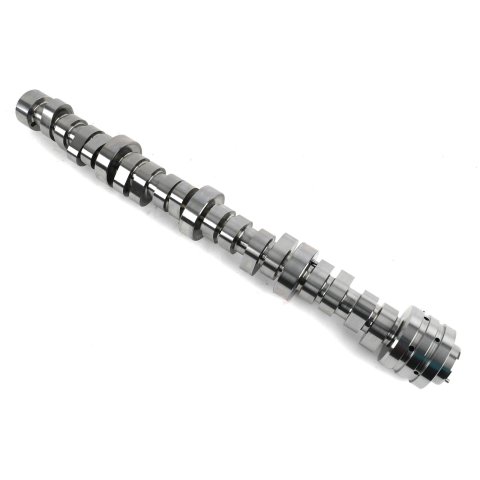

COMP Cams CamshaftDodge 6.4/6.1/5.7 Hem
COMP Cams CamshaftDodge 6.4/6.1/5.7 Hem
A$1,320.17
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
XFI 218/226 Hydraulic Roller Cam
Product Overview
*XFI Camshafts*
* Newest and quickest lobe profiles in the Xtreme family; provide a terrific increase in performance
* Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
* Work well with aftermarket cylinder heads & feature high lift
Product Details
| Advertised Exhaust Duration: | 279 |
|---|---|
| Advertised Intake Duration: | 266 |
| Amazon ASIN: | B009EQHO9Q |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,800-6,800 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Xtreme Fuel Injection |
| Description: | XFI 218/226 Hydraulic Roller Cam for Dodge 5.7/6.1L HEMI w/ VVT |
| Engine Family: | Dodge 5.7L and 6.4L HEMI w/ VVT (2010+) |
| Exhaust Duration @ .050 in.: | 226 |
| Exhaust Duration at .050 inch Lift: | 226 |
| Exhaust Duration: | 279 |
| Exhaust Valve Lift(in): | 0.605 |
| Exhaust Valve Lift: | 0.605 |
| Grind Number: | 266VVI14 |
| Intake Duration @ .050 in.: | 218 |
| Intake Duration at .050 Inch Lift: | 218 |
| Intake Duration: | 266 |
| Intake Valve Lift(in): | 0.612 |
| Intake Valve Lift: | 0.612 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 114 |
| Part Number: | cca201-424-17 |
| RPM Range: | 1800-6800 |
| Title: | XFI 218/226 Hydraulic Roller Cam for Dodge 5.7/6.1L HEMI w/ VVT |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 201-424-17
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Chrysler Hemi Phaser Camshafts
- Product Attributes - UPC
- 036584248668
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Good improvement over the factory Apache camshaft.
- Product Attributes - Basic Operating RPM Range
- 1,800-6,800
- Product Attributes - Intake Duration at 050 inch Lift
- 218
- Product Attributes - Exhaust Duration at 050 inch Lift
- 226
- Product Attributes - Duration at 050 inch Lift
- 218 int./226 exh.
- Product Attributes - Advertised Intake Duration
- 218
- Product Attributes - Advertised Exhaust Duration
- 279
- Product Attributes - Advertised Duration
- 266 int./279 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.612 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.605 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.612 int./0.605 exh.
- Product Attributes - Lobe Separation (degrees)
- 114
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- 266WI14
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits VVT engines. Requires spring kit 26918-16 with machining required.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca201-424-17 |
| SFX Item ID | 4119310 |
| Supplier Item Code | 4119310 |
| Manufacturer SKU | 201-424-17 |
| Manufacturer UPC | 36584248668 |
| Alternative References | 53022372aa, COM201-424-17, CPC201-424-17 |
