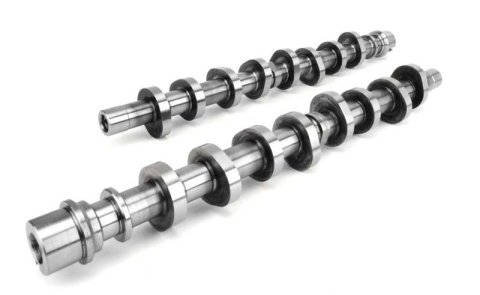

COMP Cams Camshaft Set F4.6S Tri-Power Xtreme 262HR
COMP Cams Camshaft Set F4.6S Tri-Power Xtreme 262HR
A$1,857.95
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
SOHC-Optimized combination for power and torque with acceptable fuel economy for your daily driver or highway cruiser. Programmer upgrade required.
Product Overview
*Tri-Power Xtreme Camshafts*
* Three different camshaft designs targeted to improve horsepower, torque or fuel efficiency
* By decreasing pumping losses, efficiency and performance are enhanced, regardless of camshaft selected
* Designed for factory fuel injected engines; use programmer for best mileage gains
Product Details
| Advertised Exhaust Duration: | 267 |
|---|---|
| Advertised Intake Duration: | 261 |
| Amazon ASIN: | B001G79W82 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,200-5,200 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller Finger Follower |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Tri-Power Xtreme |
| Description: | Tri-Power Xtreme 224/230 Cams for Ford 4.6/5.4L Modular 2 Valve |
| Engine Family: | Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+) |
| Exhaust Duration @ .050 in.: | 230 |
| Exhaust Duration at .050 inch Lift: | 230 |
| Exhaust Duration: | 267 |
| Exhaust Valve Lift(in): | 0.495 |
| Exhaust Valve Lift: | 0.495 |
| Grind Number: | TPX262HR-14 |
| Intake Duration @ .050 in.: | 224 |
| Intake Duration at .050 Inch Lift: | 224 |
| Intake Duration: | 261 |
| Intake Valve Lift(in): | 0.495 |
| Intake Valve Lift: | 0.495 |
| Lifter Type: | Hydraulic Roller Finger Follower |
| Lifters Included: | No |
| Lobe Separation: | 114 |
| Part Number: | cca102535 |
| RPM Range: | 1000-7000 |
| Title: | Tri-Power Xtreme 224/230 Cams for Ford 4.6/5.4L Modular 2 Valve |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 102535
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Tri-Power Xtreme Modular 2V Camshafts
- Product Attributes - UPC
- 036584127772
- Product Attributes - Cam Style
- SOHC
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Optimized combination for power and torque with acceptable fuel economy for daily driver or highway cruiser. Custom tuning required
- Product Attributes - Basic Operating RPM Range
- 1,200-5,200
- Product Attributes - Intake Duration at 050 inch Lift
- 224
- Product Attributes - Exhaust Duration at 050 inch Lift
- 230
- Product Attributes - Duration at 050 inch Lift
- 224 int./230 exh.
- Product Attributes - Advertised Intake Duration
- 261
- Product Attributes - Advertised Exhaust Duration
- 267
- Product Attributes - Advertised Duration
- 261 int./267 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.495 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.495 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.495 int./0.495 exh.
- Product Attributes - Lobe Separation (degrees)
- 114
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- TPX262HR-14
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- Fits 2V SOHC engines only. Requires custom tuning.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca102535 |
| SFX Item ID | 4118326 |
| Supplier Item Code | 4118326 |
| Manufacturer SKU | 102535 |
| Manufacturer UPC | 36584127772 |
| Alternative References | 2-valve;, sn95;, 2v;, F4.6S, 262HR |
