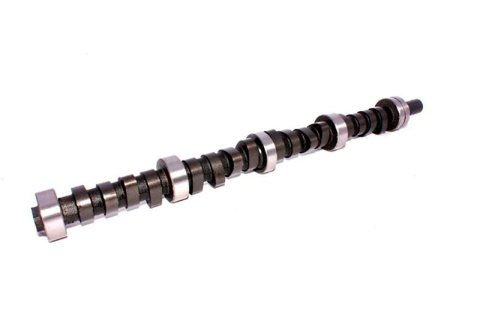

COMP Cams Camshaft A8 304S-8
COMP Cams Camshaft A8 304S-8
A$814.12
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Solid: Bracket Race and mud racing. Works best with 4500+ convertor in 390 or larger engine.
Product Overview
AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin
Product Details
| Advertised Exhaust Duration: | 320 |
|---|---|
| Advertised Intake Duration: | 304 |
| Amazon ASIN: | B000P5B4M8 |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 5,000-7,500 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Solid Flat Tappet |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Race |
| Description: | Race 274/282 Solid Flat Cam for AMC 290-401 |
| Engine Family: | American Motors 290-401 c.i. 8 Cylinder (1966-1991) |
| Exhaust Duration @ .050 in.: | 282 |
| Exhaust Duration at .050 inch Lift: | 282 |
| Exhaust Duration: | 320-4 |
| Exhaust Valve Lift(in): | 0.624 |
| Exhaust Valve Lift: | 0.624 |
| Grind Number: | 304S-8 |
| Intake Duration @ .050 in.: | 274 |
| Intake Duration at .050 Inch Lift: | 274 |
| Intake Duration: | 304-1 |
| Intake Valve Lift(in): | 0.629 |
| Intake Valve Lift: | 0.629 |
| Lifter Type: | Solid Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 108 |
| Part Number: | cca10-610-5 |
| RPM Range: | 5000-13000 |
| Title: | Race 274/282 Solid Flat Cam for AMC 290-401 |
| Usage: | Strip |
| Valve Springs Required: | Yes |
Application Summary
Fits AMC 290, 304, 343, 360, 390 and 401
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 10-610-5
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Hi-Tech Solid Racing Camshafts
- Product Attributes - UPC
- 036584033431
- Product Attributes - Cam Style
- Solid flat tappet
- Product Attributes - Camshaft Use
- Drag race
- Product Attributes - Camshaft Manufacturers Description
- Bracket race and mud racing. Works best with 5000+ converter in 390 or larger engine.
- Product Attributes - Basic Operating RPM Range
- 4,000-7,400
- Product Attributes - Intake Duration at 050 inch Lift
- 274
- Product Attributes - Exhaust Duration at 050 inch Lift
- 282
- Product Attributes - Duration at 050 inch Lift
- 274 int./282 exh.
- Product Attributes - Advertised Intake Duration
- 304
- Product Attributes - Advertised Exhaust Duration
- 320
- Product Attributes - Advertised Duration
- 304 int./320 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.629 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.624 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.629 int./0.624 exh.
- Product Attributes - Lobe Separation (degrees)
- 108
- Product Attributes - Intake Valve Lash
- 0.018 in.
- Product Attributes - Exhaust Valve Lash
- 0.020 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- 304S-8
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca10-610-5 |
| SFX Item ID | 4118345 |
| Supplier Item Code | 4118345 |
| Manufacturer SKU | 10-610-5 |
| Manufacturer UPC | 36584033431 |
| Alternative References | 304S-8 |
Brochures
Compatibility
Fits AMC 290, 304, 343, 360, 390 and 401
