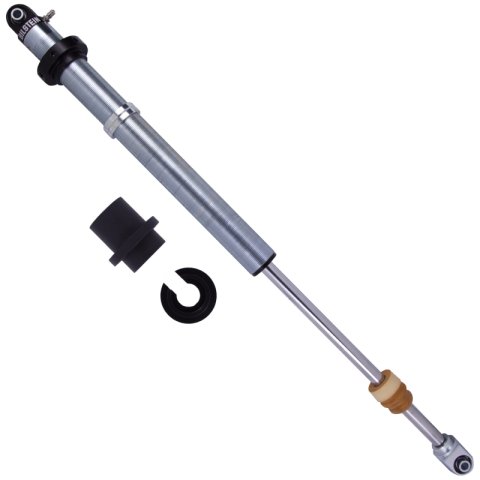

Bilstein 46mm Coil-Carrier 16in M 9200 Series Shock Absorber
Bilstein 46mm Coil-Carrier 16in M 9200 Series Shock Absorber
A$1,179.11
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Product Overview
BILSTEIN 9200 Series Bypass shocks are position sensitive and adjustable, offering 6 zones of damping control and 4 external adjusters: 2 rebound and 2 compression. Utilizing an externally adjustable bypass shock is the easiest and most effective way to tune your off-road suspension for ultimate performance.
*9200 Series Bypass Product Highlights*
* Available in 60mm, 70mm and 83mm monotubes
* 4-tube, position sensitive with adjustable rebound and compression
* Multiple stroke lengths available ranging from 8†to 18â€
* 60mm piggy back or remote reservoir
* Case hardened, centerless ground piston rod (22mm or 1 1/8â€) depending on body diameter
* Machined billet aluminum components
* 5/8†uniball mounts with 1/2†step spacers
* 3 stage high-temp seal
* Red synthetic high-temp racing oil
* Zinc plated
* Multiple valvings available
* Owner rebuildable
* Made in the USA
*9200 Series Coilover Product Highlights*
* Available in 46mm and 60mm monotubes
* Threaded body with dual-rate coilover hardware
* Multiple stroke lengths available ranging from 8†to 16â€
* Case hardened, centerless ground 22mm piston rod
* Machined billet aluminum components
* 5/8†uniball mounts with 1/2†step spacers
* 60mm remote reservoir
* 3 stage high-temp seal
* Red synthetic high-temp racing oil
* Zinc plated
* Multiple valvings available
* Owner rebuildable
* Made in the USA
*NOTE* BILSTEIN measures shock size by piston diameter. Outer body diameter is the industry standard measurement for off-road shocks.
Features and Benefits
- To Achieve The Optimum Performance
- To be used in conjunction with Bypass shocks
- 46mm monotube design
- Designed to hold the coils in place
Product Details
| Body Design: | Threaded Body (Coilover) |
|---|---|
| Body Diameter (ID): | 46mm |
| Body Diameter (OD): | 2.0 in. |
| Body Inside Diameter: | 46mm |
| Boot Included: | N/A |
| Collapsed Length (IN) Rounded: | 24 |
| Collapsed Length (IN): | 23.50 |
| Collapsed Length (MM): | 596.9 |
| Collapsed Length Rounded: | 24 in. |
| Collapsed Length: | 596.9mm |
| Compression @0.52m/s: | Custom |
| Description: | M 9200 (Coil Carrier)-Shock Absorber |
| Extended Length (IN) Rounded: | 40 |
| Extended Length (IN): | 39.50 |
| Extended Length (MM): | 1003.3 |
| Extended Length Rounded: | 40 in. |
| Extended Length: | 39.500 in. |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 0.500 in. x 1.500 in. |
| Mount Type: | Eye-to-Eye |
| Optional Reservoir Clamp: | N/A |
| Part Number: | bil33-243566 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Rebound @0.26m/s: | Custom |
| Rebound @0.52m/s: | Custom |
| Reservoir Included: | Yes |
| Reservoir: | Yes |
| Segment: | Motorsports |
| Series: | M 9200 (Coil Carrier) |
| Shock Stroke: | 16.000 in. |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Eye 0.500 in. x 1.500 in. |
| WARNING CA Proposition 65 Message: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
No Applications
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design
- Designed to hold the coils in place
- To Achieve The Optimum Performance
- To be used in conjunction with Bypass shocks
Specifications
- Product Attributes - UPC
- 651860750699
- Product Attributes - Brand
- Bilstein
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Coilover Shocks and Struts
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Product Line
- Bilstein M 9200 Coilover Series Shocks
- Product Attributes - Bushing Color
- Natural
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Bushing Material
- Spherical bearing
- Product Attributes - Hardware Included
- No
- Product Attributes - Shock Body Finish
- Zinc plated
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Body Diameter (in.)
- 1.810
- Product Attributes - Coilover Shock Type
- Non-adjustable
- Product Attributes - Shock Body Material
- Steel
- Product Attributes - Extended Length (in.)
- 39.50
- Product Attributes - Collapsed Length (in.)
- 23.50
- Product Attributes - Coilover Springs Included
- No
- Product Attributes - Manufacturer's Part Number
- 33-243566
- Product Attributes - Recommended Spring Diameter (in.)
- 2.50 in.
- Product Attributes - Adjustable Mounting Bracket Included
- No
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil33-243566 |
| SFX Item ID | 4441359 |
| Supplier Item Code | 4441359 |
| Manufacturer SKU | 33-243566 |
| Manufacturer UPC | 651860750699 |
| Alternative References | bsn-33-243566, 46mm, 16in |
