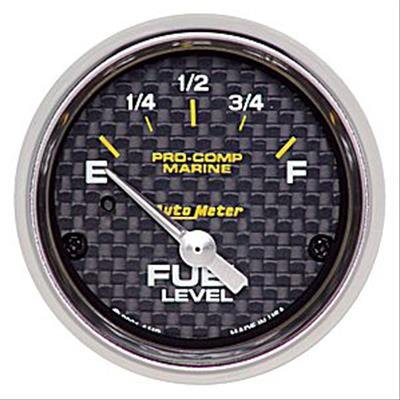

Autometer Marine Carbon Fiber 2-1/16in 240-33 Ohms Electric Fuel Level Gauge

SKU: ATM200760-40

Gauges

AM Marine Gauges...

Autometer

Autometer Marine Carbon Fiber 2-1/16in 240-33 Ohms Electric Fuel Level Gauge

SKU: ATM200760-40

Gauges

AM Marine Gauges...

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

One of the most necessary gauges on any dashboard! AutoMeter makes it easy with our patented air core meter movement with built-in extra dampening to help combat the effects fuel slosh in non-baffled tanks. Works with AutoMeter fuel sender 990345 or other aftermarket 240 Ohm empty to 33 Ohm full fuel level sending units.

Product Overview

The Auto Meter Marine line of products are designed for applications where dirt and moisture are a concern. The Marine line of products take Auto Meter’s race proven gauges and add additional front face weather sealing and UV paint protection on the dial and pointer. Available in Carbon Fiber, Ultra-Lite Chrome, Ultra-Lite Silver or White.

Features and Benefits

Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
Requires AutoMeter sending unit 990345 or equivalent 240E/33F fuel level sender
12 and 16 volt compatible, well-suited with nearly every marine electrical system
Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
12 month limited warranty
Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Boat
Traditional incandescent lighting illuminates around the perimeter of the dial

Product Details

Add-On:	990345;3298;3288;3284;3285
Bezel Color:	Polished Aluminum
Bezel Style:	Super Bezel
Cup/Hole Size (Metric):	52.4mm
Cup/Hole Size (Standard):	2-1/16in
Description:	Marine Carbon Fiber Series; Fuel Level Gauge; Air Core Movement; Incl Bulb & Socket 3220; Incl Light Covers Red 3214 & Green 3215; Incl Mounting Hardware 2225
Dial Color:	Carbon Fiber
Lens Style:	Flat, Clear
Lighting Color:	White Incandescent
Lighting Type:	Incandescent
Outer Bezel Diameter:	2-1/4in
Part Number:	atm200760-40
Pointer Color:	Silver
Range:	240 Empty / 33 Full
Size (Metric):	52.4mm
Size (Standard):	2-1/16in
Title:	2-1/16 in. FUEL LEVEL, 240-33 O, MARINE CARBON FIBER

Part Type

Fuel Level Gauge

Data: v4.2 - Upd: 2026-10-23 00:34:01

Features

12 and 16 volt compatible, well-suited with nearly every marine electrical system
12 month limited warranty
Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Boat
Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
Requires AutoMeter sending unit 990345 or equivalent 240E/33F fuel level sender
Traditional incandescent lighting illuminates around the perimeter of the dial

Specifications

Product Attributes - Brand: Auto Meter Marine
Product Attributes - Manufacturer's Part Number: 200760-40
Product Attributes - Part Type: Gauges
Product Attributes - Product Line: AutoMeter Pro-Comp Marine Carbon Fiber Analog Gauges
Product Attributes - UPC: 046074142451
Product Attributes - Gauge Type: Fuel level
Product Attributes - OEM Replacement: No
Product Attributes - Gauge Style: Analog
Product Attributes - Sending Unit: Electrical
Product Attributes - Gauge Diameter (in.): 2 1/16 in.
Product Attributes - Gauge Diameter (mm): 52mm
Product Attributes - Gauge Range: Empty-full
Product Attributes - Gauge Shape: Round
Product Attributes - Sweep: Short sweep
Product Attributes - Gauge Face Color: Carbon fiber
Product Attributes - Gauge Number Color: White
Product Attributes - Pointer Color: Silver
Product Attributes - Bezel Color: Silver
Product Attributes - Illuminated: Yes
Product Attributes - Memory Recall: No
Product Attributes - Playback: No
Product Attributes - Liquid-Filled: No
Product Attributes - Shift Light Included: No
Product Attributes - Tripometer: No
Product Attributes - Sending Unit Included: No
Product Attributes - Sender Ohm Range: 240 ohms empty, 33 ohms full
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation

Reference Information

Brand Name/s	Autometer
StreetFX SKU	atm200760-40
SFX Item ID	4078244
Supplier Item Code	4078244
Manufacturer SKU	200760-40
Manufacturer UPC	46074142451
Alternative References	AUT200760-40, 2-1/16in
