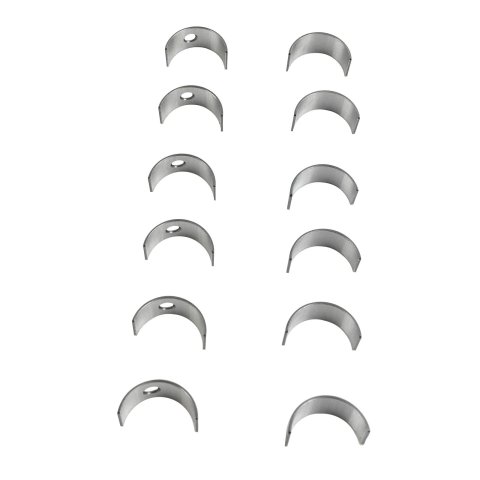

ACL Ford/Lotus 1500/1600 OHV/Twin Cam 010 Oversized High Performance Rod Bearing Set
ACL Ford/Lotus 1500/1600 OHV/Twin Cam 010 Oversized High Performance Rod Bearing Set
A$135.40
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
ACL Performance offers Race Series rod bearing sets for a wide range of vehicles. These high performance tri-metal engine bearings are designed to withstand higher RPM conditions. They feature a high-strength overlay plate with reduced thickness for improved fatigue properties. Select the crankshaft undersize and quantity recommended for your year/make and engine application.
Additional details:
* Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
* Increased crush for improved bearing retention
* Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing
* Increased eccentricity to compensate for bore distortion at high RPM and to assist in the formation of hydrodynamic oil films
* 3/4 in. grooved main bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings
* Tight consistent wall tolerances to help you maintain consistent clearances
* Enlarged ID chamfers on bearing edges (where required) to accommodate large fillet radius on performance crankshafts
Product Overview
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Connecting Rod Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
* *High strength overlay plate* with reduced thickness for improved fatigue properties
* *Hardened steel backs* on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
* *Increased crush* for improved bearing retention
* *Elimination of flash plating* on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
* *Increased eccentricity* to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
* *Tight consistent wall tolerances* to help you maintain consistent clearances.
* *Enlarged ID chamfers* on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Product Details
| Description: | Ford 1558cc 125E, 3020E Lotus Inline4 DOHC 2v |
|---|---|
| Grade Type: | Performance |
| Max Overall Length: | 0.880"(22.35mm) |
| Max Std Shaft Size: | 1.9375"(49.212mm) |
| Max Std Tunnel Size: | 2.0830"(52.908mm) |
| Max Wall at Crown: | 0.0722"(1.835mm) |
| Max Wall: | 0.072 |
| Min Std Shaft Size: | 1.9370"(49.200mm) |
| Min Std Tunnel Size: | 2.0825"(52.896mm) |
| Oil Clearance: | Standard |
| Outside Diameter: | 2.0825 |
| Part Number: | acl4B603H-10 |
| Shaft Diameter: | 1.937 |
| Size: | .10 |
| Width: | 22.35 |
Part Type
Rod Bearings
Specifications
- Product Attributes - Brand
- ACL Race Series Performance Engine Bearings
- Product Attributes - Manufacturer's Part Number
- 4B603H-10
- Product Attributes - Part Type
- Rod Bearings
- Product Attributes - Product Line
- ACL Performance Race Series Rod Bearing Sets
- Product Attributes - UPC
- 9315726341124
- Product Attributes - Bearing Usage
- Performance
- Product Attributes - Engine Crankshaft Undersize (in.)
- 0.010 in.
- Product Attributes - Engine Crankshaft Undersize (mm)
- 0.25mm
- Product Attributes - Bearing Material
- Tri-metal copper-lead alloy
- Product Attributes - Dowel Pin Hole
- No
- Product Attributes - Narrow Bearing
- No
- Product Attributes - Quantity
- Sold as a set of 4.
Reference Information
| Brand Name/s | Acl |
|---|---|
| StreetFX SKU | acl4B603H-10 |
| SFX Item ID | 4073142 |
| Supplier Item Code | 4073142 |
| Manufacturer SKU | 4B603H-10 |
| Manufacturer UPC | 9315726152188 |
| Alternative References | PEB-4B603H-10 |
