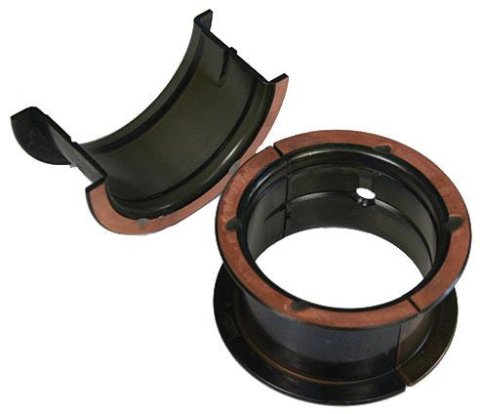

ACL Chevy V8 4.8/5.3/5.7/6.0L Race Series Standard Size Main Bearing Set

SKU: ACL5M7298HX-STD

Main Bearing Set

ACL Race Series Main Bearings...

Acl

ACL Chevy V8 4.8/5.3/5.7/6.0L Race Series Standard Size Main Bearing Set

SKU: ACL5M7298HX-STD

Main Bearing Set

ACL Race Series Main Bearings...

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Main Bearing - H-Series - Standard - Extra Oil Clearance - GM LS-Series - Kit

Product Overview

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Connecting Rod Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature: * *High strength overlay plate* with reduced thickness for improved fatigue properties * *Hardened steel backs* on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing. * *Increased crush* for improved bearing retention * *Elimination of flash plating* on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing. * *Increased eccentricity* to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films. * *3/4 grooved Main Bearings* to optimize bearing load carrying surface area and oil flow to the conrod bearings. * *Tight consistent wall tolerances* to help you maintain consistent clearances. * *Enlarged ID chamfers* on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Product Details

Description:	Holden 6.0L Gen IV L98 V8 OHV 2v
Grade Type:	Performance
Max Overall Length:	1.028" (26.10mm) w/ 7299H/HX Flange 0.805" (20.45mm) w/ 7298H/HX
Max Std Shaft Size:	2.5593" (65.007mm)
Max Std Tunnel Size:	2.7515" (69.887mm)
Max Wall at Crown:	0.0952" (2.417mm)
Max Wall:	0.0952
Min Std Shaft Size:	2.5588" (64.993mm)
Min Std Tunnel Size:	2.7509" (69.873mm)
Oil Clearance:	+ 0.001" Extra
Outside Diameter:	2.7509
Part Number:	acl5M7298HX-STD
Shaft Diameter:	2.5588
Size:	Standard
Width:	1.028

Part Type

Main Bearing Set

Data: v4.2 - Upd: 2026-10-23 04:09:54

Specifications

Description:: Holden 6.0L Gen IV L98 V8 OHV 2v
Grade Type:: Performance
Max Overall Length:: 1.028" (26.10mm) w/ 7299H/HX Flange 0.805" (20.45mm) w/ 7298H/HX
Max Std Shaft Size:: 2.5593" (65.007mm)
Max Std Tunnel Size:: 2.7515" (69.887mm)
Max Wall at Crown:: 0.0952" (2.417mm)
Max Wall:: 0.0952
Min Std Shaft Size:: 2.5588" (64.993mm)
Min Std Tunnel Size:: 2.7509" (69.873mm)
Oil Clearance:: + 0.001" Extra
Outside Diameter:: 2.7509
Part Number:: acl5M7298HX-STD
Shaft Diameter:: 2.5588
Size:: Standard
Width:: 1.028

Reference Information

Brand Name/s	Acl
StreetFX SKU	acl5M7298HX-STD
SFX Item ID	4072790
Supplier Item Code	4072790
Manufacturer SKU	5M7298HX-STD
Manufacturer UPC	9315726152706
Alternative References	peb-5m7298hx-std, AEB5M7298HX-STD, 4.8/5.3/5.7/6.0L
